Mechanical installation
Mounting the device with spacers
Operating Instructions – MOVIMOT
®
flexible
39
4.7.2 Design MMF3.

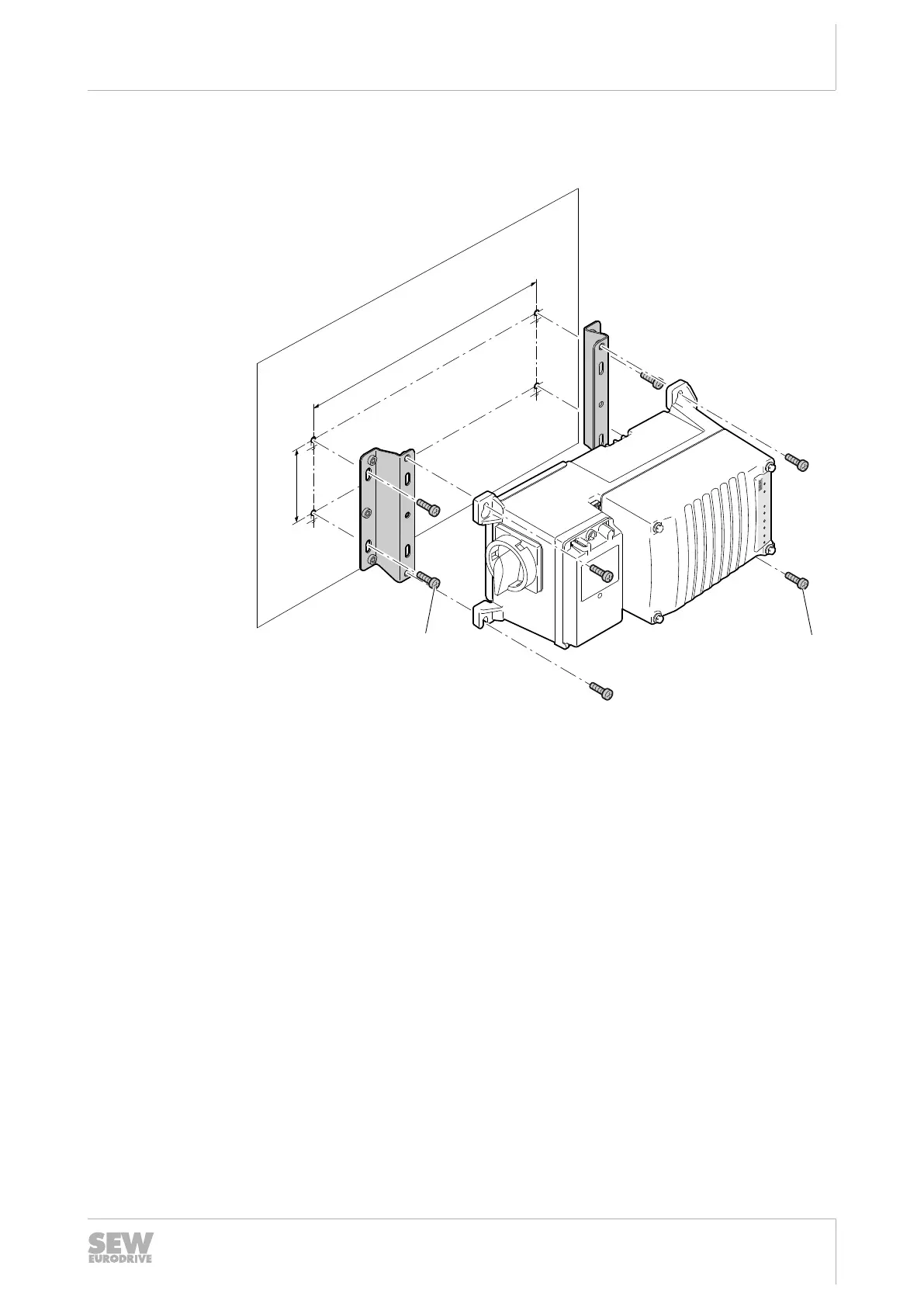

The following figure shows the mounting dimensions for the device with spacers:
100
360
M6
M6
[1]
[2]
31263214603
[1] Spacers (stainless steel)
(available for delivery from SEW‑EURODRIVE, part number: 28266129,
Scope of delivery: 2 spacers, 4 hex head screws M6 × 20,
stainless steel, torque: 3.3Nm)
[2] Hex head screw 4 × M6
29129451/EN – 12/2019
