5
Electrical installation
Installation planning taking EMC aspects into account
Operating Instructions – MOVIMOT
®
flexible
46
Design MMF1.

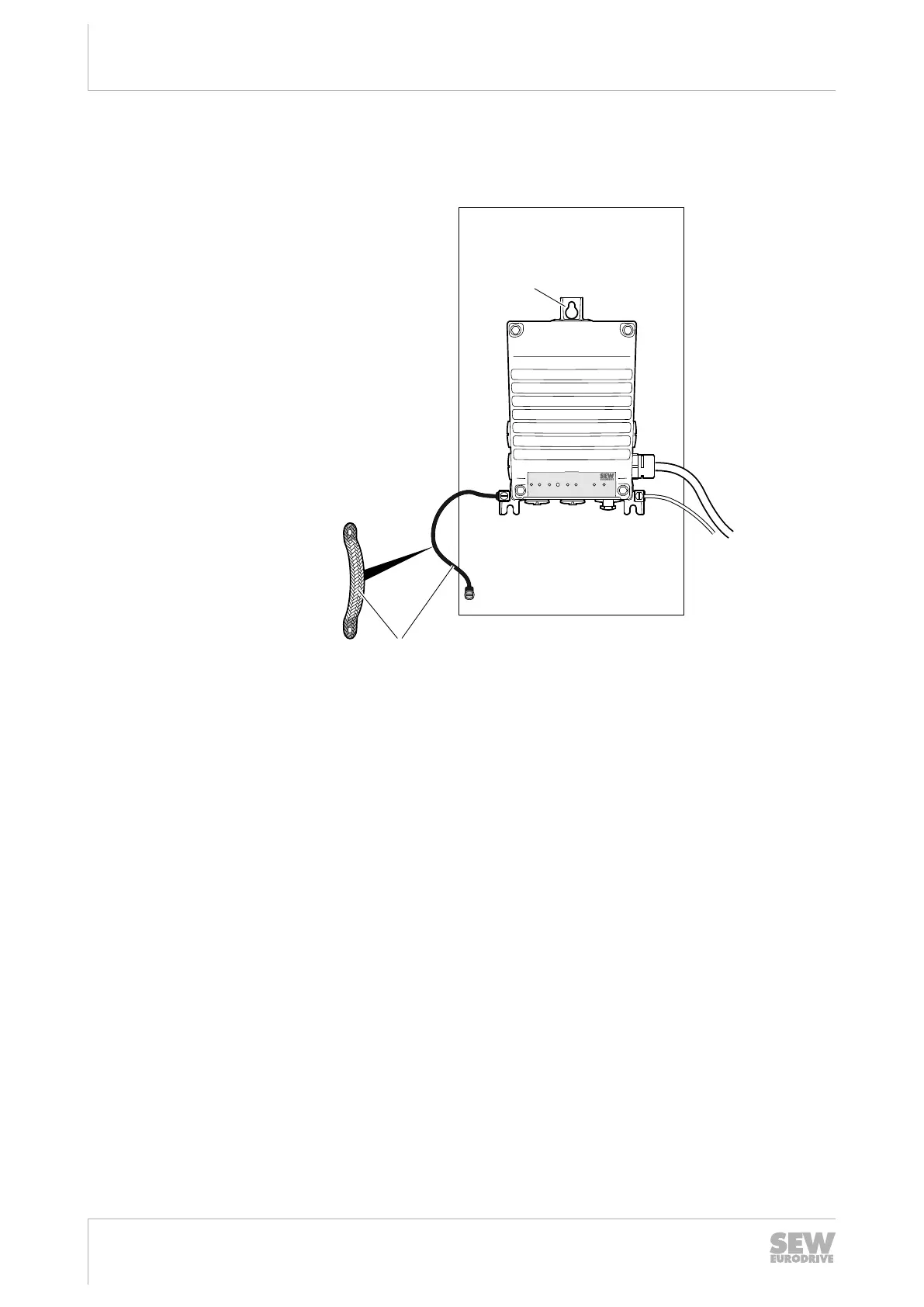

The following figure shows a connection over a wide surface area between the mount-
ing plate and the device:
30583362571
[1] Conductive connection over a wide surface between the decentralized frequency
inverter and the mounting plate, in case the entire contact surface is conductive
(e.g. unpainted).
[2] Second PE conductor via separate terminals
[3] PE conductor in the supply system cable
[4] EMC-compliant equipotential bonding, for example using a ground strap (HF litz
wire). The contact surfaces must be conductive (free of paint).
29129451/EN – 12/2019
