5
Electrical installation
Installation instructions
Operating Instructions – MOVIMOT
®
flexible
54
5.3.10 Notes on PE connection
WARNING
Electric shock due to incorrect connection of PE.
Severe or fatal injuries.
The permitted tightening torque for the screw is 2.0to2.4Nm.
Observe the following notes regarding PE connection.

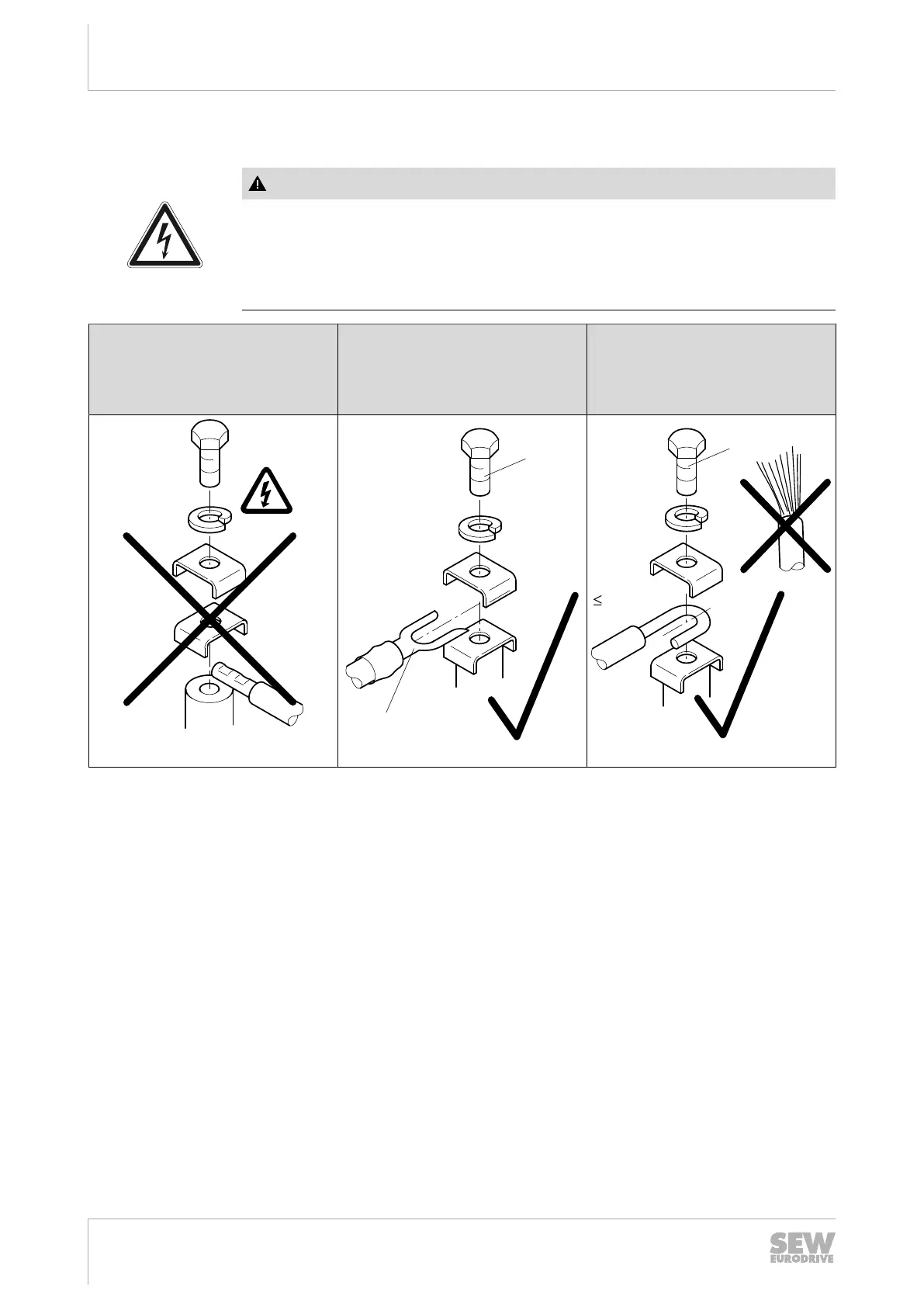

Impermissible assembly Recommendation:
Assembly with cable lug
1)
Permitted for all cross sections
Assembly with solid connecting
wire
1)
Permitted for cross sections up
to max. 2.5mm
2
[1]
M5
9007201632429067
2.5 mm²
M5
9007201632413579
1) Use the specified material for the assembly that is included in the accessory bag.
[1] Forked cable lug suitable for M5 PE screws
29129451/EN – 12/2019
