Electrical installation
Cable routing and cable shielding
Operating Instructions – MOVIMOT
®
flexible
69
Motor connection for motors without digital interface
(Connection unit with /DI option)

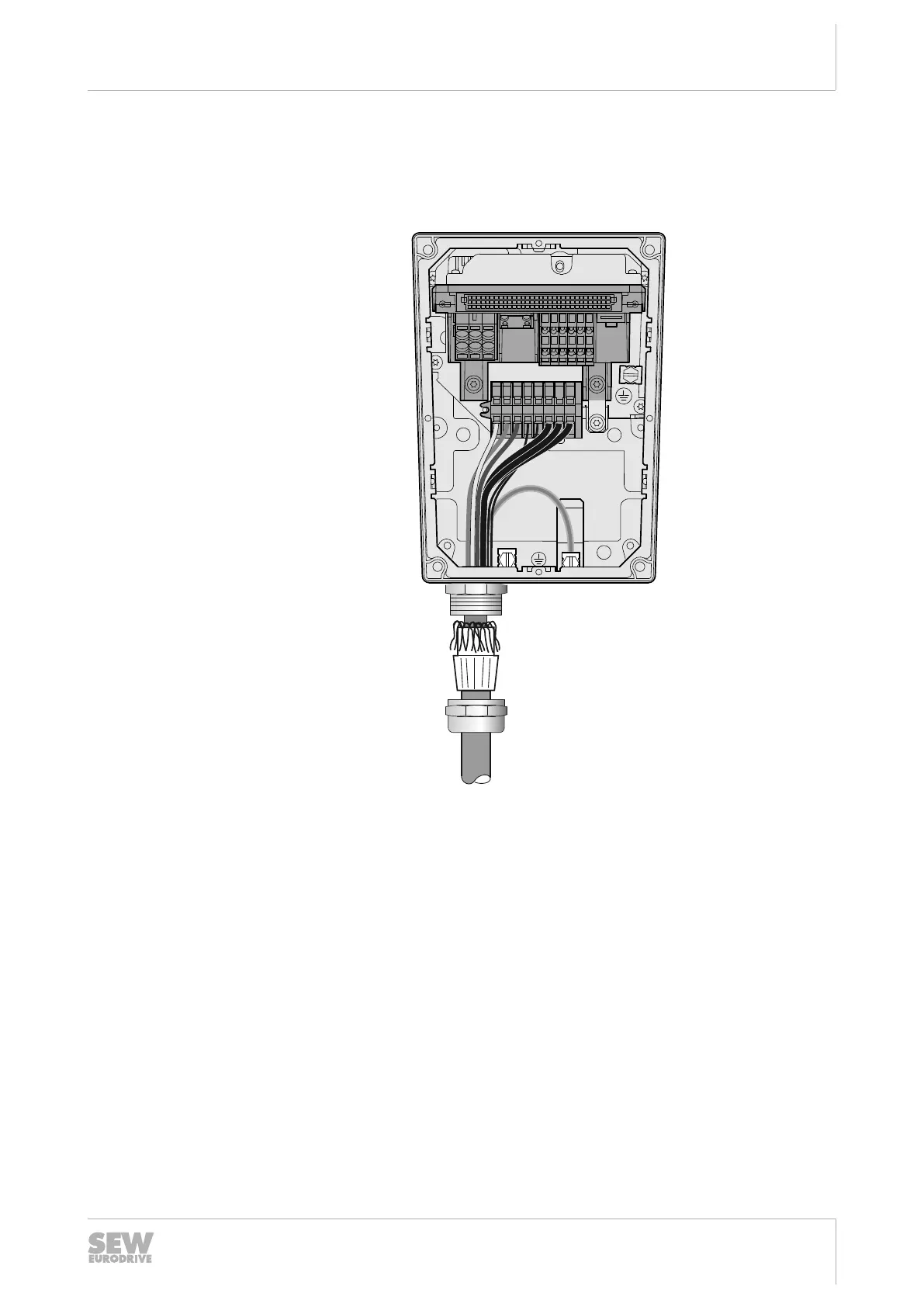

The following figure shows the motor connection with hybrid cable for motors without
digital interface:
D C B A1 T2 U V W
[1]
30566940171
[1] Motor connection for motors without digital interface
