Electrical installation
Plug connectors
Operating Instructions – MOVIMOT
®
flexible
83
5.10.5 Plug connector positions at the electronics cover

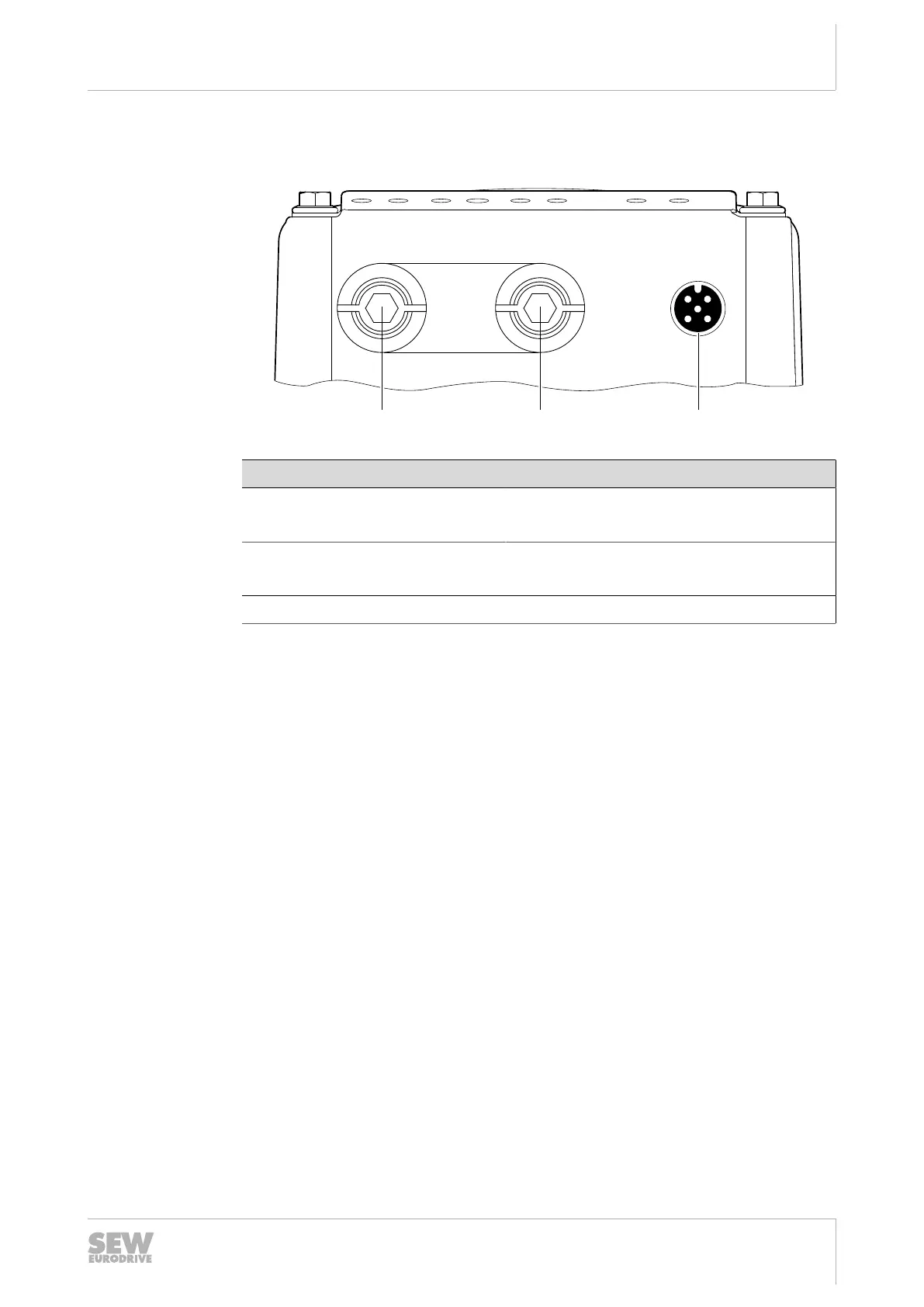

The following figure shows the positions of the potentiometers and plug connectors:
f1 f2
f1 f2
X5231
9007228262316171
Designation Function
f1 Potentiometer f1
(underneath the screw plug)
f2 Potentiometer f2
(underneath the screw plug)
X5231 Analog input
29129451/EN – 12/2019
