RIGGING PROCESS USING SGM OMEGA BRACKETS
Start the rigging process by blocking the lower working area, and make sure the work is performed from a stable
platform.
1. Check that the clamp/bracket is undamaged and can bear at least 10 times the weight of the fixture. Check
that the structure can bear at least 10 times the weight of all installed fixtures, lamps, cables etc.
2. Bolt the clamp/bracket securely to the omega bracket with a M12/ ½” bolt (min. grade 8.8) and a lock nut.
3. Align the omega bracket(s) with two 1/4 turns of the Q-8 base. For standard Omega Bracket, insert the fasten-
ers into the Q-8 base bracket, and turn both levers a full 1/4-turn clockwise to lock.
4. Working from a stable platform, hang the fixture on a truss or other structure. Tighten the clamp/bracket.

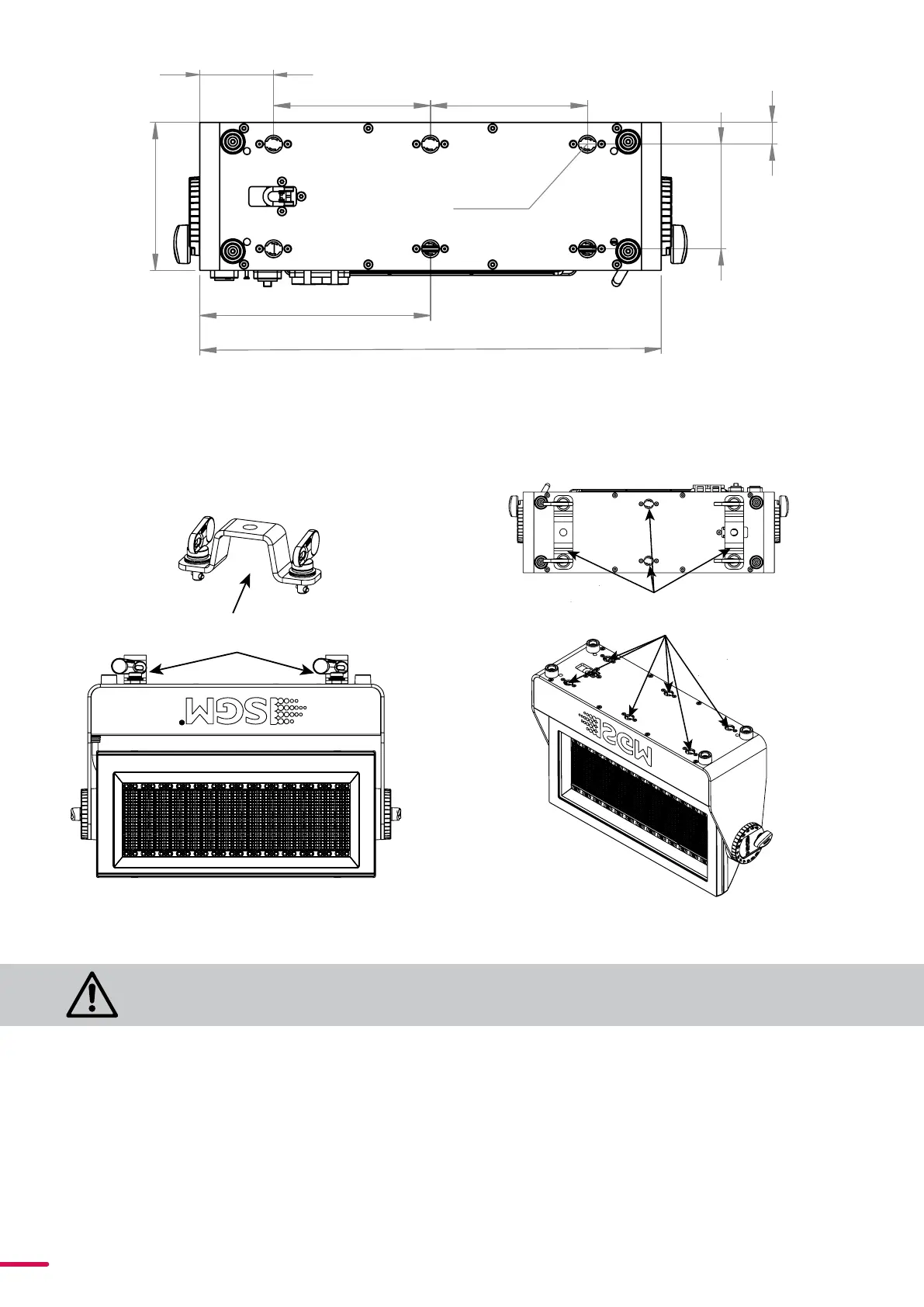

Figure 3.1 : Omega bracket attachment Figure 3.2 : Base with Omega brackets
Figure 2: Dimensions for base locking points
WARNING! ALWAYS USE MIN. 2 OMEGA BRACKETS WHEN RIGGING THE FIXTURE.
