FILTER FRAMES
The Q-8 features various optional magnetic, holographic fil-
ter frames such as elliptical diffusers.
There are four filter frame choices available from SGM:
• wide angle
• medium angle
• elliptical vertical wide angle
• elliptical horizontal wide angle
To install them, it is only required to position the filter frame
in front of the light, and it will quickly snap into place.
The frames are fitted with a safety wire to secure the frame
to the handle of the Q-8.
Filter frames and barndoors can both be mounted and work
together on the same fixture.
PLEASE NOTE! THE FILTER FRAMES ARE NOT INTENDED
FOR PERMANENT OUTDOOR INSTALLATIONS.
Figure 26: Filter frame
The Q-8 supports two different types of optional anti-glare
shields:
• Full anti-glare shield - covers the full fixture’s open-
ing.
• Half anti-glare shield - covers half of the fixture’s
opening.
Using the anti-glare shields will remove any unwanted glare
and reflections.
The anti-glare shields are easily mounted by removing the
two tilt lock bolts, one on each side of the fixture. Refit the
anti-glare shield in position and screw both tilt locks bolts
again.

FOR BOTH PERMANENT OUTDOOR AND INDOOR INSTAL
LATIONS.
ANTIGLARE SHIELDS

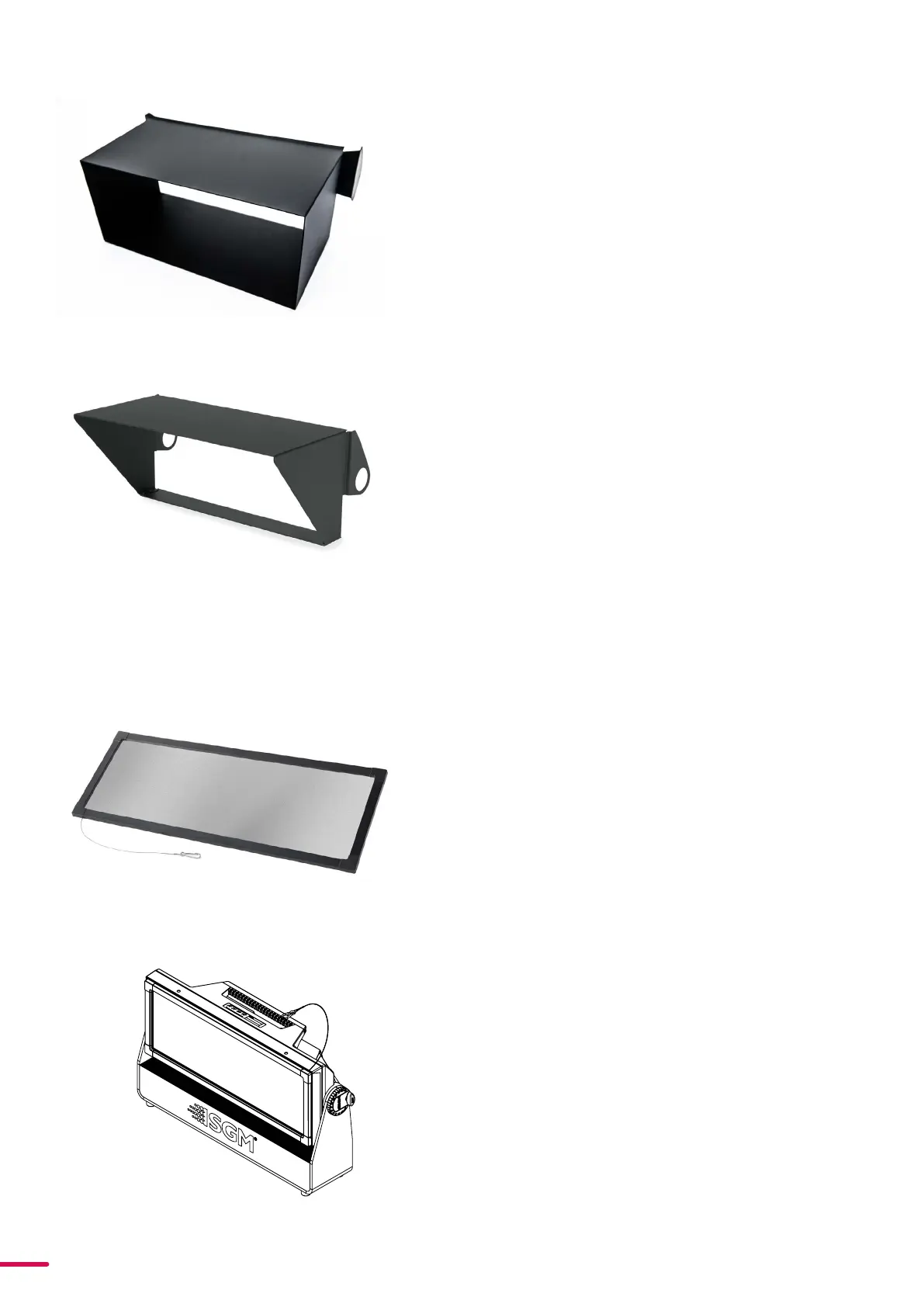

Figure 24 : Full anti-glare shields
Figure 25 : Half anti-glare shields
