Product Version 1.0 | Revision D | Released 2022-06-20
MOUNTING
All SGM POI fixtures have M10 size attachment points to mount the supplied brackets or directly to a structure.
The POI wash fixture may be installed in any orientation and it might take up to two brackets per fixture. Depending
on the structure, please use appropriate and secure methods for mounting the Omega brackets.
BRACKETS
There are four bracket choices available from SGM:
Flat bracket
Omega bracket
Wall mount bracket
Universal bracket

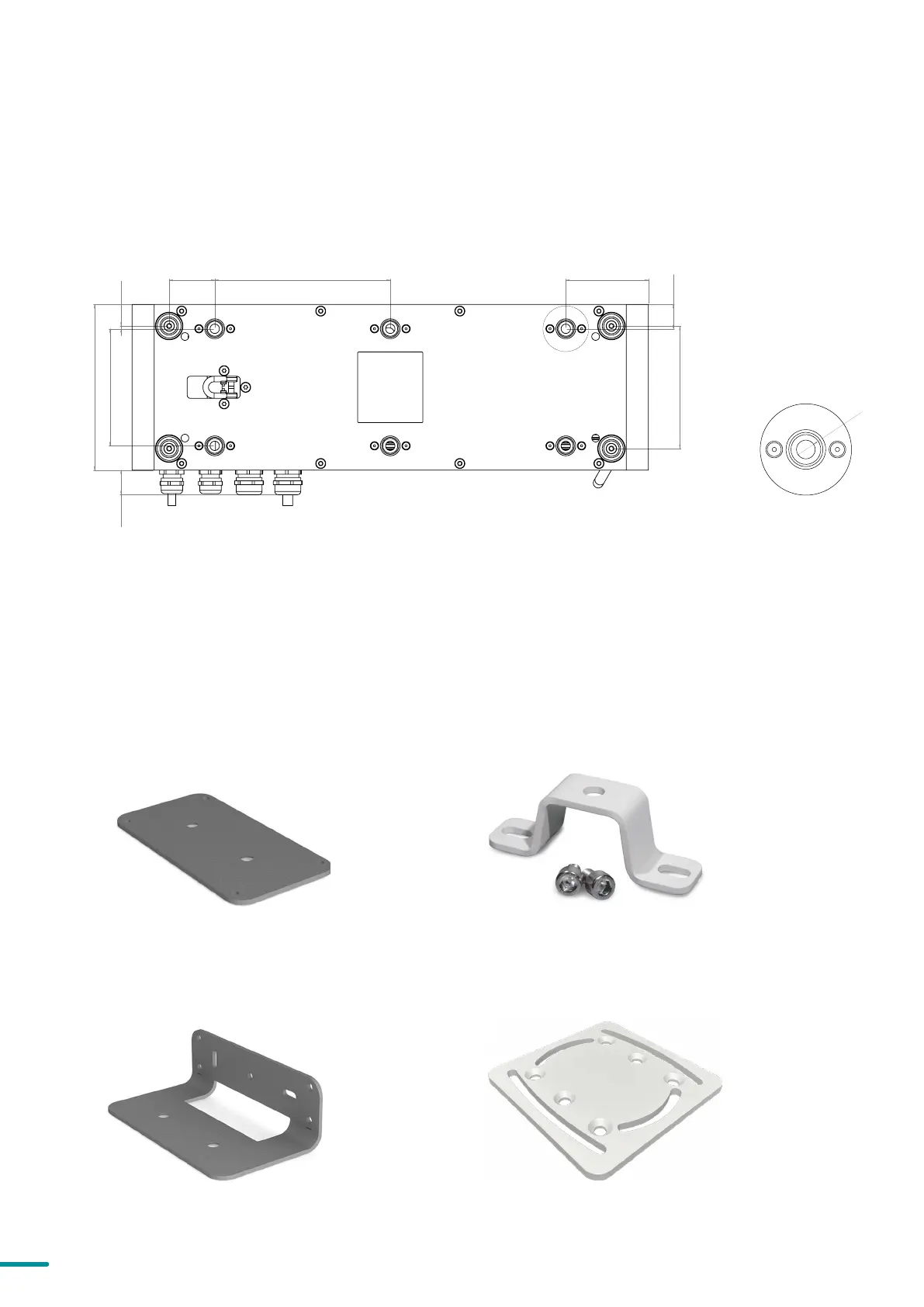

Figure 12: POI base with dimensions
15mm
0,591in
25mm
0,984in
467,60mm
18,409in
400,60mm
15,772in
106mm
4,173in
6,260in
111mm
4,370in
1,626in
2,50mm
0,098in
2,945in
22mm
0,866in
5,906in
22,25mm
0,876in
A
DETAIL A
SCALE 2 : 1
