SGM Q8 - Standard Fixture Installation; Identification and Terminology

8
Product Version 1.0 | Revision D | Released 2022-06-20
INSTALLATION STANDARD FIXTURE
Illustrations might vary from received products. This is subject to change without notice.

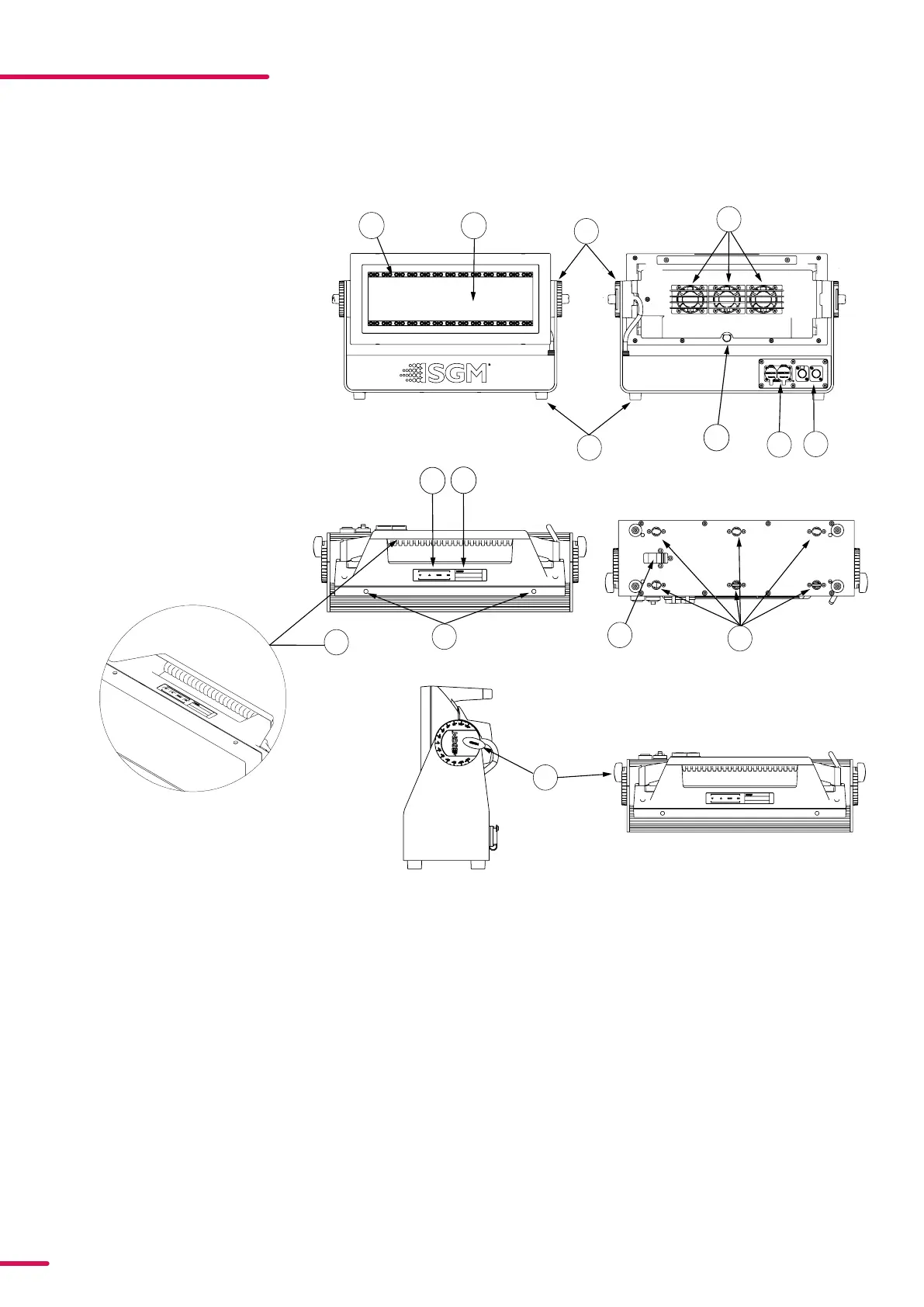

IDENTIFICATION AND TERMINOLOGY
C
A
B
A: Strobe blinders
B: RGBW section
C: Tilt Lock
D: Cooling Fans
E:
Control Panel (POI n/a)
F: OLED Display (POI n/a)
G: Rubber feet
H: GORE-TEX Membrane
I: Power in and out
J: DMX in and out
K: Handle
L: Barndoors attachment points (x2)
M: Safety wire attachment point
N: Holes for Omega brackets / M-10 screws (x6)
D
J
I
M
N
H
E
F
K
L
G
B
