22
Product Version 1.0 | Revision D | Released 2022-06-20
The POI fixture includes a spanner with a magnet, which
function is to establish connection between the fixture
and the wireless transmitter.
The spanner also has two types of pig-nose keys used for
tilt adjustment in POI fixtures. Depending on the type of
fixture, either use the large or the small pig-nose keys.
The fixture can be tilted in any orientation. To adjust the
tilt angle in POI fixtures:
• Loosen the two tilt lock knobs (one on each side)
by turning them counter-clockwise using the
small pig-nose key. Knobs are loosened by turn-
ing counter-clockwise.
• Tilt the fixture to the angle desired and hold it.
• Lock the position by tightening the tilt lock knobs
clockwise with the same pig-nose key.
CAUTION!
ALWAYS LEAVE A FIXTURE TO COOL OFF FOR 15 MINUTES AFTER OPERATION BEFORE
HANDLING.

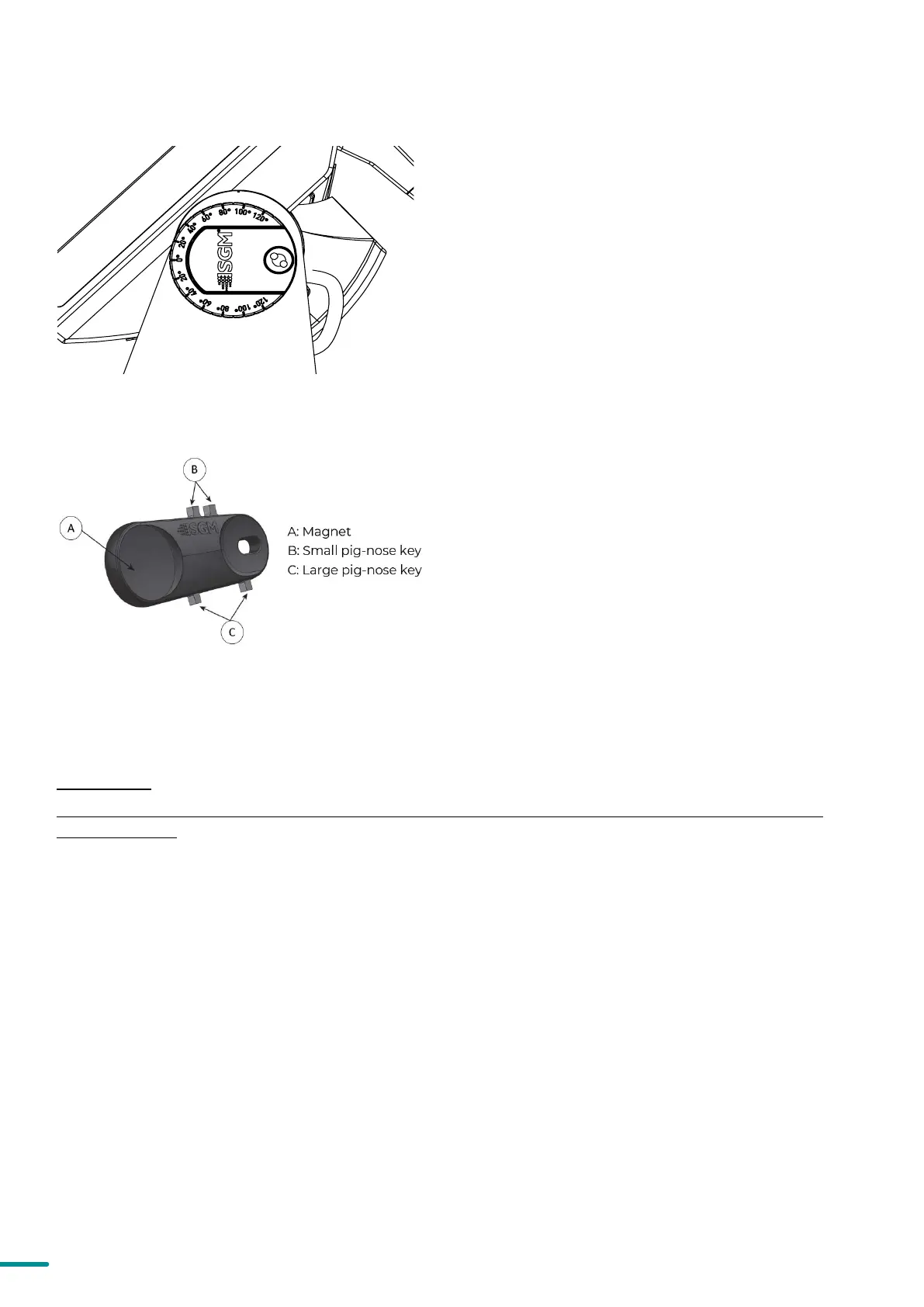

POI TILT LOCK
Figure 13: P-6 POI Tilt lock
Figure 14: POI Spanner
