INVERTER UNIT or X
CONT is abnormal.
- -> Replace it.
NO
YES
heck filamen
current at CP7 (IFV) on
X CONT.
Abnormal
Normal
X CONT or NEXSC is
abnormal.
---> Replace it.
Replace Fuse.
There may be short circuit
in any place.Check below.
I. C and CL
(Filament and Filament trans)
2.
X,Y,Z
3.
MUX CHARGE
04A
4.INVERTER UNIT
5. Collimator lump
YES
NO
High voltage cable may be poorly contacted.
Refer to "Appendix G High Voltage Cable
Connection Procedure" in Installation
Manual, and connect it again. Exchange +
and - sides of high voltage cable.
Same error occurs again.
Filament is
broken.
Replace X-ray tube.
High voltage (filament)
transformer may be
defective.
10

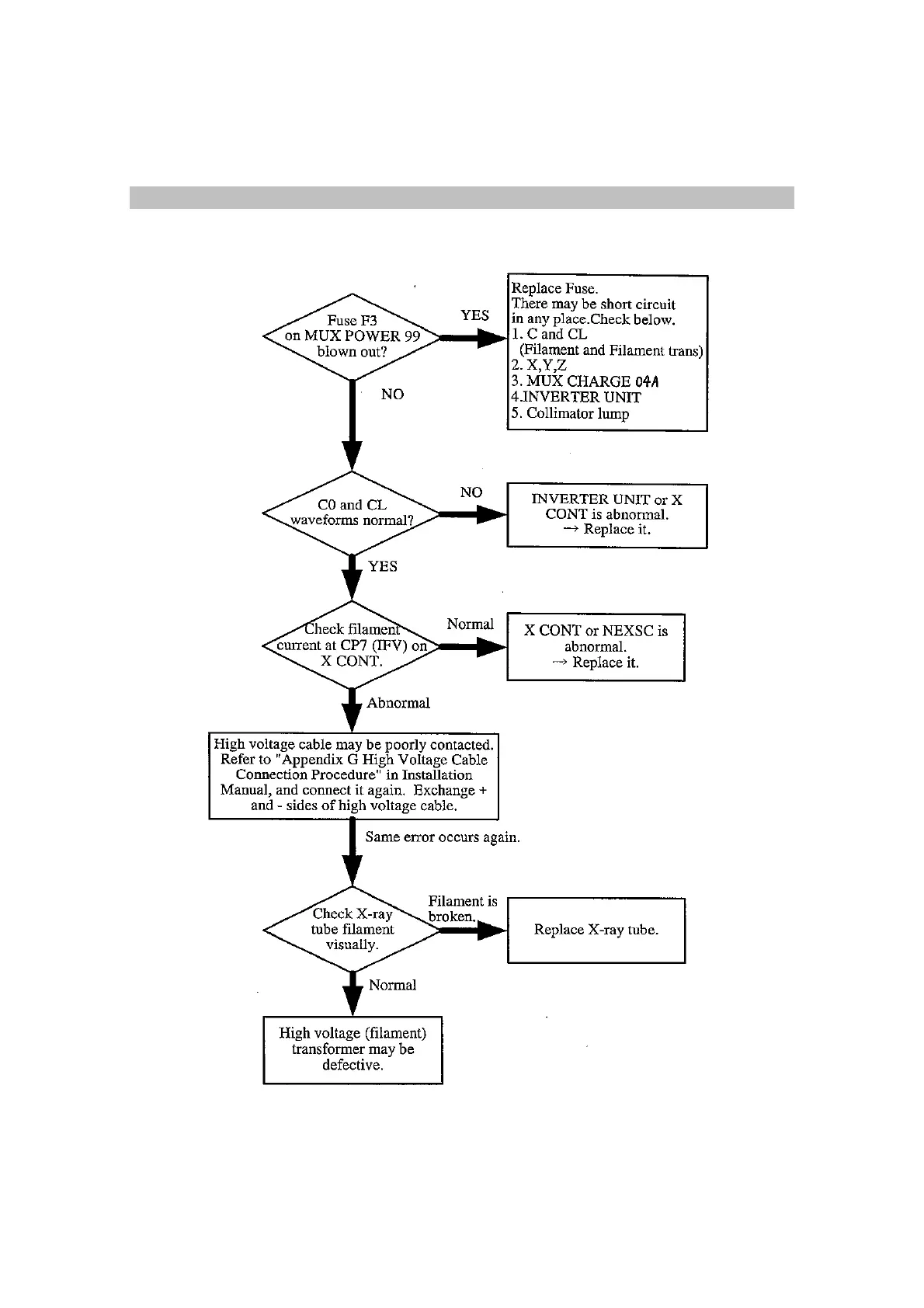

7-2.12 F33 (NO IF)
The measured filament current is approximately 1 A or less .
(Detected by the software at each 800ms when prep. and at each 400ms when ready up)
