６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ３
６-１-３
How to remove the Top Cover
1. Turn the X-ray tube 180 degree around the X-ray tube stand. And move the X-ray
tube to the lowest position.
Turn off the key switch and the main breaker.
2. Unscrews the three screws as shown in Fig. 6-4.
3. Unscrews the three screws on the Top cover
4. Pull up the front part of the top cover (Fig. 6-5).

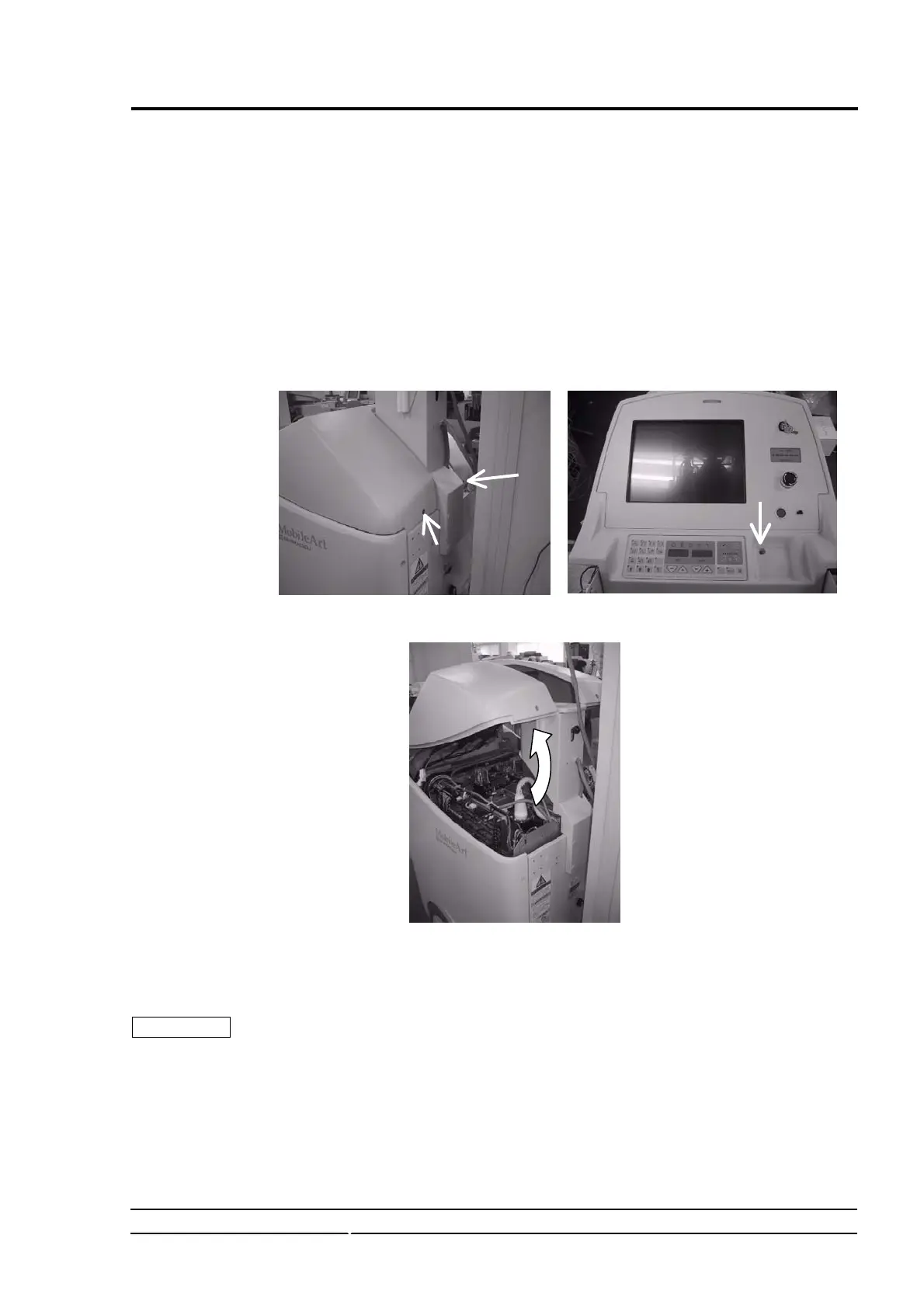

Fig. 6-4 Screw clamp positions of the top cover.
Fig. 6-5 Screw clamp positions of the top cover.
CAUTION
The top cover and the main unit are connected with the cables.
Be careful to remove the top cover.
