６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - １８
REFERENCE
The following kit is offered as high voltage cable repair parts. Use it upon necessity.
In stock [ in each office / more than one ].
511-15061-13: Mini plug maintenance kit
Silicon rubber jacket, silicon washer and silicon oil (5 each)
ⅰ Make sure that the inside of the socket in the X-ray tube unit is not dirty.
ⅱ Make sure that the plug and the ring nut are not dirty.
(For the name of each part, refer to Fig. 6-31.)
ⅲ Let the ring flange go through the ring nut.
ⅳ Apply silicon oil on the silicon rubber jacket and the silicon washer.
ⅴ Fit the silicon washer into the tip of the plug.
ⅵ Put the plug into the socket. When the plug tip reaches the bottom of the socket, turn the plug to find the position
in which the plug is fitted into the key way, then push the plug.
ⅶ Tighten the ring nut with hand.
ⅷ Tighten the rotation stopper screw so that the ring nut does not rotate.

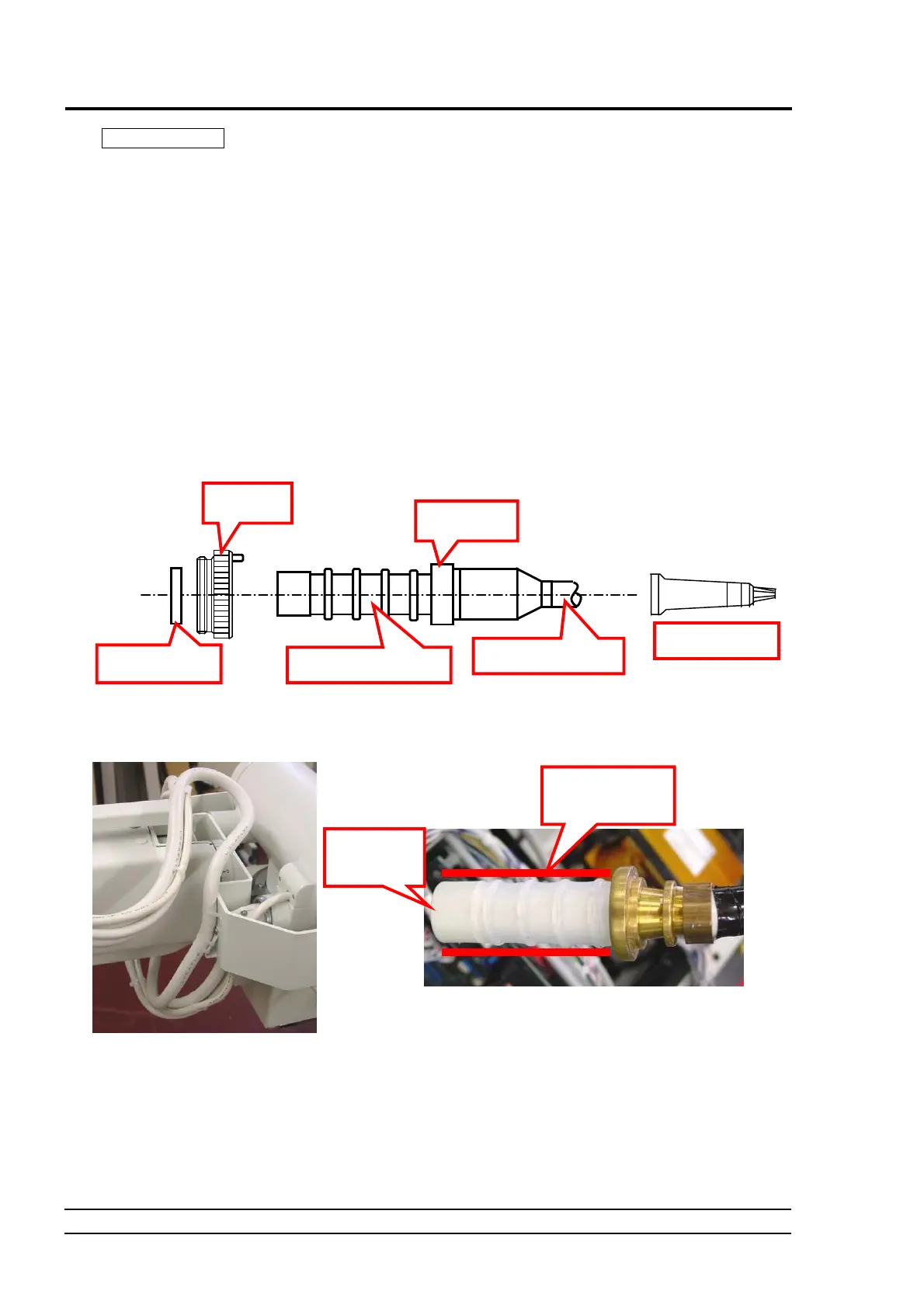

Fig. 6-31 High Voltage Plug
Fig. 6-32 High Voltage Plug (Oil Application Position)
Fig. 6-33 Cable Treatment (Reference Drawing)
６-３-２ Adjustment after replacement of X-ray tube
After replacing the X-ray tube, perform aging in accordance with “I Aging” in 4-1-6.
Then, adjust the FVR (preset value of filament current) in accordance with “6.4 Adjustment of Tube Current”.
Silicon washer
High voltage cable
Ring flange
Silicon rubber jacket
Ring nut
Silicon oil
Apply oil on thi
silicon rubber.
ot apply t
a pin head.
