４ INSTALLATION AND MAINTENANCE/INSPECTION
ＭＵＸ-１００ SERVICE MANUAL ４ - ３
４-2-２ Unpacking
At first, confirm that the following items are contained in the package.
Name Name P/N Q’ty Remarks
MUX-100D(CE) 503-61000-02 1 MUX main
unit
MUX-100D(ETL) 503-61000-03 1
Arm cover
503-51342
503-51344
1 Mounting screws are provided
on arm in main unit.
Repair parts 502-21566
037-61103
1
1
46 pieces of caps
(5 spare caps are included.)
Caps
Operation manual
M503-E017
1
Components
Installation manual
M503-E320
1
After removing packing materials, set to ON the main breaker (Refer to “1-4 Name of Each Part”.), then set to ON the
key switch (Refer to “1-4 Name of Each Part”.) to turn on the power of the system.
After that, using the slope pallet packed together, let the system travel and come down from the slope pallet. Then,
move the system to a position in which a power outlet is provided and X-ray exposure is possible.
NOTE
If you are not familiar with traveling of the system, let the system travel at a low speed with rigid care,
then come it down from the pallet.

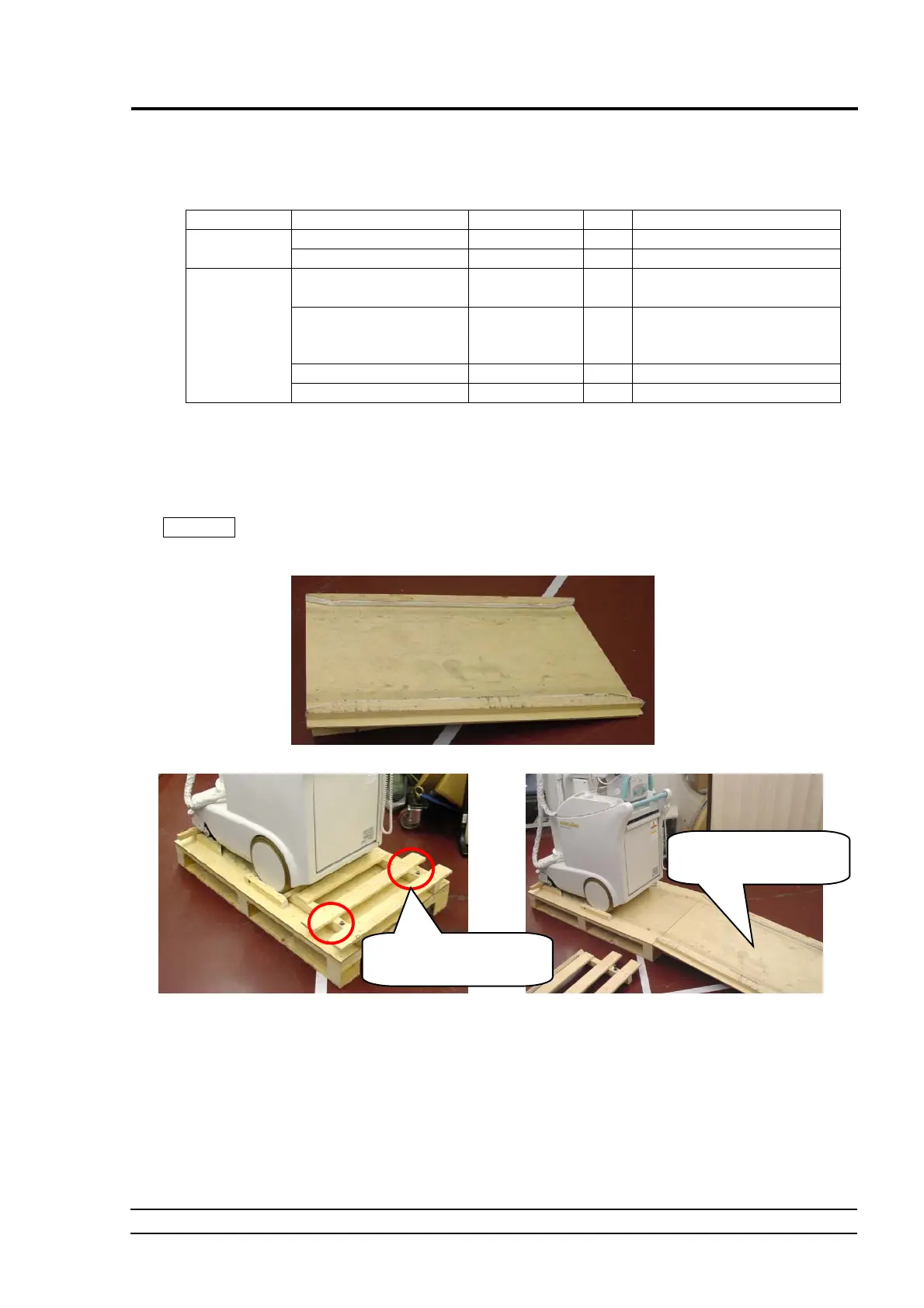

Fig. 4-2 Slope Pallet & how to use
Remove the bolts here, an
remove the wheel presser.
Set up the slope pallet i
this way.
To Next Page
