６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ４０
６-１5
Replacement of PC for CXDI-50G ･･･････････････････････････････････････････････････････････････････
Replace the PC by using the following procedure.
1. Turn OFF the key switch and OFF the main breaker as well.
2. Remove FPD, FPD box and the right side cover. (Refer to 6-1-2.)
3. Disconnect the cables which are connected to the PC.
4. Remove the fixing plate for the PC. (This fixing plate is just pressing and fix the PC with the rubber
sheet on it.)
5. Remove and replace the PC to the new one.
6. Connect the cables to the PC, then turn ON the key switch and turn ON DR system.
7. Press Line ON switch on the left side of PC, then confirm that PC turns ON. (You need to press this
Line ON switch once after replacement of PC. Otherwise, the PC will never be able to turn ON.)
8. Perform each setting for CXDI-50G as below referring to “4-2-9 Installing CXDI-50G” and “CXDI-50G
Service Manual” .
(1)Network Settings
(2)Linearity check of Transfer Image Density.
(3)Operation Unit Gamma correction.
(4)FD Backup of data that sets backup when it is set.
(5)Calibration
(6)Self Test
9. Attach FPD, FPD box and the right side cover again.

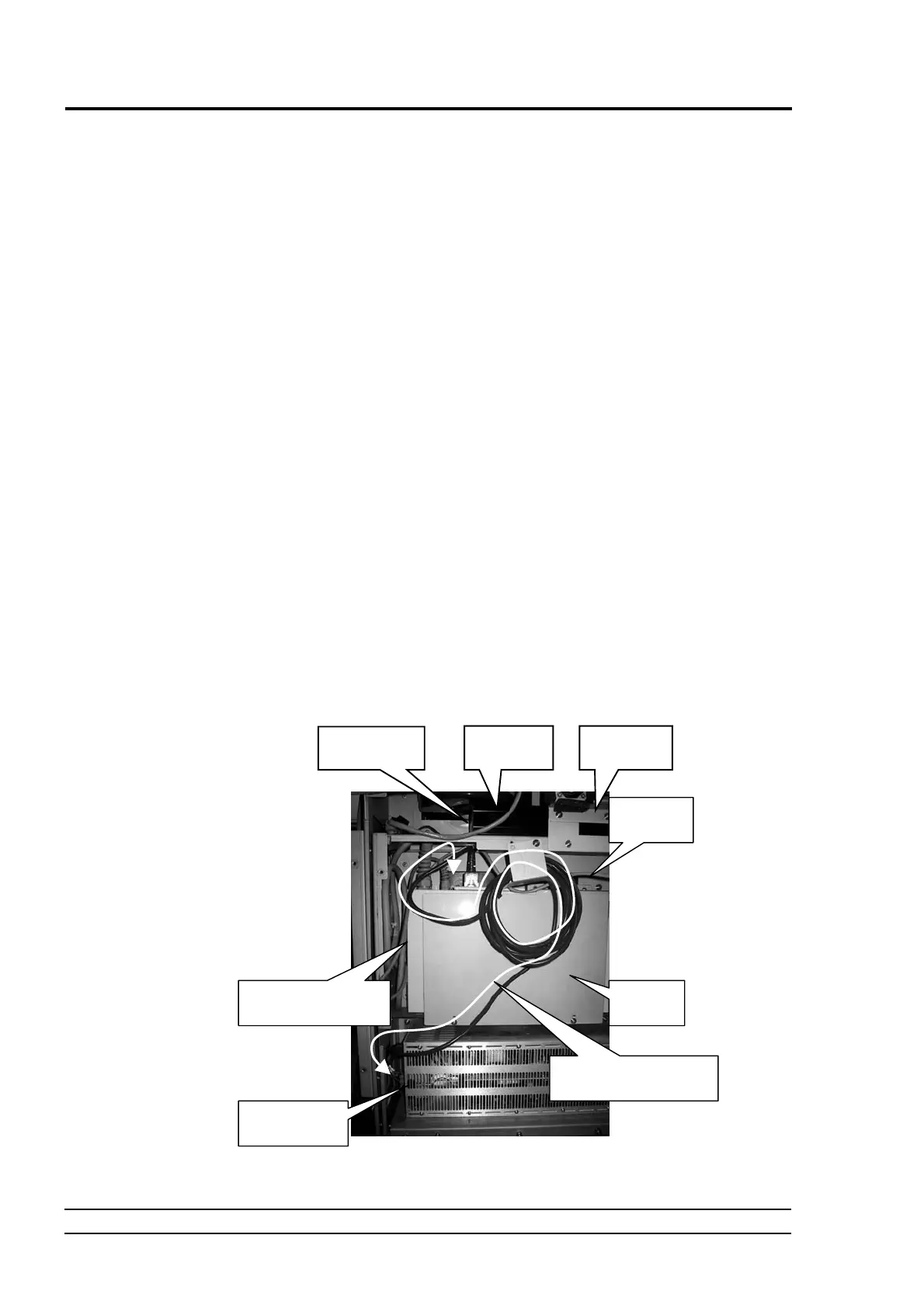

Fig. 6-61 How to replace the PC
Power supply cable for
CXDI-50G
Power Bo
Fixture
Power Box for
CXDI-50G
DC/AC
converter
Power Box
Mount Plate
PC for
CXDI-50
Line ON
Switch on PC
Fixing Plate
for PC
To Next Page
