６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ３９

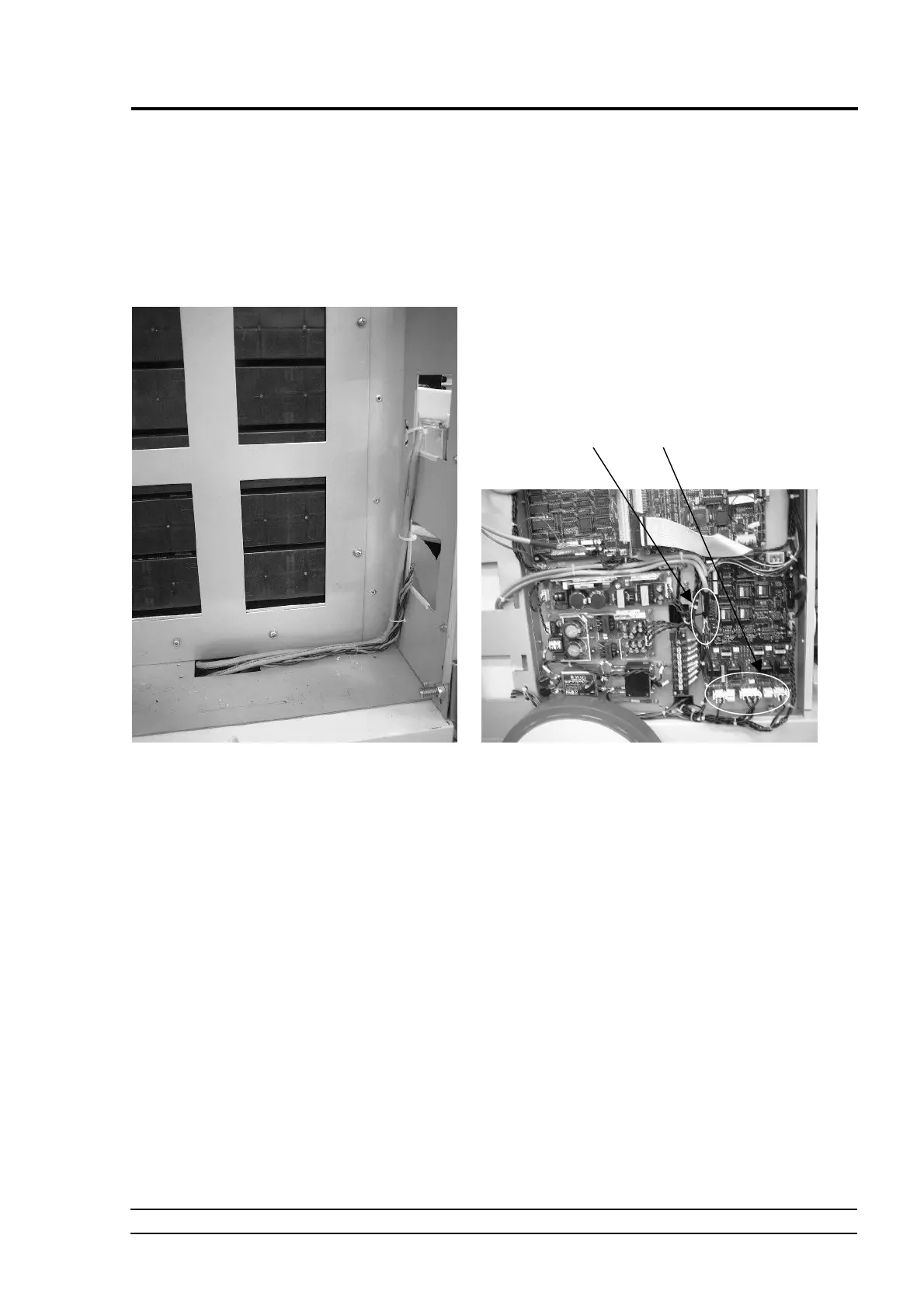

14. Pass the cable through the motor mounting hole, apply wiring as shown in Fig. 6-60, and connect the wires to the
MU DRIVER-2 PCB.
<Notes> 1. Check that the ground wire and the connectors have been securely connected.
2. Before mounting the motor, turn on the power supply (also the main breaker) to check the motor operation by
slightly rotating the handle. (See the following descriptions.)
Fig. 6-60
15. Mount the motor.
<Notes> 1. Mount the motor so that the cutting lack of a semicircle type of the motor
mounting part may turn forward of the device.
2. When you mount the motor, be sure to apply LOCTITE to prevent
loosening of bolts.
3. Be careful not to allow cables to be caught in between edges of the right and the left motor.
16. Mount the wheels and the wheel covers, and detach the wood blocks.
17. Fix the cables with the cable cover, and mount the cassette BOX.
18. Mount the side covers.
19. Check the motor operation again.
<How to check the Motor Operation>
Turn on the power supply, and check the following points:
1. The rotation speeds of the right and the left motors will vary according to the operation force of the handle for traveling.
2. The input from the right and the left handles will coincide with the rotational direction of wheels.
3. The brake will be properly activated.
If you find any unusual situation in the operation, be sure to check if the connector has been plugged in correctly.
CN6
CN14
1
To Next Page
