６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ３８
13. As shown in Fig. 6-59, disconnect the ground wire, cut the wiring band, and take out the motor.

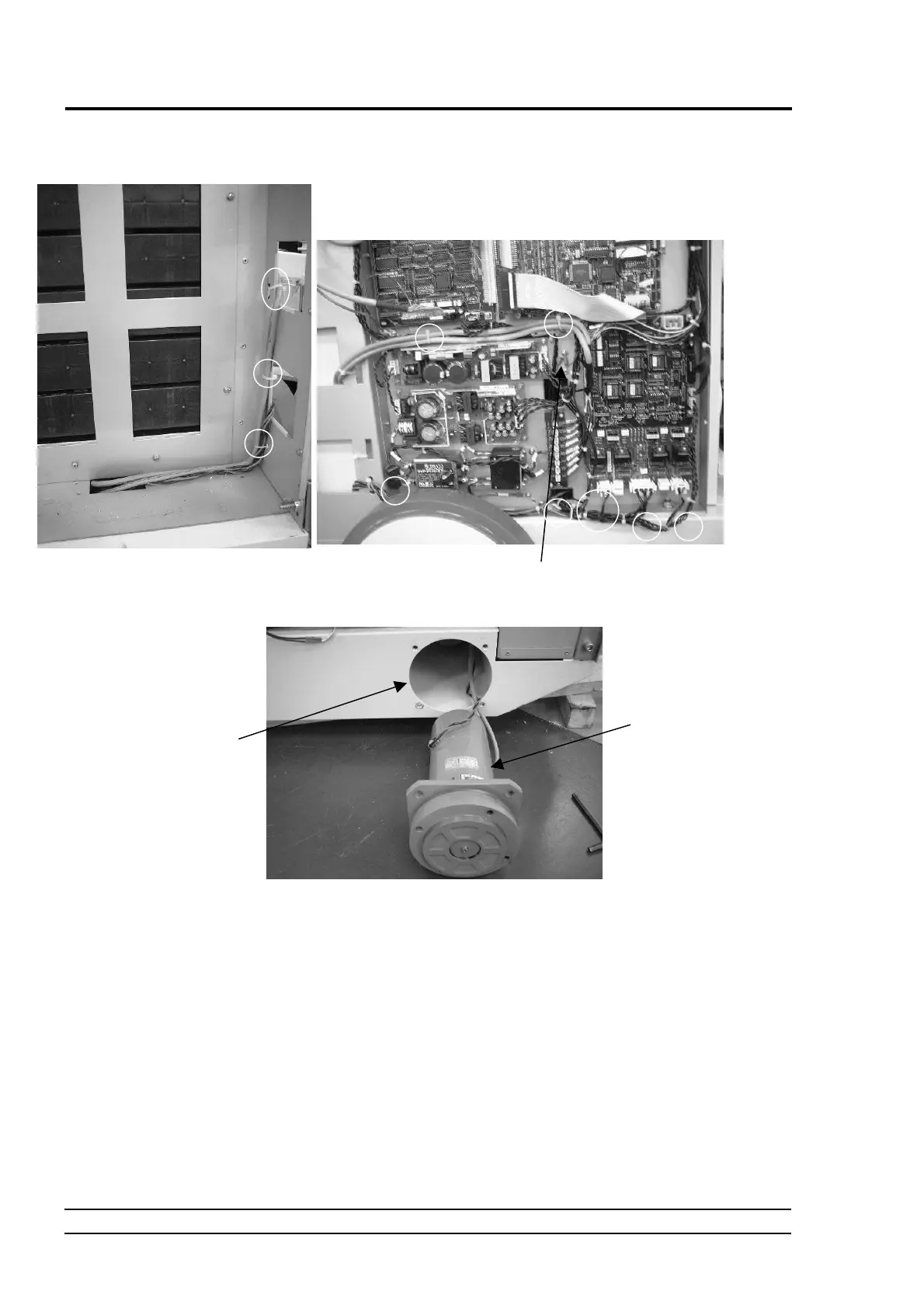

Fig. 6-59
Motor
Motor mounting hole
Ground wire
* The encircled area shows the point where the wiring band i
s
to be cut.
