６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ２２
６-４-３ Initialization of FVR value
Press and hold the thin body key (one of the body thickness
correction keys) until “cancel” is displayed (for approximately
3 seconds).
NOTE
The FVR value can be initialized in initialization of
the NEXSC PCB. In this case, however, other
data (such as APR) is initialized at the same time.

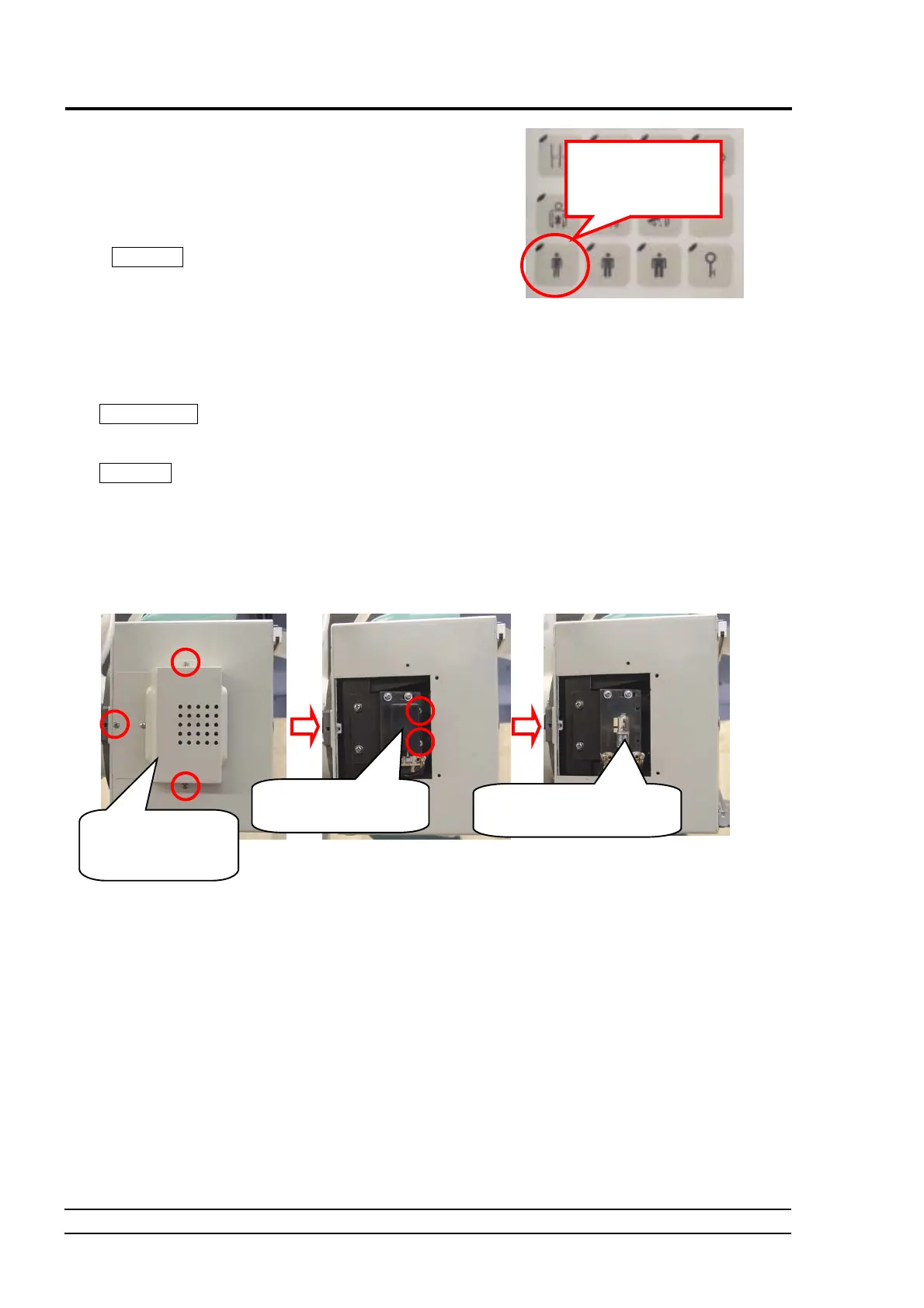

Fig. 6-36 How to Initialize the FVR Value
６-５ Replacement of Collimator Lamp ･････････････････････････････････････････････････････････････････
Replace the collimator lamp using the following procedure.
CAUTION
Never touch directly the collimator lamp. If dirt is adhered on the lamp, the illuminance may
be deteriorated.
NOTE
After the power of the system has been OFF for a while or after a while after the key switch was
set to OFF (that is, after the collimator lamp is cooled down), replace the collimator lamp.
1. Remove the lamp outer cover of the collimator.
2. Remove the lamp cover.
3. Replace the lamp (P/N 062-65003-02 halogen lamp).
4. Attach the covers again.
Fig. 6-37 Replacing the Collimator Lamp
Lamp outer cove
(Remove screws in 3
ositions.
Lamp cover (Remove
screws in 2 positions.)
Replace the collimator lamp.
(Never touch it directly.)
Press and hold this
key for approximatel
3 seconds.
