６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ２３
６-６ Replacement of Cord Reel ･･･････････････････････････････････････････････････････････････････････
Replace the cord reel using the following procedure.
WARNING
Make sure to set to OFF the main breaker before starting the work.
1. At first, remove the plug guide (made of resin).
2. Next, remove the right side cover referring to 6-1-2 and the front cover referring to 6-1-7.
3. Disconnect the cord reel wiring (AC line and ground).
4. Remove the hexagon socket head cap screw on your side, and pull out the cord reel.
5. Remove the spacer (mounting bracket) from the old cord reel, and attach it to a new cord reel.
(P/N 503-49045 cord reel wiring diagram ASSY … Wiring is completed.)
(P/N 071-58101-02 cord reel EFT160A.4kk … cable reel only)
6. Attach the new cable reel in the same position, return the wiring, attach the covers again, then attach the plug guide
at the end.

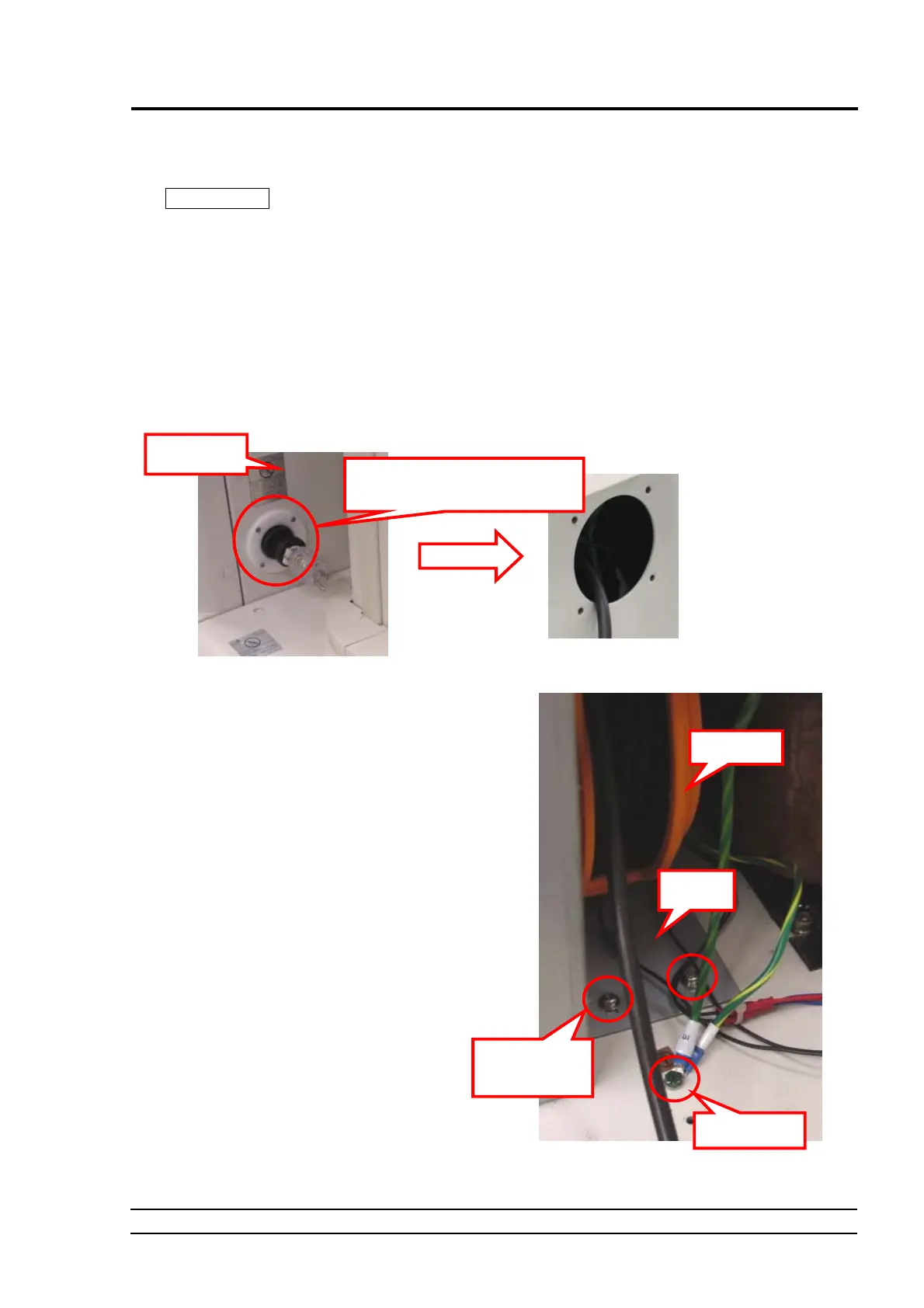

Fig. 6-38 How to Remove the Cord Reel
Ground cable
Cord reel
mounting screw
Spacer
Cord ree
Front cover
Remove screws in 4 positions, the
remove the plug guide.
To Next Page
