６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ２９
６-１１ Display and Reset of Error Log ･････････････････････････････････････････････････････････････････
Up to 32 error codes which have occurred so far can be displayed and reset.
Ⅰ
Setting of error log display mode
Set to ON the DIP switch SW3-8 on the NEXSC PCB, and turn on the power.
Next, press the thick body key and the abdomen scan key in the APR to enter the error log display mode.
(The LEDs on the thick body key and the abdomen scan key flicker.)
Ⅱ
Confirmation of contents of error log
The log No. is displayed in the kV display unit. The type of error is displayed in the mAs display unit. The
log Nos. are 000 (newest log) to 031 (oldest log). Change the log No. using the tube voltage setting keys “+” or
“-” key.
Ⅲ
Reset of error log
Press and hold the program registration key for approximately 3 seconds to reset the error log currently stored.

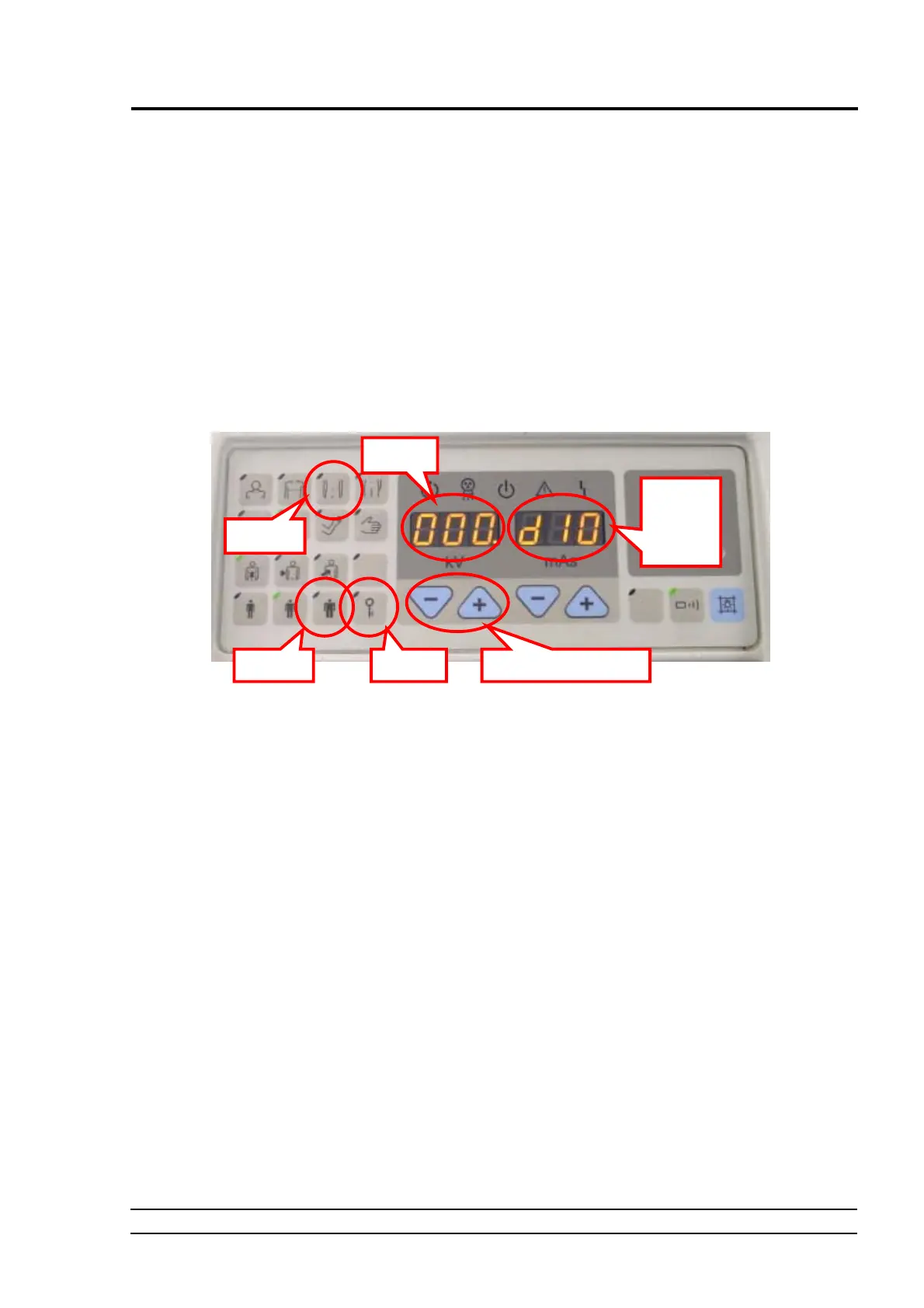

Fig. 6-46 Panel when the Error log is Displayed
Flickers.
Changes over the history.
Log No.
Resets.
Error log
Flickers.
