６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ２８
６-１０ Display and Reset of Accumulated Travel Distance････････････････････････････････････････････････
The accumulated travel distance controlled by the software can be displayed and reset.
Ⅰ
Setting of accumulated travel distance mode
Set to ON the DIP switch SW3-8 on the NEXSC PCB, and turn on the power.
Next, press the thick body key and the chest scan key in the APR to enter the accumulated travel distance mode.
(The LEDs on the thick body key and the chest scan key flicker.)
Ⅱ
Confirmation of accumulated distance
Every time the remote control key is pressed, the remote control key lamp flickers or becomes extinguished.
While the lamp is flickering, the total accumulated travel distance is displayed. While the lamp is extinguished,
the relative accumulated travel distance is displayed.
The total accumulated travel distance indicates the accumulated travel distance from the time of shipment from
the factory. The relative accumulated travel distance indicates the accumulated travel distance from the
previous reset. The unit is km.
Ⅲ
Reset of accumulated travel distance
Press and hold the program registration key for approximately 3 seconds to reset the displayed accumulated
travel distance to 0.

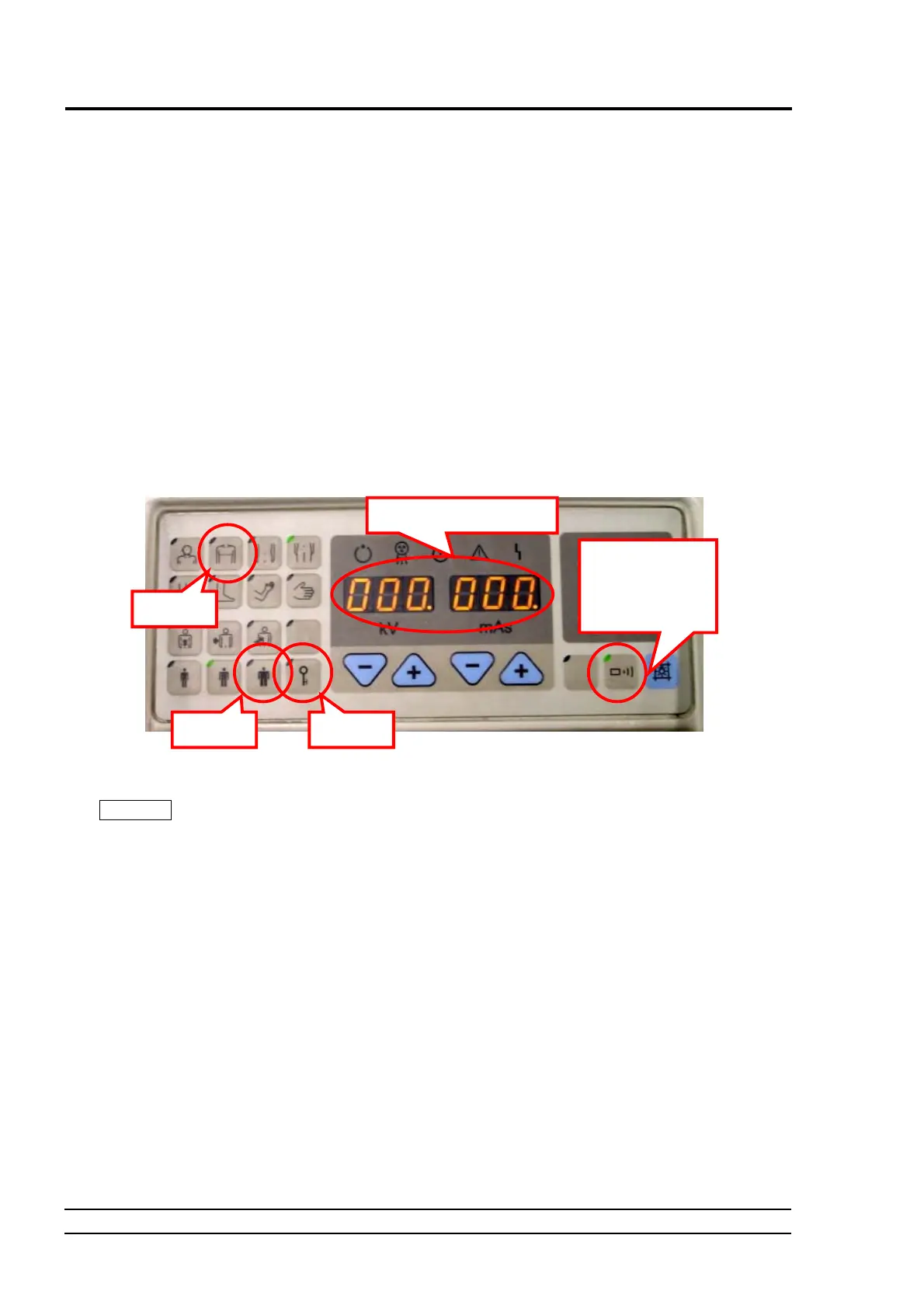

Fig. 6-45 Panel when the Accumulated Travel Distance is Displayed
NOTE
During installation, make sure to confirm the displayed distance. If an improper value (for
example, a value indicating that the system has traveled for many km) is displayed, make sure to
reset the travel distance.
Flickers.
Accumulated travel distance
Resets.
Changes over th
total distance an
the relative distance.
Flickers.
To Next Page
