４ INSTALLATION AND MAINTENANCE/INSPECTION
ＭＵＸ-１００ SERVICE MANUAL ４ - ６
４-2-３ Attachment of arm cover and collimator rotation stopper
After moving down the MUX from the pallet, attach the arm cover packed inside corrugated fiberboard.
Before attaching the arm cover, set the key switch to ON and move the arm to a proper position so that the attachment
work can be performed smoothly. Attach the arm cover with screws provided on the arm. After attachment, put
requiring caps (for hiding screws) into a dent.
After that, attach the collimator rotation stopper knob (which is put inside a bag).
1. Lift up the arm and expand it.
2. Remove the Cable Guide from the Middle Arm.（M5 bolt, 2places. Fig.1(a) )
3. Attach the Upper arm cover to the Arm. (M4 screw, 4places, Fig.1(b))
4. Attach the Lower arm cover to the Arm. (M4 screw, 6places, Fig.1(c))
5. Attach the Cable Guide to the Mddle arm. (Fig.1(d) )
(a) (b)
(c) (d)

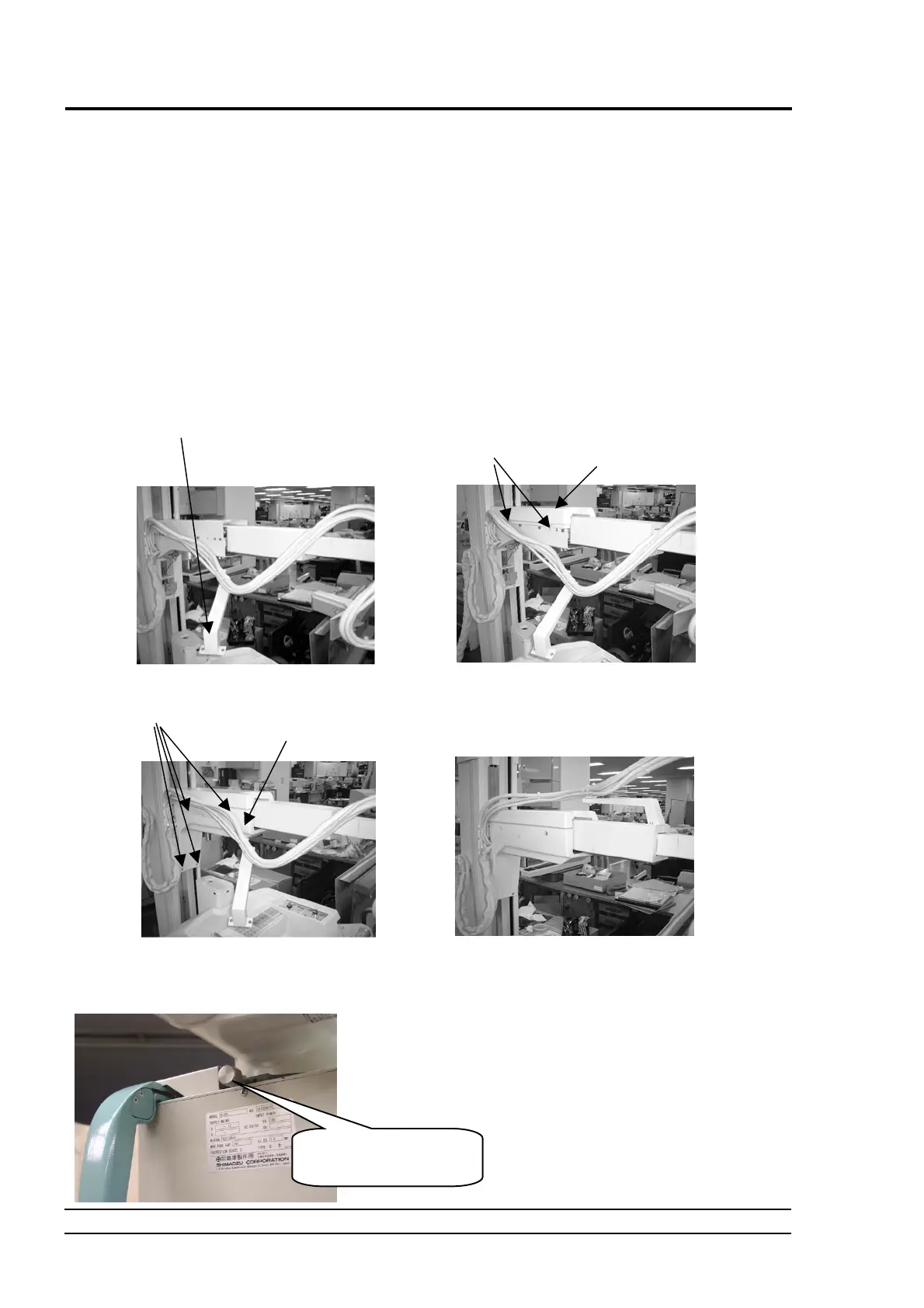

Fig. 4-6 Installation procedure of arm cover
Fig. 4-7 Attaching the collimator rotation stopper knob
Cable Guide
M4 screw,4places
Upper arm cover
M4 screw,6places
Lower arm cover
Screw the rotation
topper
into this position.
To Next Page
