６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ２
Bolt
scre
screws
６-１-２ How to remove the Side Cover
1. Take out FPD from FPD box carefully.

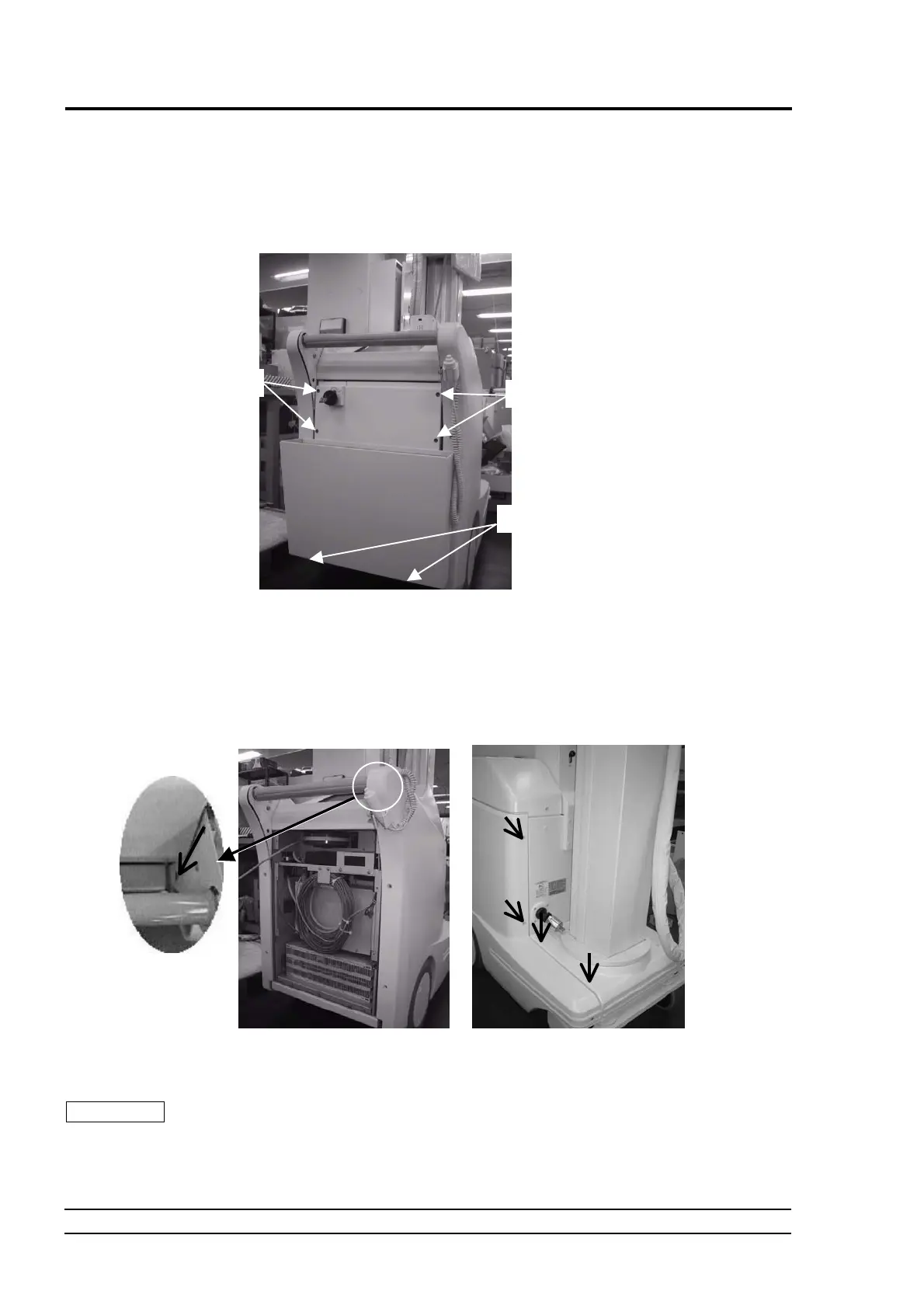

2. Loosen the two bolts under FPD box, then remove the four screws as shown in
Fig.6-2.
Fig. 6-2 Screw clamp positions of the FPD box
3. Pull up FPD box and remove it, then put FPD into FPD box.
4. Remove the seven screws shown in Fig. 6-3, then remove the side cover.
Fig. 6-3 Screw clamp positions of the side cover
CAUTION
The right side cover and the main unit are connected with the cable of the hand switch.
Be careful to remove the right side cover.
