６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ７
６-１-8
How to remove the cover of Arm Joint Section
1. Remove the side covers, the upper cover and the cable cover.
2. Unscrew the hexagon socket head cap screws at the two locations indicated
in Fig. 6-11.
3. Remove the knob of the arm lock release lever by turning it counterclockwise.
4. Pull out the top plate and the main cover of the arm joint section.

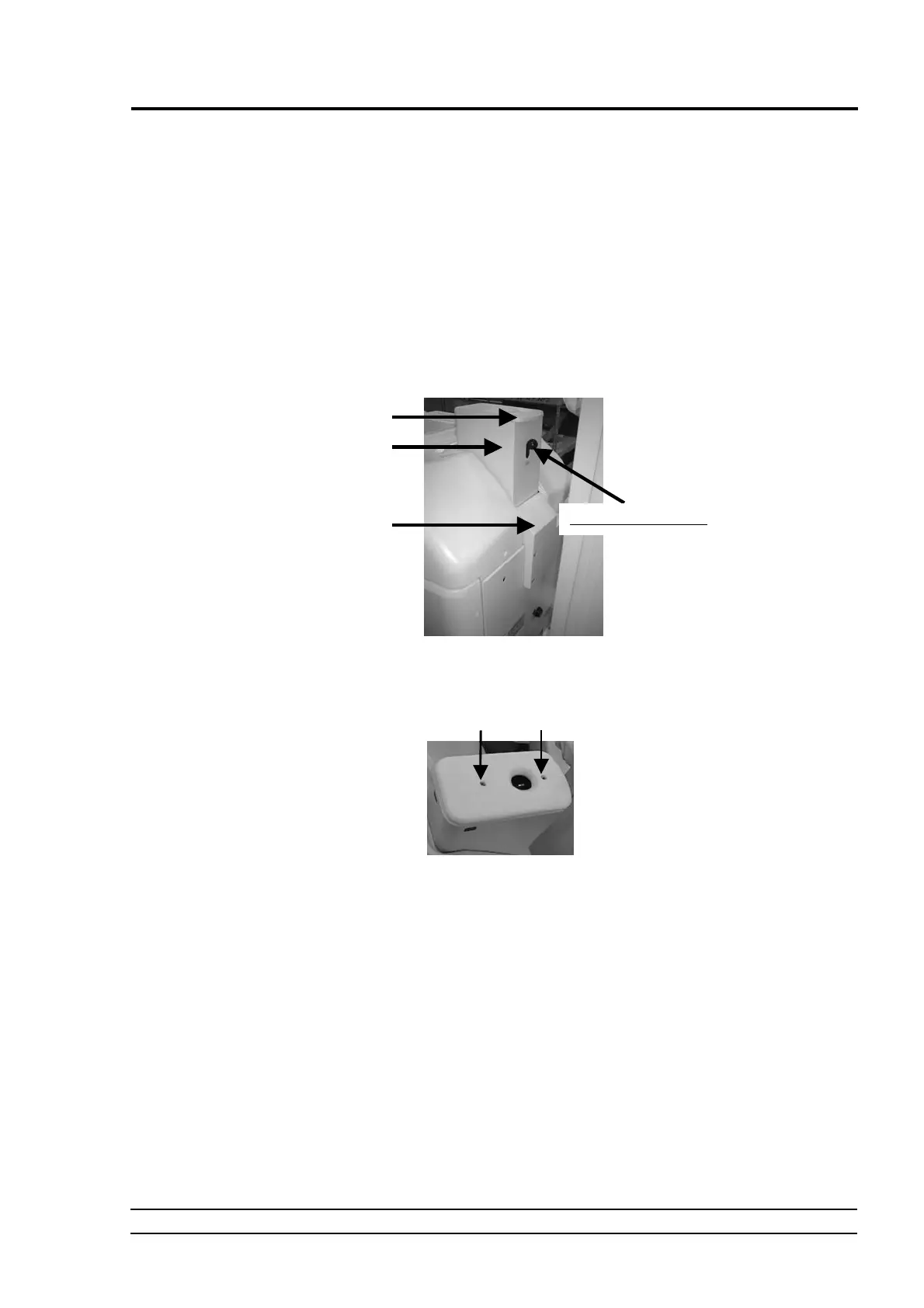

Fig. 6-11 Name of each part of the arm joint section
Fig. 6-12 Screw clamp positions of each cover
Cable cove
Arm lock release lever
Main cover of arm
oint section
To
lat
To Next Page
