６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ３７

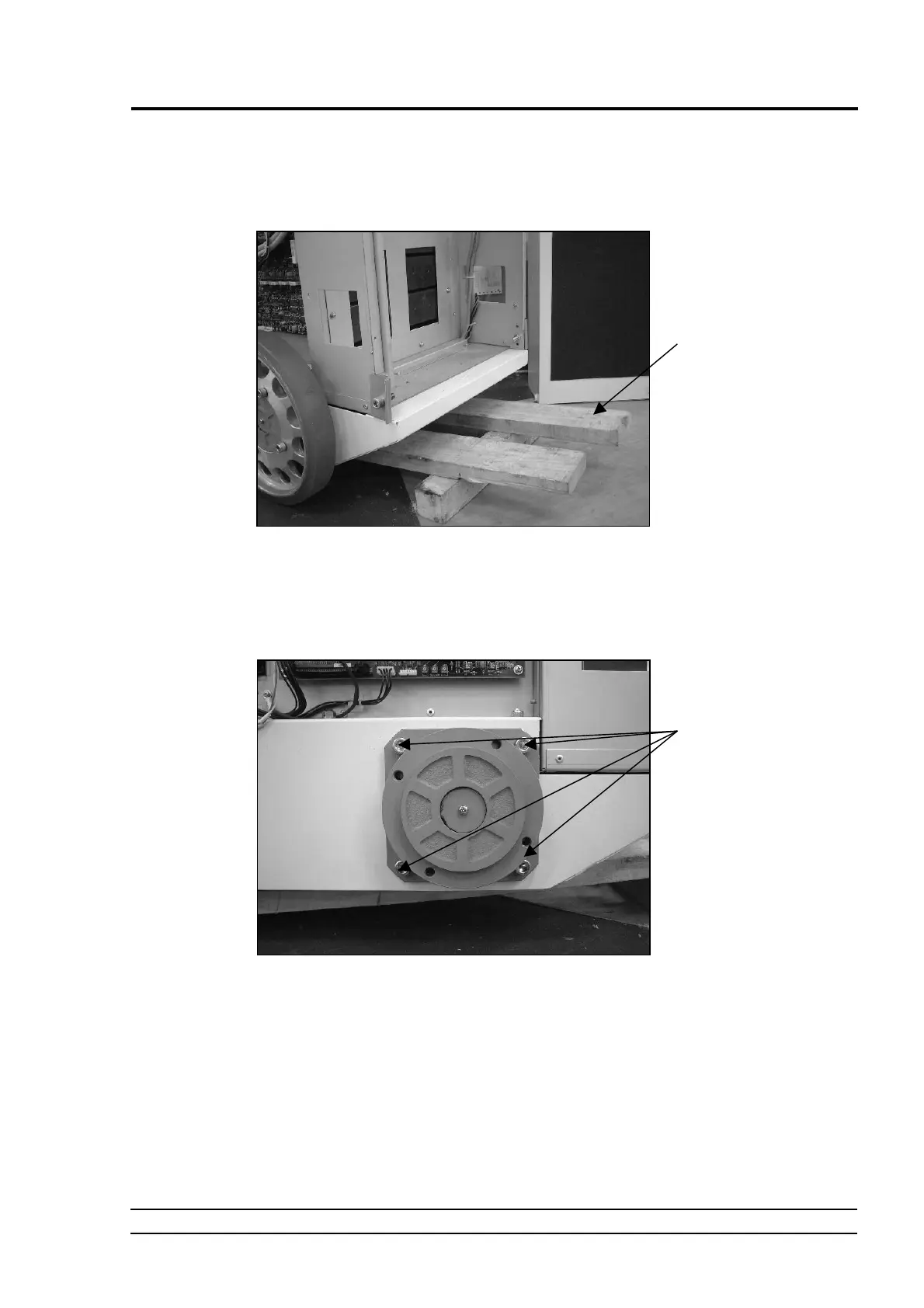

11. As shown in Fig. 6-57, lift the main body by using wood blocks, remove the bolts that have been loosened
in above step 10, and detach the wheel.
Fig. 6-57
12. As shown in Fig. 6-58, detach the hexagon socket head bolts which fix the motor to the main frame.
Fig. 6-58
Wood block
Hexagon socket head
b
olts
