６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - １７
6. Remove the collimator rotation unit, and attach
it to a new tube. Please be careful in the
direction of stopper at this time.
Fig. 6-29 Removing the Collimator Rotation Unit

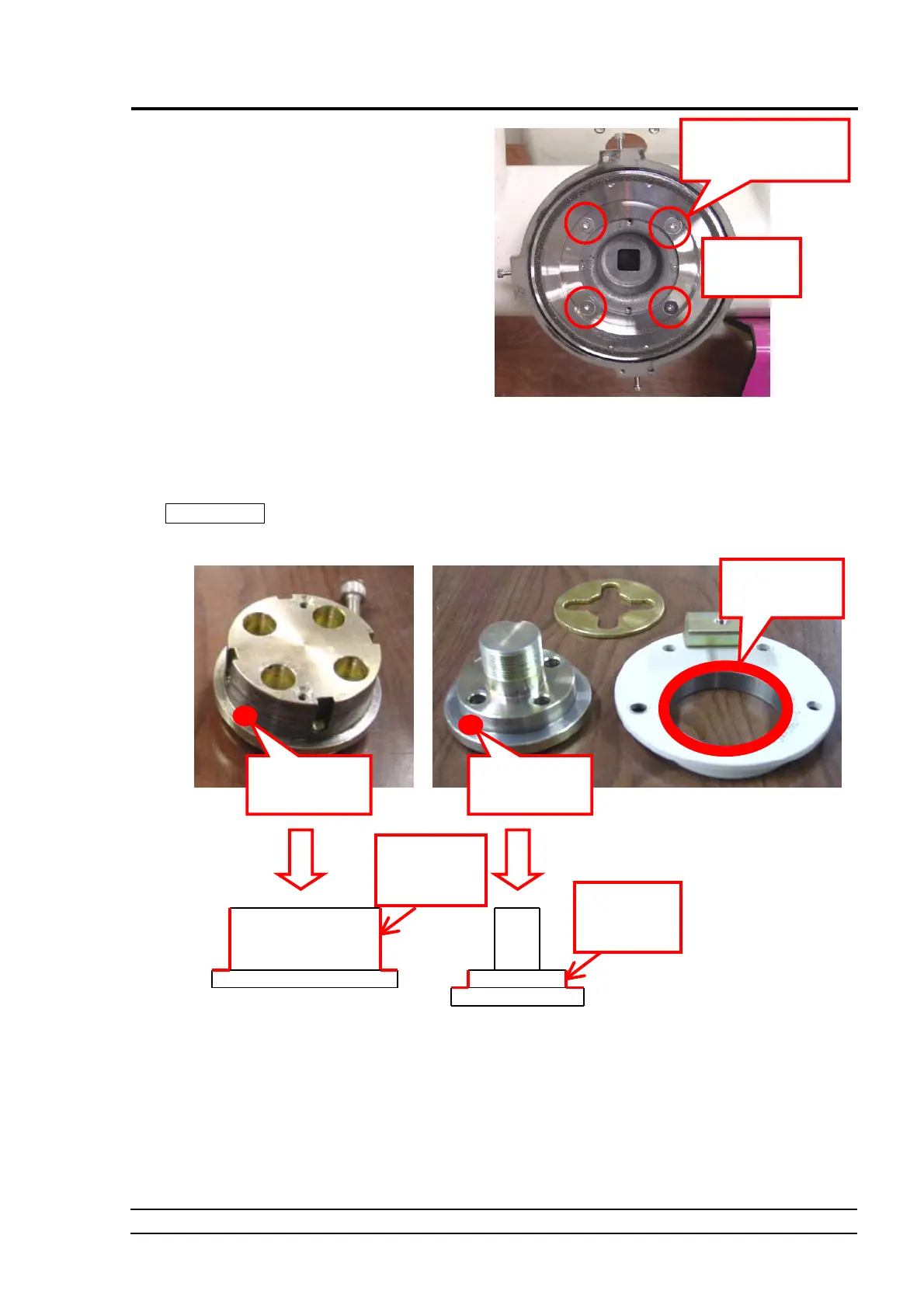

7. Attach the left and right rotation units to the new tube in the order of removal. At this time, clean the sliding units,
and apply grease on the following portions before attachment.
CAUTION
Make sure to use grease not containing abrasive.
Recommended grease: Albania grease 2 (Showa Shell)
Fig. 6-30 Grease Application Portions
8. At the end, attach the low voltage cable, the collimator and the high voltage plug, and treat the cables.
At this time, attach the high voltage plug using the following procedure.
Remove these hexago
socket countersunk hea
screws (in 4 positions).
Collimator
rotation unit
Apply grease o
this portion.
Apply grease
on the entire
this face.
Apply grease
on the entire
this face.
Apply grease o
this portion.
Apply grease o
this portion.
To Next Page
