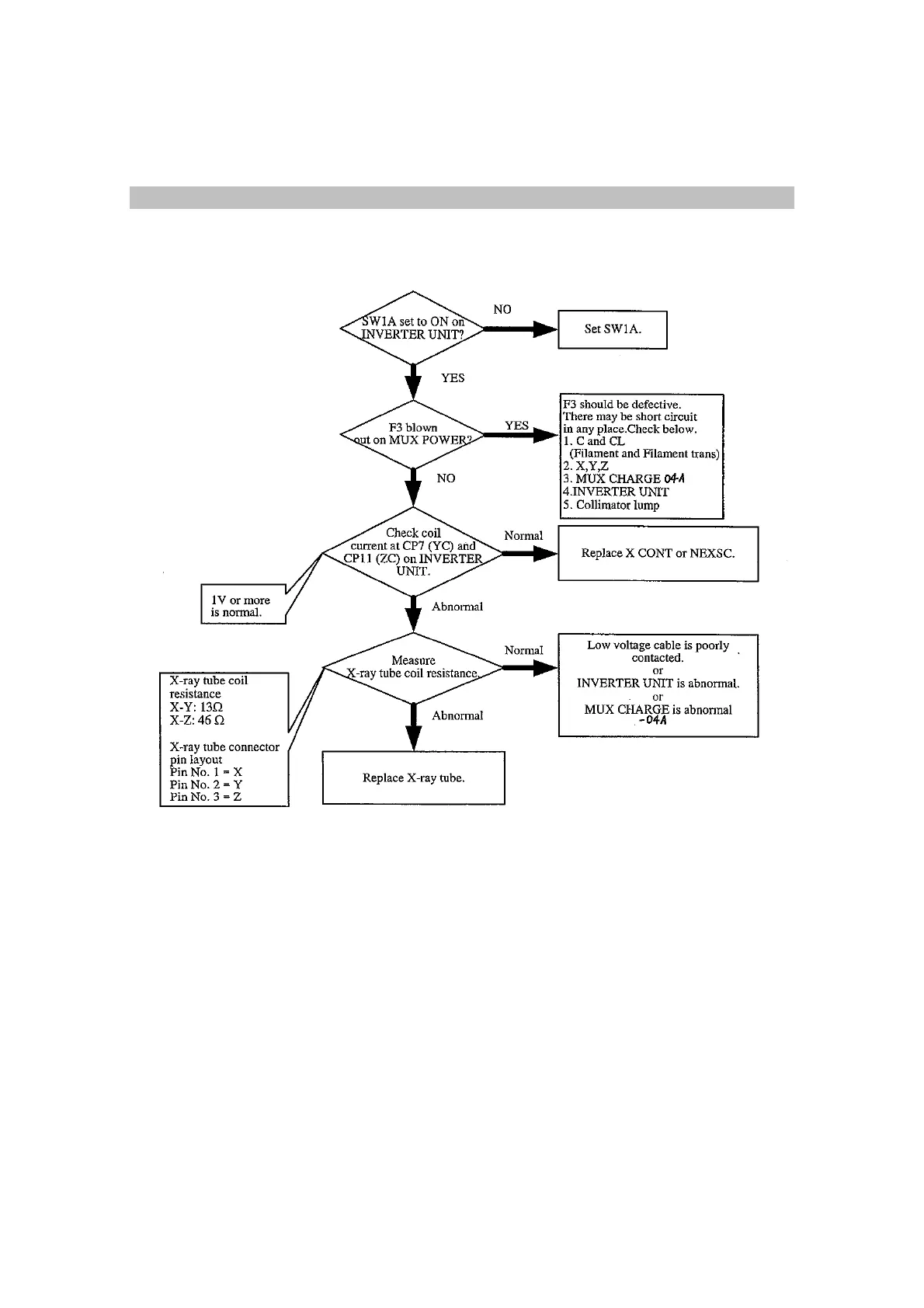

NO
Set SW1A.
YES
YES
NO
Check coil
current at CP7 (YC) and
CPIl (ZC) on INVERTER
UNIT.
Normal
F3 should be defective.
There may be short circuit
in any place.Check below.
1.
C and CL
(Filament and Filament trans)
2.
X,Y,Z
3.
MUX CHARGE
04A
4.INVERTER UNIT
5. Collimator lump
Replace X CONT or NEXSC.
Abnormal
Normal
Measure
-ray tube coil resistance
Abnormal
Low voltage cable is poorly
contacted.
Or
INVERTER UNIT is abnormal.
or
MUX CHARGE is abnormal
- 04A
X-ray tube coil
resistance
X-Y: 13Q
X-Z: 46 S2
Replace X-ray tube.
X-ray tube connector
pin layout
Pin No. 1 = X
Pin No. 2 = Y
Pin No. 3 = Z
IV or more
is normal.
13
7-2.15 F61
Starter error (The starter does not issue the current detection confirmation signal.)
The current does not flow in the stator coil, and the rotor does not rotate.
To Next Page
