６ ADJUSTMENT/REPLACEMENT OF EACH PART
ＭＵＸ-１００ SERVICE MANUAL ６ - ５
６-１-6

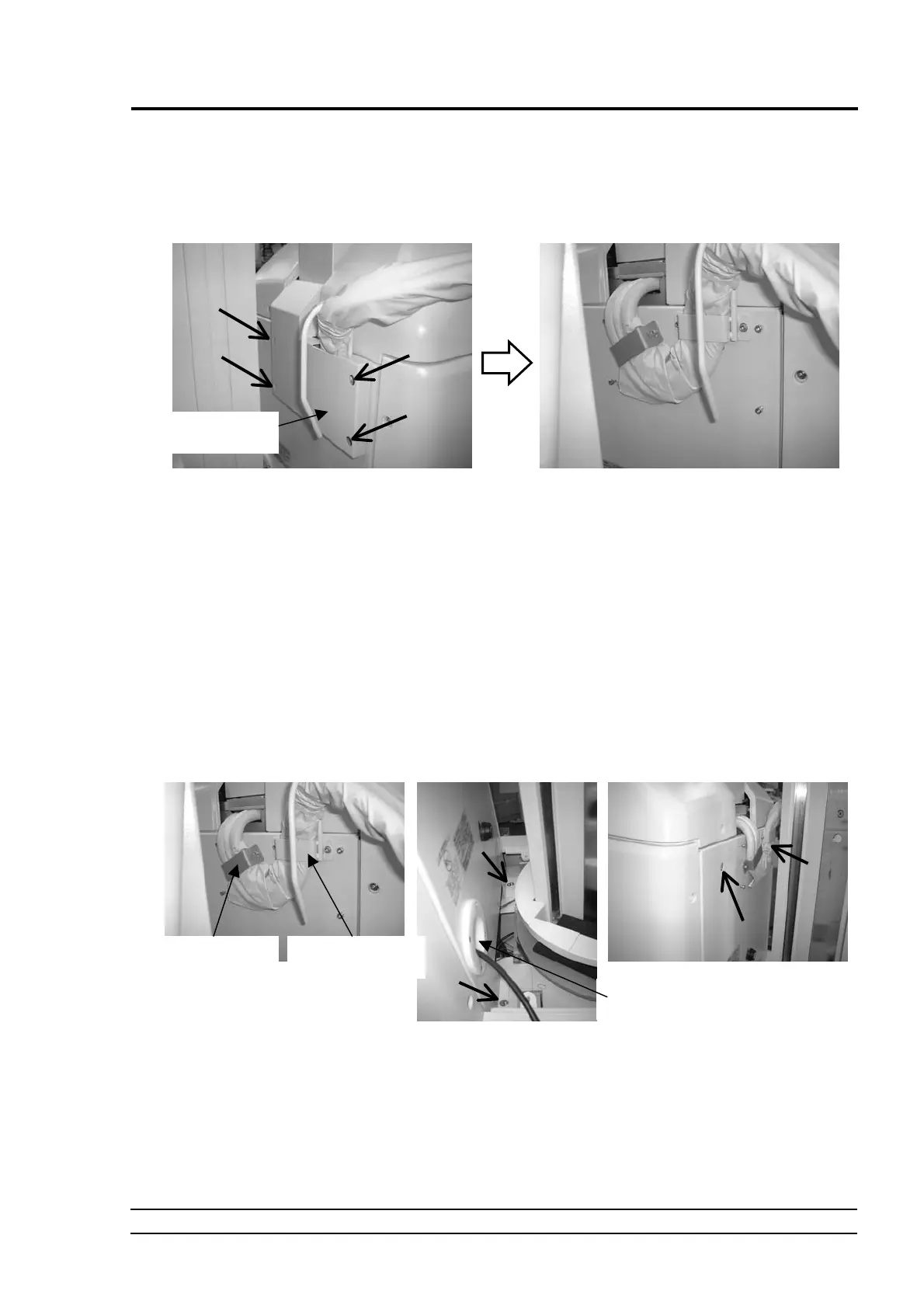

How to remove the Cable Cover
1. Unscrew the two hexagon socket head cap screws as shown in Fig.6-8.
2. Pull the cable cover upward and remove it.
Fig. 6-8 Screw clamp positions of the cable cover
６-１-7
How to remove the Front Cover
1. Remove the front side cover and front rear cover.
2. Remove the cable cover.
3. Remove the cable guide and cable holder.
4. Remove the plug guide.
5. Unscrew the four screws as shown in Fig. 6-9 and remove the front cover.
Fig. 6-9 Screw clamp positions of the front cover
Cable cove
Plu
uid
Cable
uid
Cable holder
To Next Page
