22(107)

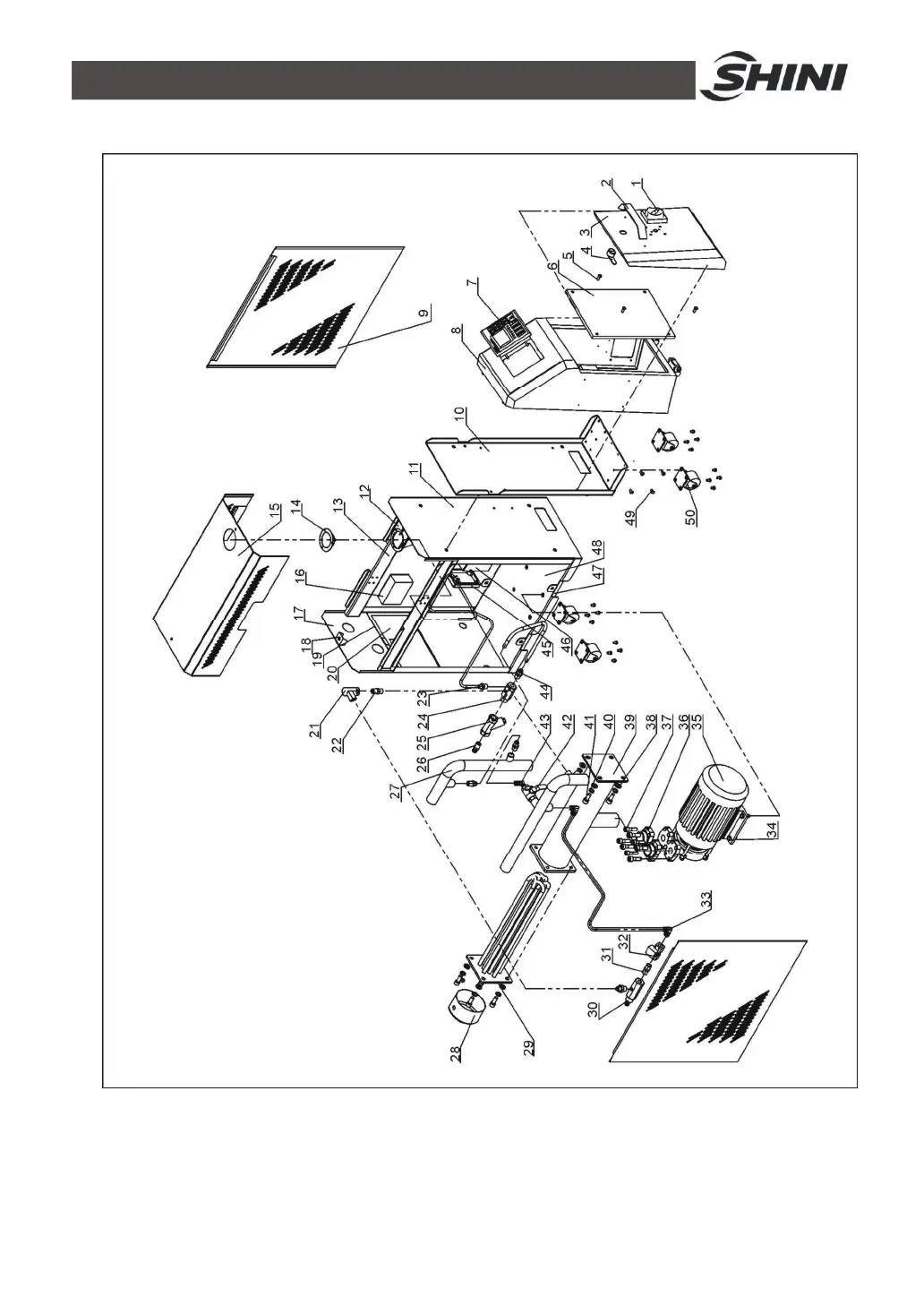

2.2.3 Assembly Drawing (STM-1220W)
Remarks: Please refer to material list 2.2.4 for specific explanation of the Arabic numbers
in parts drawing.
Picture 2-3：Assembly Drawing (STM-1220W)
