26(107)

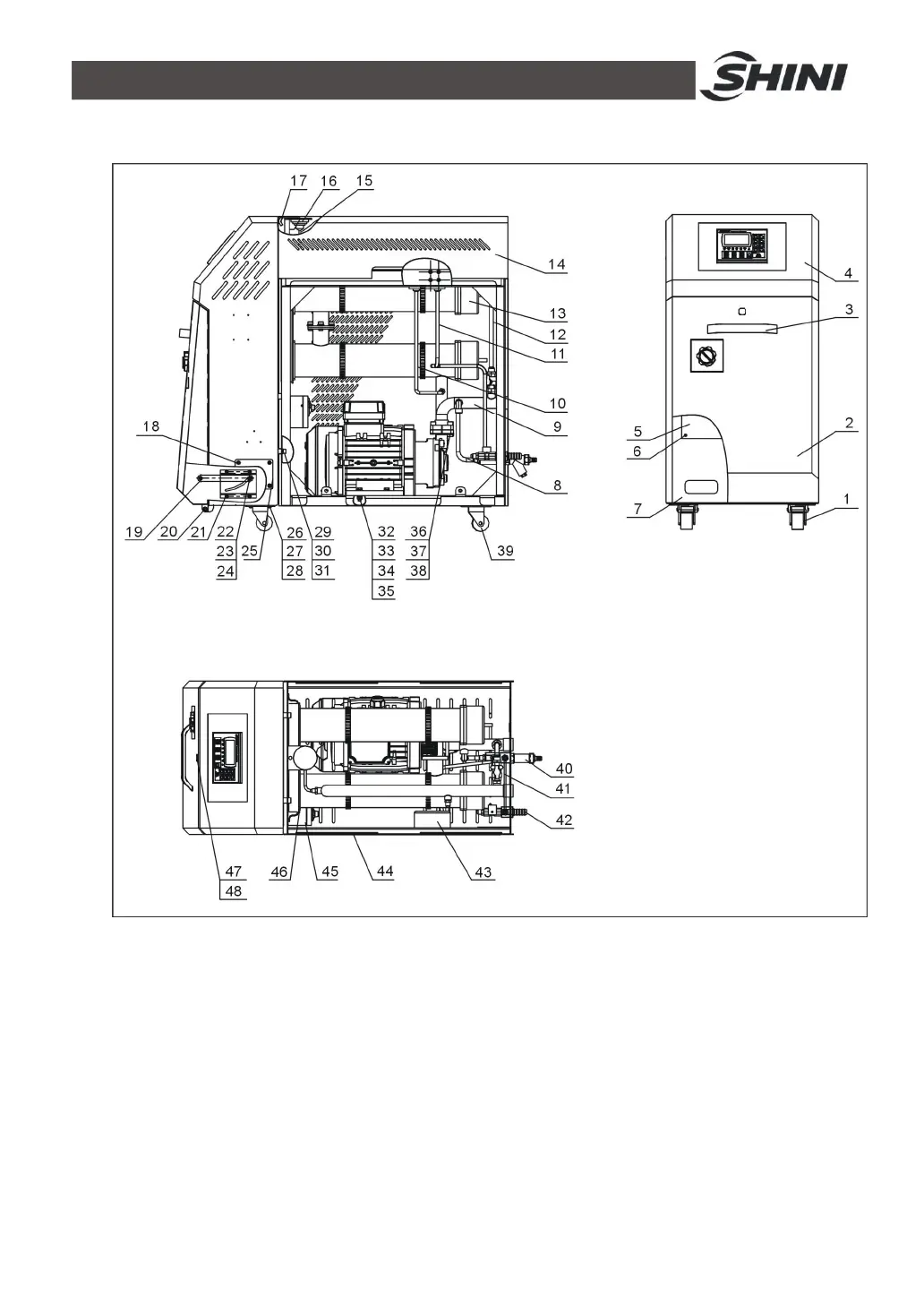

2.2.7 Assembly Drawing (STM-3650W)
Remarks: Please refer to material list 2.2.8 for specific explanation of the Arabic numbers
in parts drawing.
Picture 2-5：Assembly Drawing (STM-3650W)
