24(107)

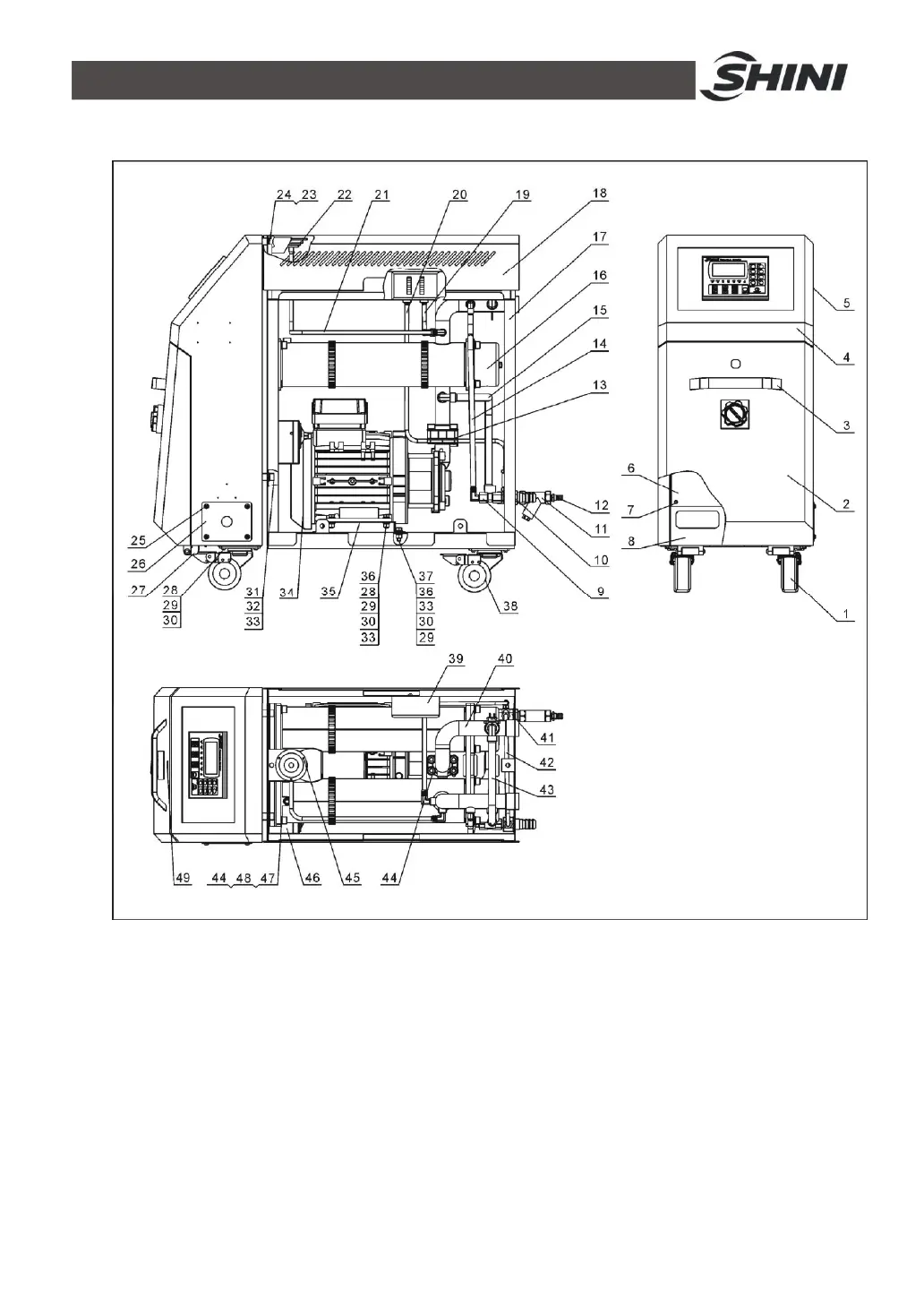

2.2.5 Assembly Drawing (STM-2440W)
Remarks: Please refer to material list 2.2.6 for specific explanation of the Arabic numbers
in parts drawing.
Picture 2-4：Assembly Drawing (STM-2440W)
