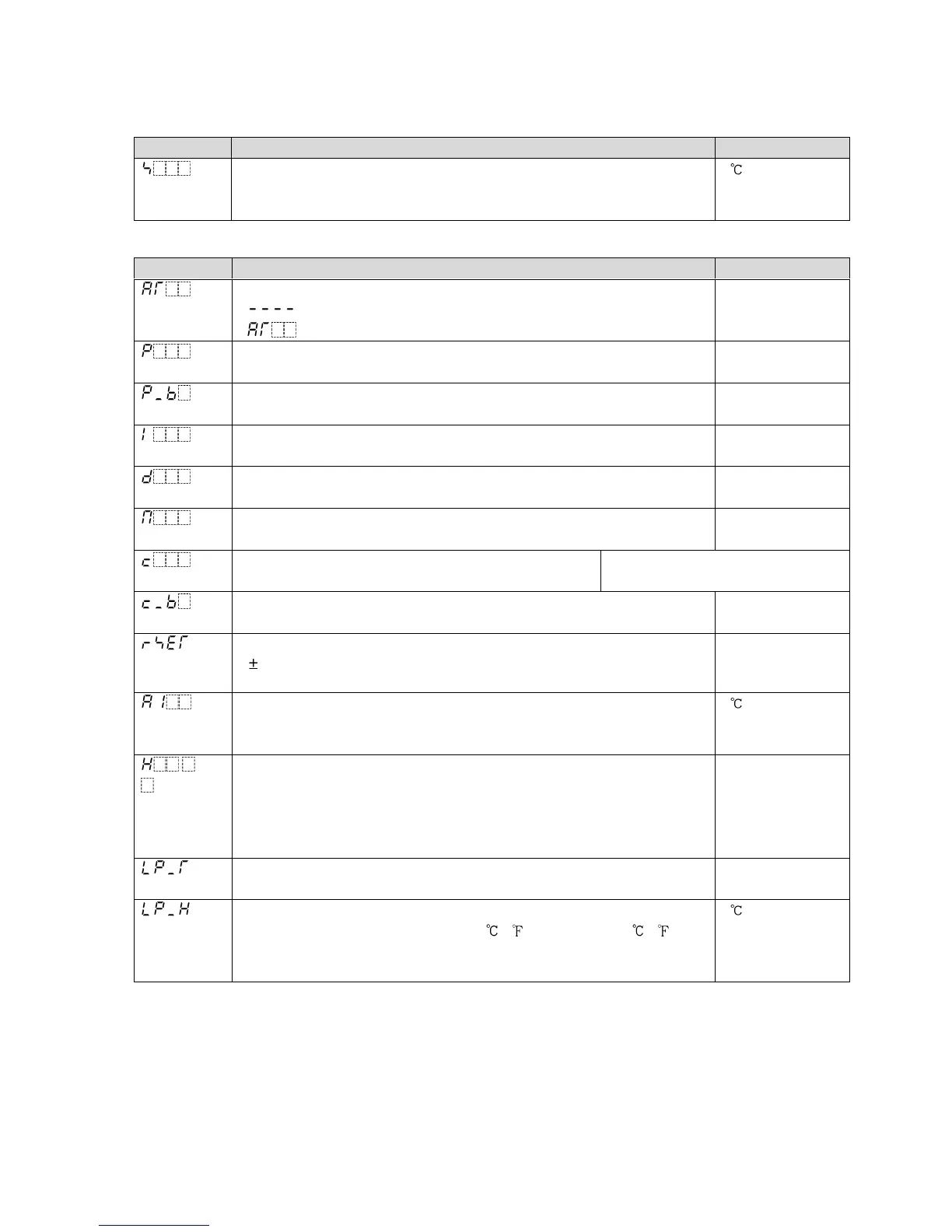

12. Character Table
12.1 Main Setting Mode
Character Setting Item, Description, Setting Range Factory Default
SV1
Scaling low limit to scaling high limit (For DC voltage, current input,
the placement of the decimal point follows the selection.)
0
12.2 Sub Setting Mode
Character Setting Item, Description, Setting Range Factory Default
AT Perform/Cancel
: AT Cancel
: AT Perform
AT Cancel
OUT1 proportional band
0.0 to 110.0%
2.5%
OUT2 proportional band
0.0 to 10.0 times
1.0 times
Integral time
0 to 3600 sec
200 sec
Derivative time
0 to 1800 sec
50 sec
ARW (Anti-reset windup)
0 to 100%
50%
OUT1 proportional cycle
1 to 120 sec
Relay contact output: 30 sec
Non-contact voltage output: 3 sec
OUT2 proportional cycle
1 to 120 sec
3 sec
Manual reset
Proportional band converted value (For DC voltage, current input,
the placement of the decimal point follows the selection.)
0.0
Alarm 1 value
See (Table 12.2-1)(p.48). (For DC voltage, current input, the
placement of the decimal point follows the selection.)
0
. と
XX.X
alternating
display
Heater burnout alarm value
Rated current 5 A: 0.0 to 5.0 A
Rated current 10 A: 0.0 to 10.0 A
Rated current 20 A: 0.0 to 20.0 A
Rated current 50 A: 0.0 to 50.0 A
0.0 A
Loop break alarm time
0 to 200 minutes
0 minutes
Loop break alarm span
Thermocouple, RTD input: 0 to 150 ( ) or 0.0 to 150.0 ( )
DC voltage, current input: 0 to 1500 (The placement of the decimal
point follows the selection.)
0
