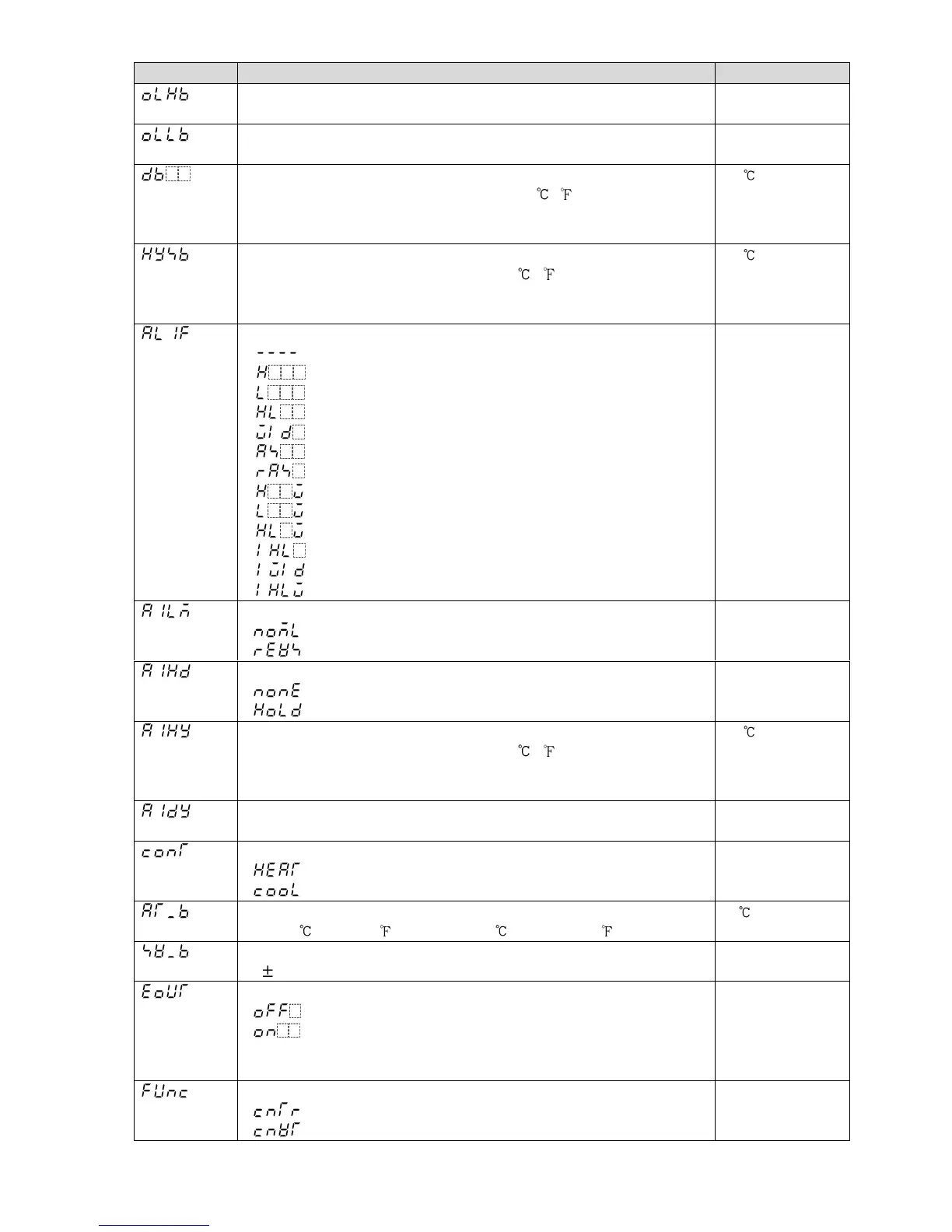

Character Setting Item, Setting Range Factory Default
OUT2 high limit
OUT2 low limit value to 100%
100%
OUT2 low limit
0% to OUT2 high limit value
0%
Overlap/Dead band
Thermocouple, RTD input: –100.0 to 100.0 ( )
DC voltage, current input: 1 to 1000 (The placement of the decimal
point follows the selection.)
0.0
OUT2 ON/OFF hysteresis
Thermocouple, RTD input: 0.1 to 100.0 ( )
DC voltage, current input: 1 to 1000 (The placement of the decimal
point follows the selection)
1.0
Alarm 1 type
: No alarm action
: High limit alarm
: Low limit alarm
: High/Low limits alarm
: High/Low limit range alarm
: Process high alarm
: Process low alarm
: High limit with standby alarm
: Low limit with standby alarm
: High/Low limits with standby alarm
: High/Low limits independent alarm
: High/Low limit range independent alarm
: High/Low limits with standby independent alarm
No alarm action
Alarm 1 Energized/De-energized
: Energized
: De-energized
Energized
Alarm 1 HOLD function
: Not holding
: Holding
Not holding
Alarm 1 hysteresis
Thermocouple, RTD input: 0.1 to 100.0 ( )
DC voltage, current input: 1 to 1000 (The placement of the
decimal point follows the selection.)
1.0
Alarm 1 delay time
0 to 9999 sec
0 sec
Direct/Reverse action
: Reverse (Heating) action
: Direct (Cooling) action
Reverse
(Heating) action
AT bias
0 to 50 (0 to 100 ), or 0.0 to 50.0 (0.0 to 100.0 )
20
SVTC bias
20% of the scaling span
0
Output status when input errors occur
: Output OFF: OFF(4mA) or OUT1 low limit value.
: Output ON: Outputs a value between OFF (4mA) and ON
(20mA) or between OUT1 low limit value and OUT1 high
limit value, depending on deviation.
Output OFF
Controller/Converter
: Controller
: Converter
Controller
