Shinko DCL-33A - Auxiliary Function Setting Mode 3 Characters (Continued); Alarm 2, 3, 4 Hysteresis and Delay Time; Alarm 4 Type and Value Settings; Remote;Local and Input Limit Settings

53

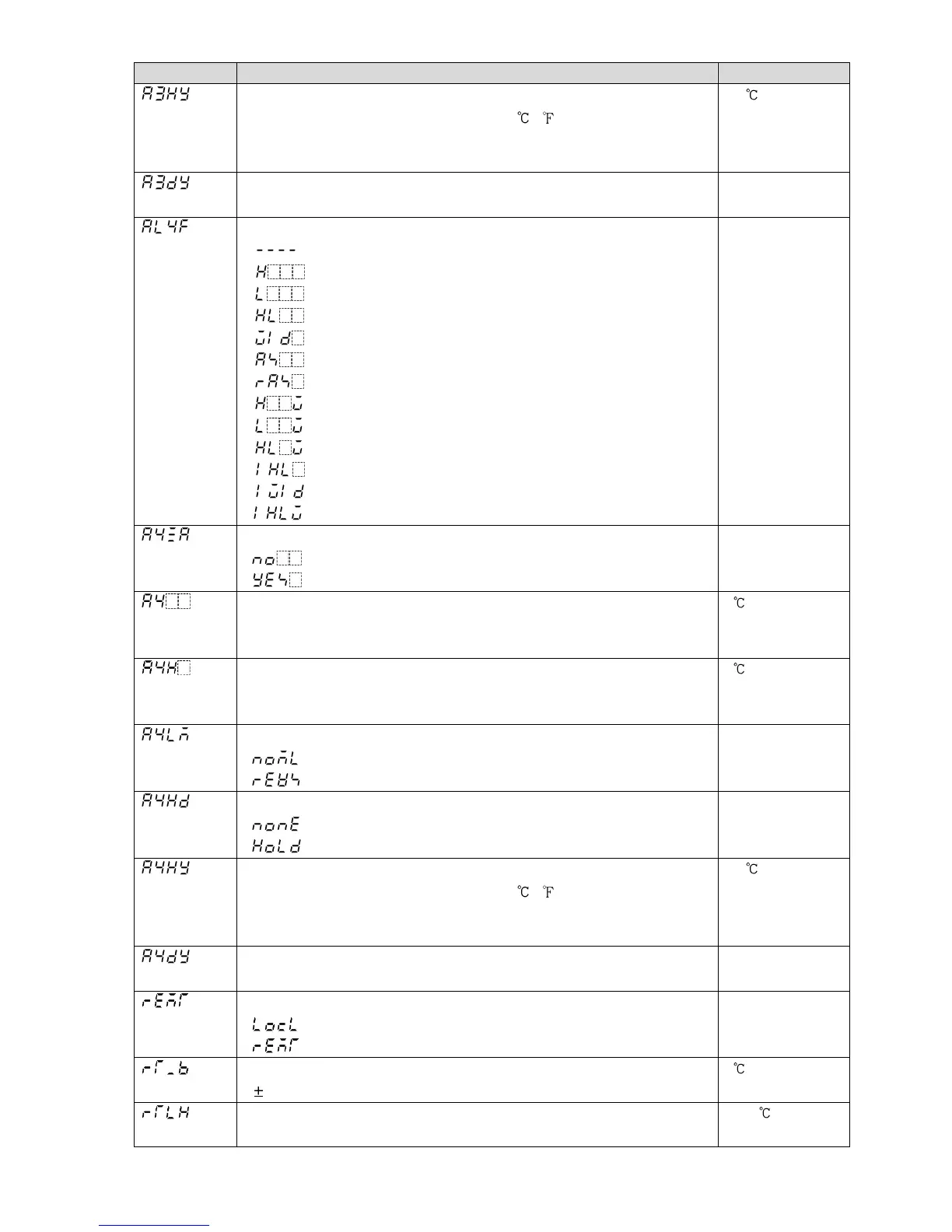

Character Setting Item, Setting Range Factory Default
Alarm 3 hysteresis
Thermocouple, RTD input: 0.1 to 100.0 ( )
DC voltage, current input: 1 to 1000 (The placement of the decimal
point follows the selection.)
1.0
Alarm 3 delay time
0 to 9999 sec
0 sec
Alarm 4 type
: No alarm action
: High limit alarm
: Low limit alarm
: High/Low limits alarm
: High/Low limit range alarm
: Process high alarm
: Process low alarm
: High limit with standby alarm
: Low limit with standby alarm
: High/Low limits with standby alarm
: High/Low limits independent alarm
: High/Low limit range independent alarm
: High/Low limits with standby independent alarm
No alarm action
Alarm 4 value 0 Enabled/Disabled
: Disabled
: Enabled
Disabled
Alarm 4 value
See (Table 12.2-1) on p.48. (For DC voltage, current input, the
placement of the decimal point follows the selection.)
0
Alarm 4 high limit alarm value
See (Table 12.2-1) on p.48. (For DC voltage, current input, the
placement of the decimal point follows the selection.)
0
Alarm 4 Energized/De-energized
: Energized
: De-energized
Energized
Alarm 4 HOLD function
: Not holding
: Holding
Not holding
Alarm 4 hysteresis
Thermocouple, RTD input: 0.1 to 100.0 ( )
DC voltage, current input: 1 to 1000 (The placement of the decimal
point follows the selection.)
1.0
Alarm 4 delay time
0 to 9999 sec
0 sec
Remote/Local
: Local
: Remote
Local
Remote bias
20% of input span
0
External setting input high limit
External setting input low limit to Scaling high limit
1370
