Shure MXW - Microphone Transmitter Features; LED Indicators and Input Sources; Microphone Types and Compatibility

④ Low Battery LED (Gooseneck and Boundary only)
StatusColor
<5% battery runtime remainsOff
>5% battery runtime remainsSolid Red
⑤ Earphone Jack
1/8" (3.5 mm) jack for monitoring a return channel signal, such as translated audio. This audio is automatically routed from the input(s) of the Audio Network
Interface (Input A to channels 1 - 4; Input B to channels 5 - 8).
Note: Not featured on the MXW2 handheld transmitter.
⑥ Charge Connector (USB 3.0 Type A)
Connects to the NCS charger slot or to the USB Charger.
⑦ Handheld Cartridge
MXW2 transmitter is compatible with the following cartridge types: SM58, Beta 58, SM86, VP68.
⑧ Gooseneck Microphone
The gooseneck base is compatible with 5, 10, and 15” Microflex gooseneck microphones.
⑧ TQG Connector
The MXW hybrid bodypack has a TQG connector for an external lavalier or headset microphone.
⑩ Internal Microphone
The bodypack transmitter has an internal, omnidirectional microphone that can be set to automatically engage when not connected to a lavalier microphone.
DescriptionLEDStatus
Ready to pass audio to network.GreenActive
Audio is muted.RedMute
Audio is muted and the transmitter is in a hibernation state to conserve the battery.
Red Pulsing (long off, short
on)
Standby
The Identify button has been pressed from the control software.Flashing YellowIdentify
The transmitter is out of the RF coverage range to the linked access point.Red Pulsing (short on/off)Out of RF Coverage Range
The transmitter is charging.OffCharging
Battery statistics have been reset for the transmitter.Flashing YellowBattery Statistics Reset
Only one microphone for each audio channel can be active at a time.
Red Pulsing (long on, short
off)
Two microphones trying to connect
to same audio channel
No connection to the network. The transmitter must be turned on using the power button
on the mic.
OffOff

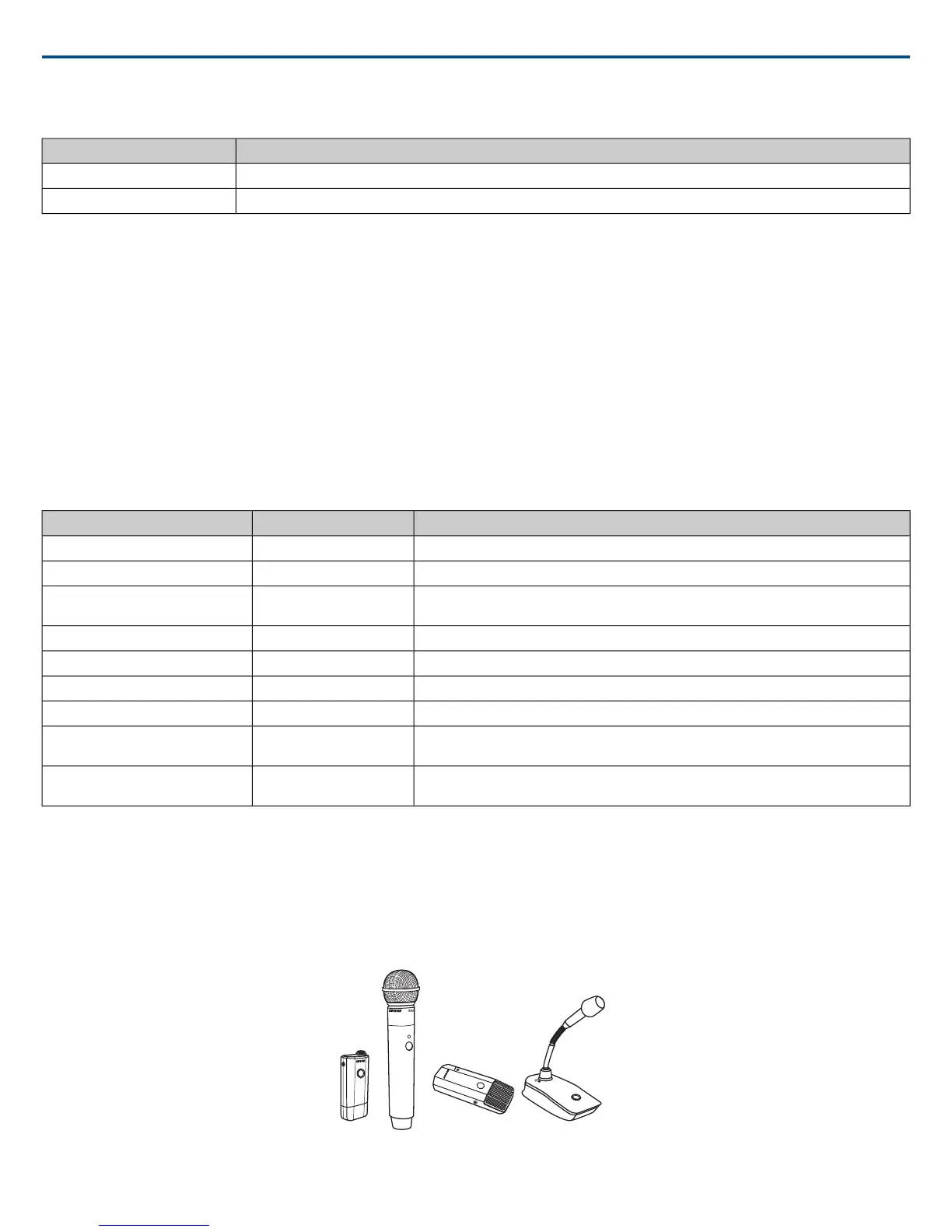

Microphone Transmitters
MXW microphones transmit an encrypted, wireless audio signal to the access point. Four form factors are available:
Hybrid Bodypack (MXW1)
The bodypack secures to a belt or strap for hands-free, mobile communication. It features a TQG input for lavalier microphone connection and an integrated
omnidirectional microphone.
MXW2
MXW6MXW1 MXW8
