Shure MXW - Networked Charging Station (NCS) Mounting; NCS2 Wall Mounting; Attaching the Charger to the Mount

12
11
10
1
2
4
8
57
6
9 3

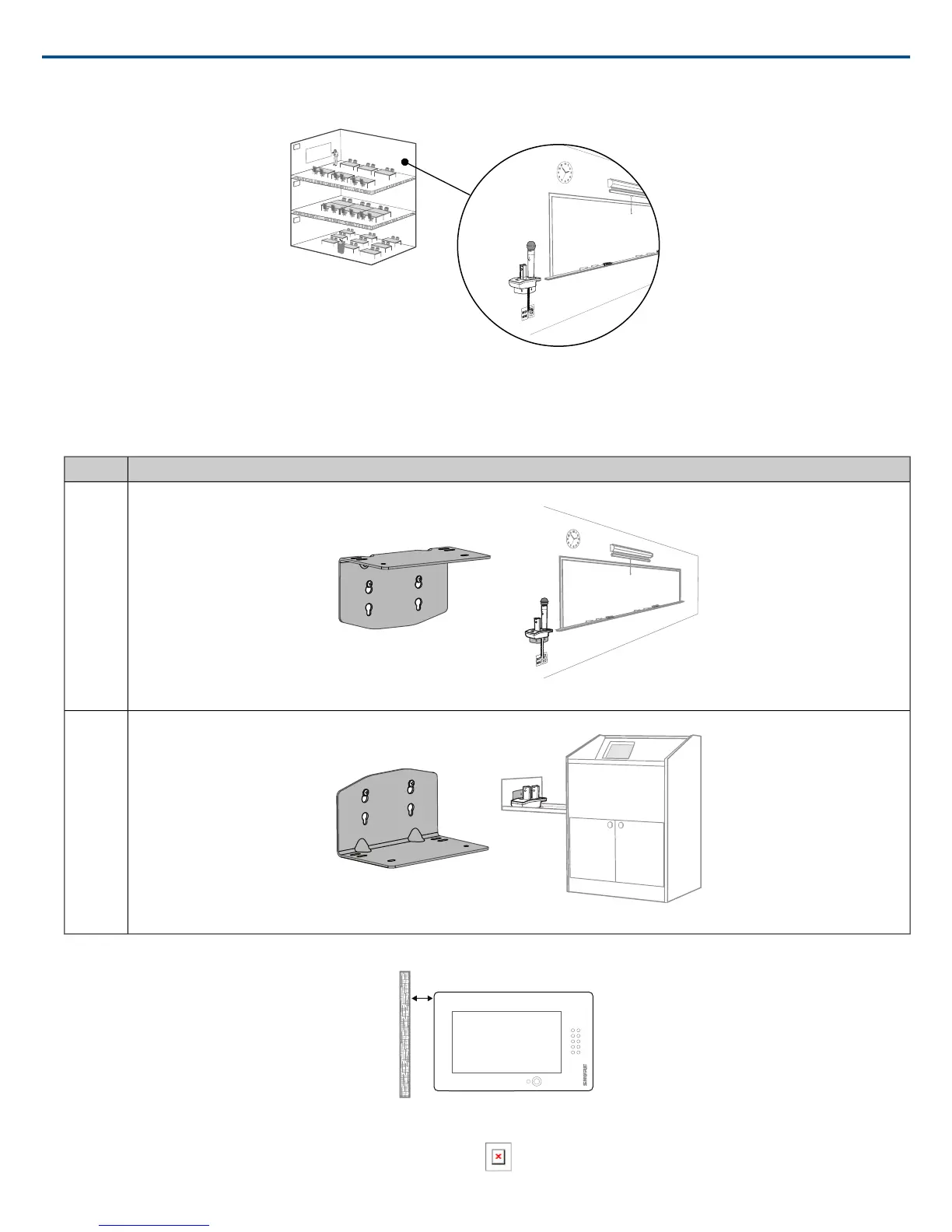

NCS2 Secures to a Classroom Wall
Tip: Paint the mount to match the wall for a less obtrusive installation.
Installation
1. Determine the orientation and placement of the mount.
OrientationPlacement
12
11
10
1
2
4
8
57
6
9 3
Wall
Drawer or
tray
2. Leave room around the mount for cabling to the charging station.
>40 mm [1.57”]
3. Attach the mount to the wall. Use one set of screw holes depending on the orientation of the mount.
Mount Screw Holes
Shure IncorporatedMXW
2017/05/1720/72
