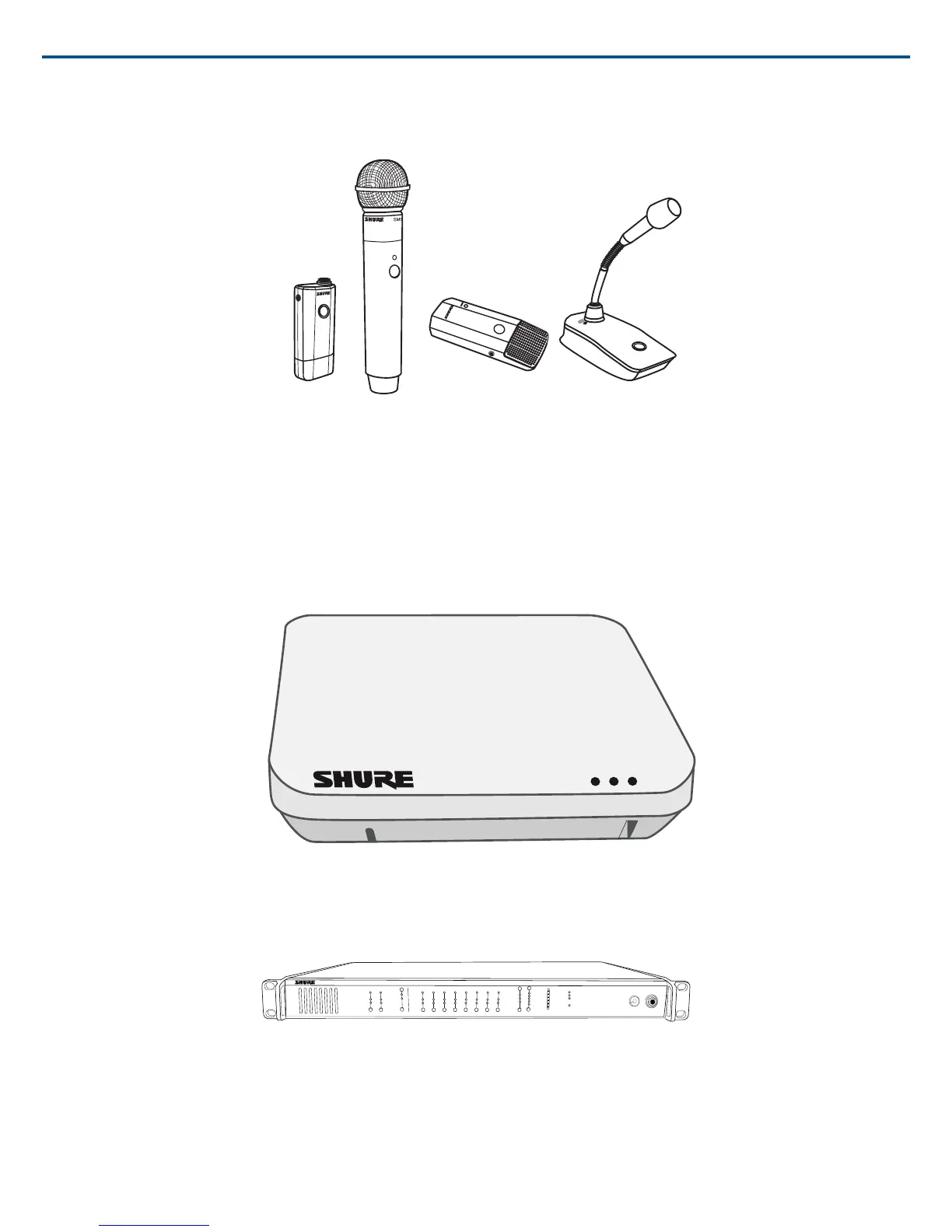

The MXW1, MXW6, and MXW8 microphones include a headphone output for monitoring audio, such as a translation channel.
Access Point Transceiver (MXWAPT2, MXWAPT4, MXWAPT8)
The Access Point Transceiver (2, 4 and 8 channel units) mounts to a wall or ceiling to manage encrypted, wireless audio connections with microphones. As a
system hub, it transports digital audio between the wireless microphones and other Dante devices on the same network. The APT includes a webserver that
hosts the MXW System control software, used for monitoring, configuration, and remote control of the system.
Audio Network Interface (MXWANI4, MXWANI8)
The Audio Network Interface (4 and 8 channel) is a Dante network device that provides analog audio input and outputs for the MXW system. It has a 4-port Gi-
gabit Ethernet switch that enables the connection of an MXW access point, a computer and up to two MXW networked charging stations.
lockout
power
ethernet
network audio
push to solo | hold to mute
-9
-18
-24
-36
-48
-60
0
-9
-12
-18
-24
0
aux
mic
adjust
line
sig/clip
mute
INPUT
A
sig/clip
mute
OUTPUT
HEADPHONE
Audio Network Interface
MICROFLEX WIRELESS
B
1
2
3
4
5
6
7
8
line
aux
Networked Charging Station (MXWNCS2, MXWNCS4, MXWNCS8)
The Networked Charging Station (2, 4 and 8 slot varieties) is capable of simultaneous charging MXW microphones. It also links microphones to access point
channels and networks battery statistics to the control software.
Note: The MXWNCS2 does not work with the MXW8 gooseneck microphones.
