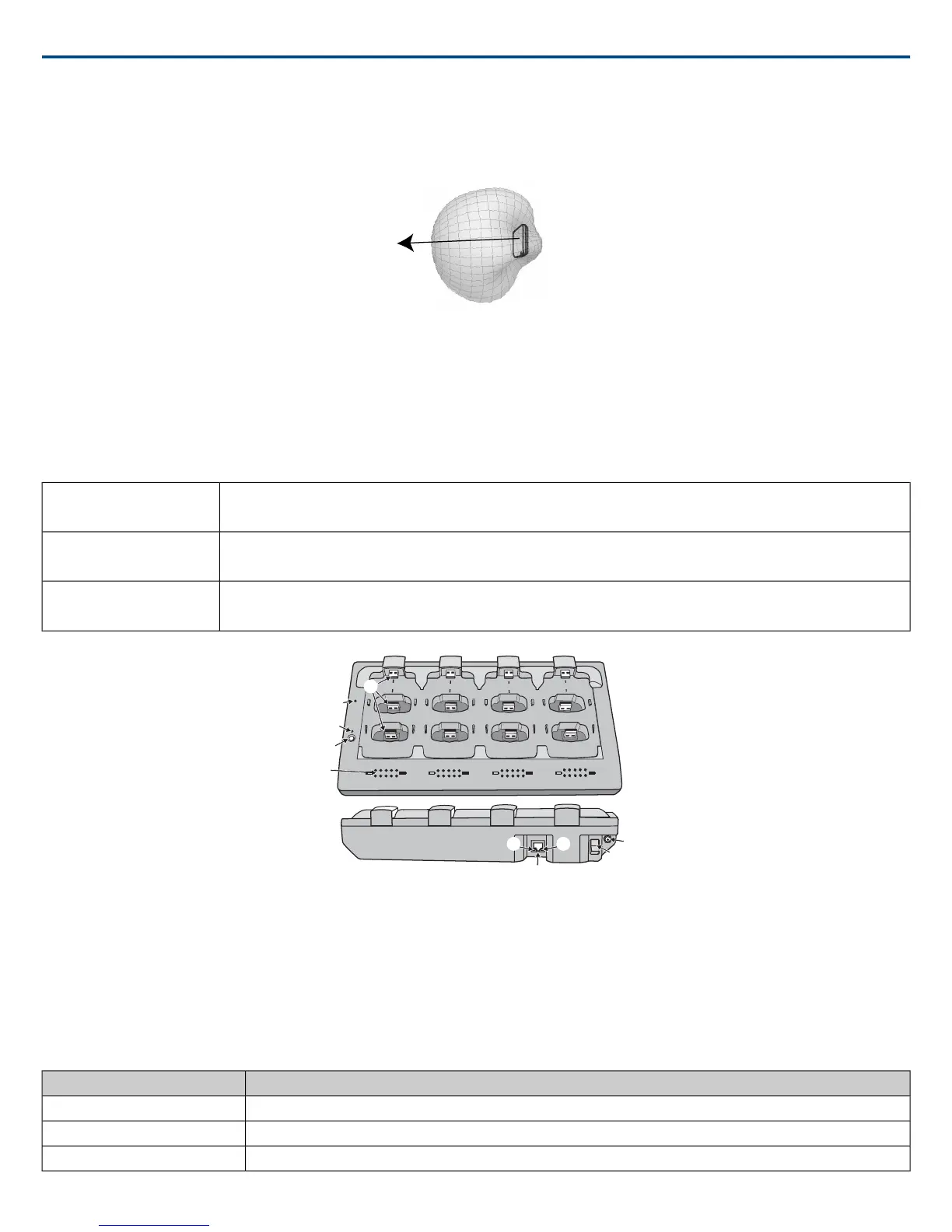

Directional Antennas
The access point contains multiple directional antennas to provide steady, reliable wireless communication with the microphones. It sends and receives the RF
signal in a cardioid pattern with the greatest sensitivity toward the face of the device. Always aim this side toward the microphone coverage area.
Cardioid RF Pattern
Networked Charger (NCS)
The MXW networked charging station enables battery charging and channel linking from a single location. When a charger is associated to a group, its channel
slots are mapped to access point audio channels. Microphones can then be placed in the slots to Link to these channels.
Any microphone can recharge in any NCS, regardless of Group association or network connection. Caution: When the Link button on an associated charger
is pressed, all microphones in the charger will be mapped to channels on an access point. This will override any previously Linked microphones on those
channels.
•Accepts eight boundary, bodypack, or handheld microphones
•or four gooseneck bases
MXWNCS8
•Accepts four boundary, bodypack, or handheld microphones
•or two gooseneck bases
MXWNCS4
•Accepts two boundary, bodypack, or handheld microphones.
•MXW8 Gooseneck bases are not supported on this charger
MXWNCS2
① Charging Slots (USB 3.0 Type A)
Recharge and link microphones by connecting them to the USB slots on the charger. When the charger is associated to a group, the slots are mapped to access
point channels (See Audio Channel Assignment for details).
Note: Any microphone can charge in any charger, regardless of Group association or network connection.
② Power LED
Illuminates green when the unit is powered on.
③ Microphone Link LED
Indicates the status of the Linking procedure:
IndicatorColor
No Link has been initiated.Off (default)
Link procedure is in process.Flashing Green
Microphones have been successfully linked to channels.Green
Shure IncorporatedMXW
9/722017/05/17
