No. of multiple readings 1 to 99
1)
Reading interval: The time window generated internally by the reading pulse for code detection and evalu‐
ation
12.3 Interfaces
Table 15: CLV61x Dual Port: technical data for interfaces
Ethernet (10/100 MBit/s) Host interface:
•
PROFINET device function
•
Protocols: PROFINET, Conformance Class B and Ethernet
TCP/IP
•
2-port Ethernet in accordance with IEEE 802.3 (100 Mbit/s,
full-duplex transmission, 2-port switch, auto-crossover)
•
Maximum data length limited to 4,000 bytes by communica‐
tion mode (fragmentation protocol).
AUX interface: configuration or diagnostics
USB
1)
AUX interface (USB 2.0) for configuration or diagnostics. Type-
dependent, identifier see "Type code", page 13
Digital switching inputs 1 x software controlled via PROFINET control bits
1 x, type-dependent, identifier see "Type code", page 13
Digital switching outputs 4 x software controlled via PROFINET control bits

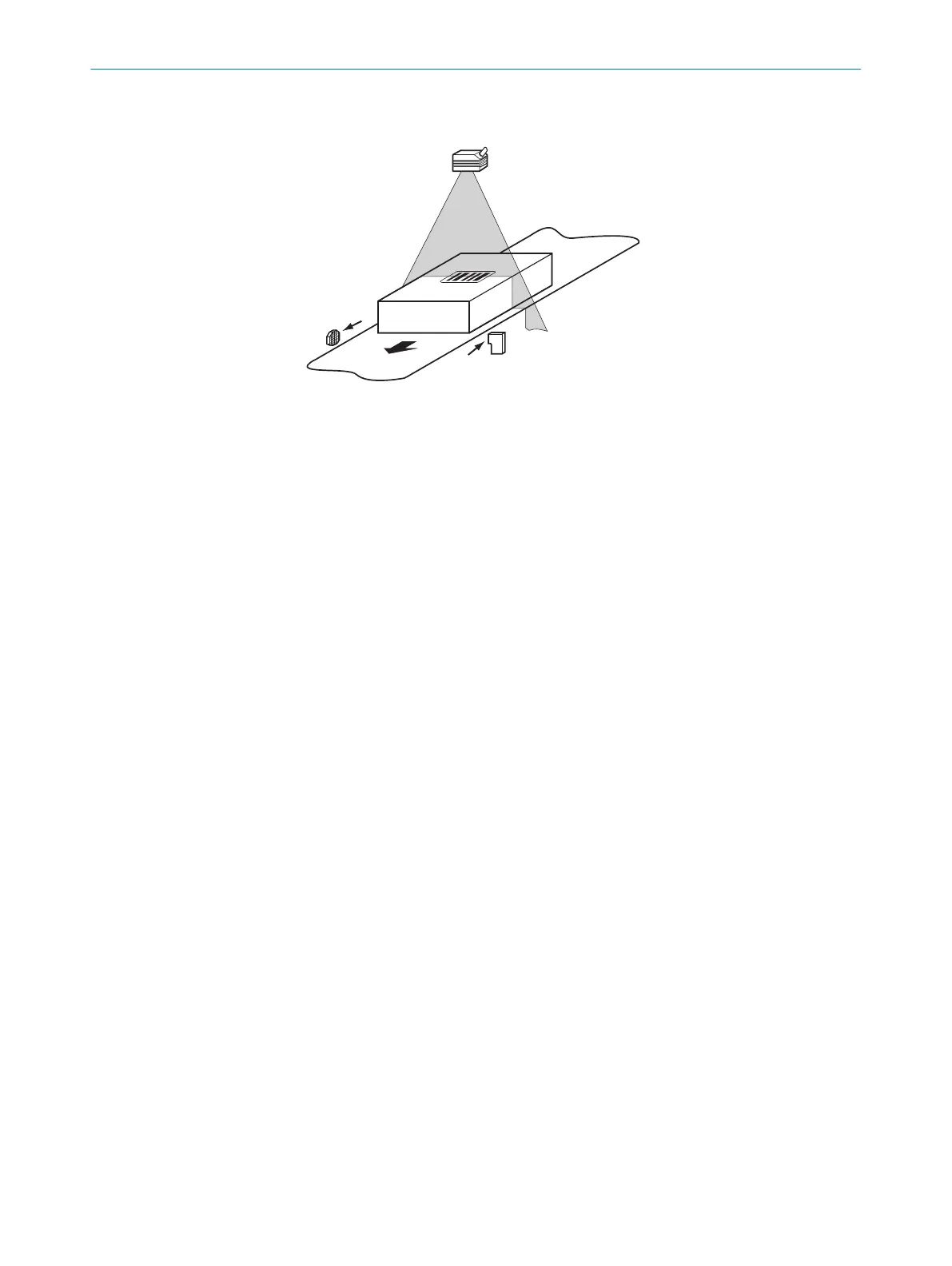

Reading pulse
•
Fieldbus input, free, auto pulse, command (data interface)
•
Switching input, type-dependent, identifier see "Type code",
page 13
Optical indicators 1 x RGB-LED multi-color, with signal color allocation for events
4 x LED, for PROFINET
Acoustic indicators ‒
Service function Backup of parameterization data (parameter cloning) to a location
outside the device memory:
Externally by inserting optional microSD memory card into the
device. Type-dependent, identifier see "Type code", page 13
Configuration SOPAS ET configuration software, commands, GSD parameteriza‐
tion
1)
Service interface, for temporary use only.
12.4 Mechanics/electronics
Table 16: Technical data on mechanics/electronics
Electrical connection Swivel connector with:
■
2 x PROFINET connection (female connector, M12, 4-pin, D-
coded)
■
Cable (0.9 m), type-dependent with POWER connection (male
connector, M12, 4-pin, A-coded) or with POWER + trigger input
connection (male connector, M12, 5-pin, A-coded). Code see
"Type code", page 13
1 x USB connection
1)
, type-dependent, identifier see "Type code",
page 13
Supply voltage V
s
Devices without heating: DC 10 V ... 30 V
Devices with heating: DC 18 V ... 30 V
LPS or NEC Class 2
Reverse polarity protected
Power consumption
2)
Devices without heating: Typically 5 W
Devices with heating: Max. 15 W
12 TECHNICAL DATA
56
O P E R A T I N G I N S T R U C T I O N S | CLV61x DualPort (PROFINET) 8017842/ZOK7/2019-02-01 | SICK
Subject to change without notice
