SICK CLV61 DualPort Series - 3 Product Description; Product ID

3 Product description
3.1 Product ID
3.1.1 Type label
The type label gives information for identification of the device. An existing UL certifica‐
tion can be found on the type label.
1240 0001
S/N:
DC 10...30V 2.8W
1
2
3
4
5
Manufactured:
D-79276 Reute
Made in Germany
λ = 655nm
Pmax=1.5mW
P<1.0mW average
Pulse duration <300µs
Imax=700mA
P/N: 1057125
CLV610-C000
MAC
6

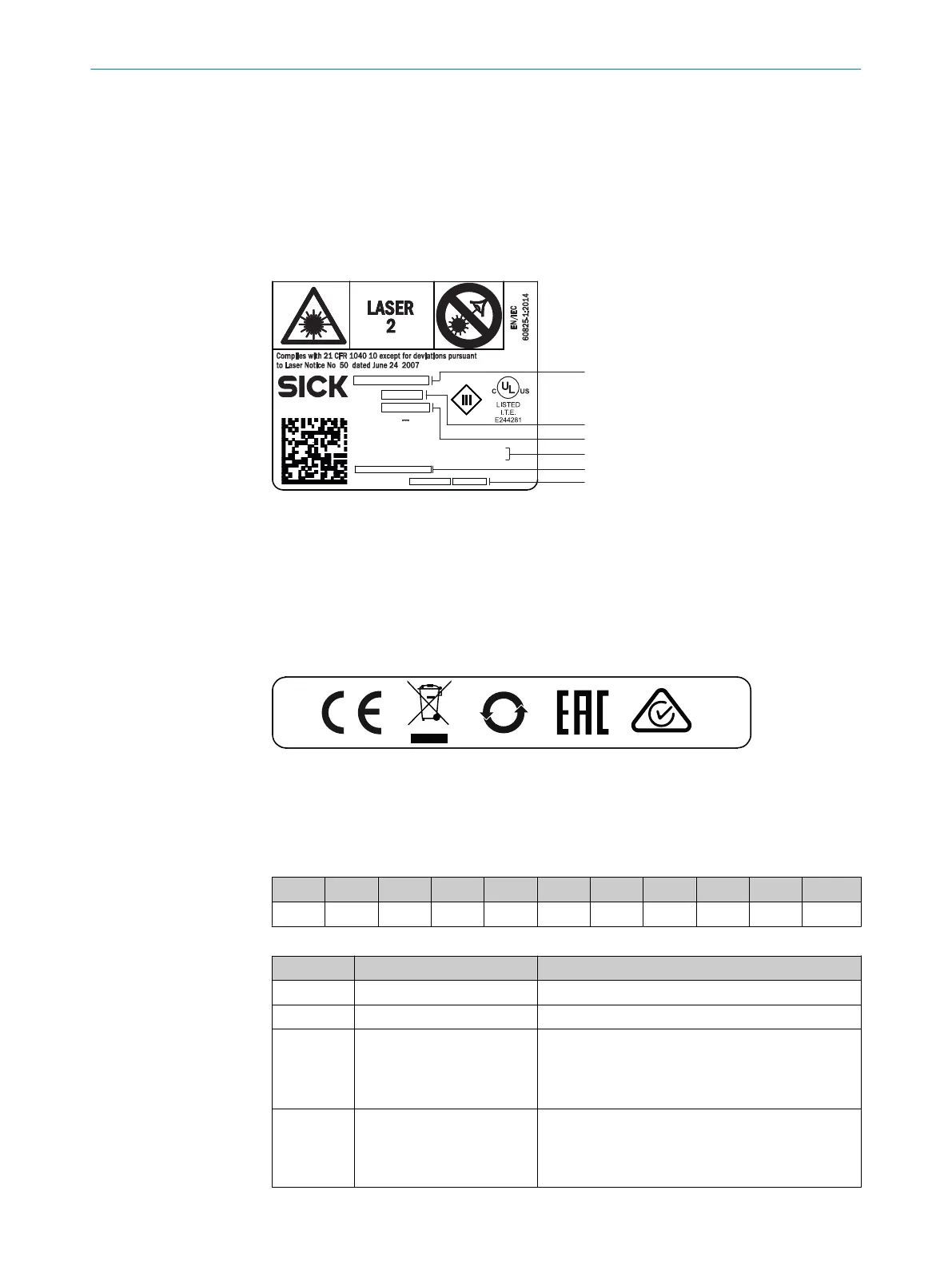

Figure 3: Type label design for the device, illustration may differ from actual type label
1
Type designation
2
Part number
3
Serial number
4
Laser output data
5
MAC address, if Ethernet interface is available
6
Date of manufacture
25
3.1.2 Type code
The devices of the CLV61x product subfamily are classified according to the following
type code:
CLVxyz-abcdef
CLV x y z ‒ a b c d e f
1 2 3 4 5 6 7 8 9 10
Table 2: Type code
Position Description Characteristic
1 Code reader, V-principle ‒
2 – 3 Product family 61: CLV61x
4 Working range 0: Mid range
2: Short range
5: Long range
8: Long range
5 Performance C: CAN
D: Dual Port PROFINET
F: Fieldbus (Dual Port) over external fieldbus mod‐
ule CDF600-2
