Pin Signal Function Wire color
5 – Not connected –
14.4.4 “Power/Switching input” connection to customer-specific connection equipment or control cabinet
Adapter cable
Part no. 2095618 (5 m), unshielded, suitable for drag chain, deep-freeze compatible
For CLV61x Dual Port (CLV61x-Dx52x), M12, 5-pin
Ambient temperature range:
For mobile installation: –25 °C to +80 °C, for fixed installation: –40 °C to +80 °C

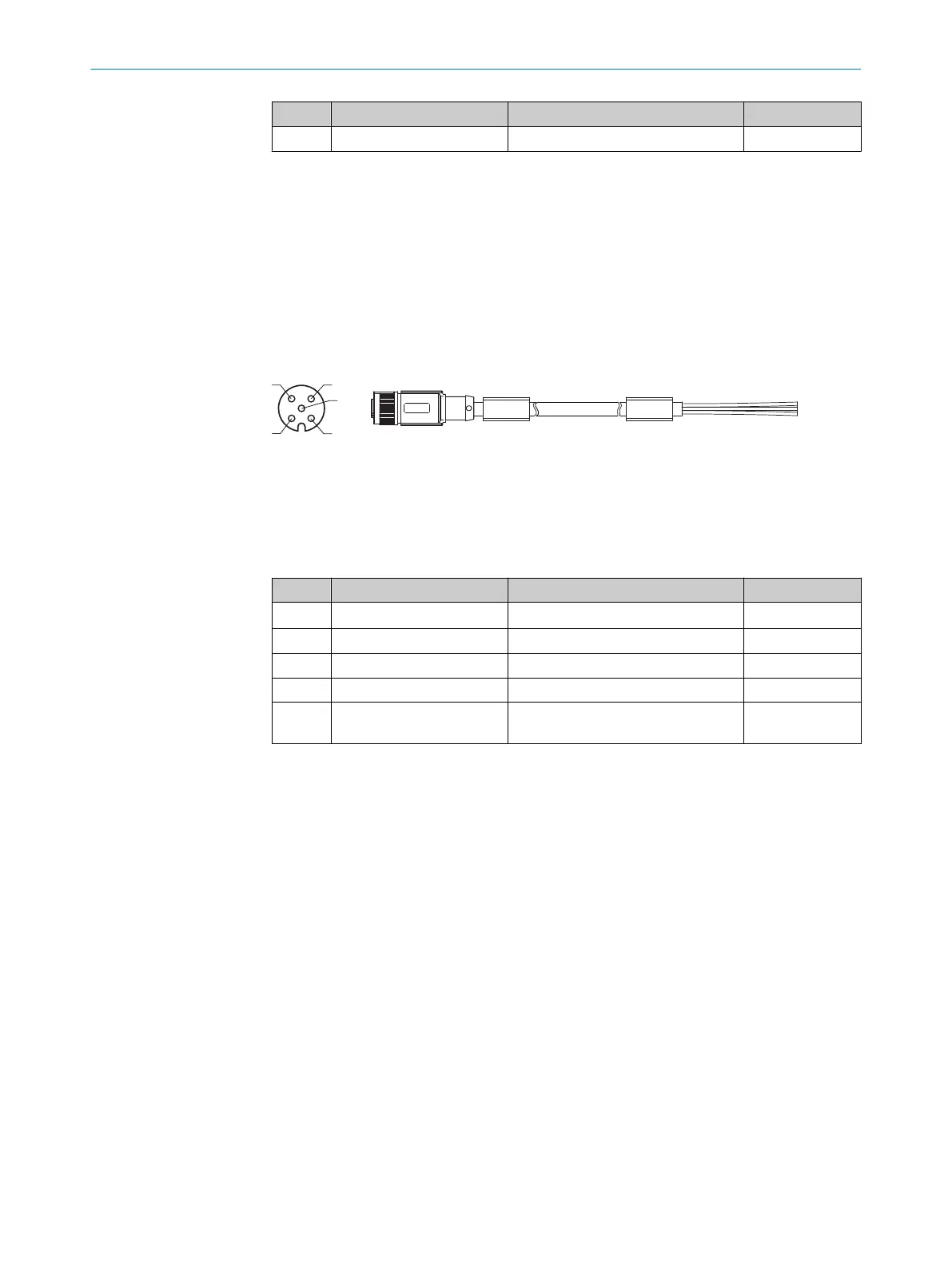

Figure 36: Adapter cable, part no. 2095618 (5 m)
1
Female connector, M12, 5-pin, A-coded (view from front)
2
Illustration may differ
Table 22: Signal assignment of adapter cable with open end
Pin Signal Function Wire color
1 V
S
Supply voltage Brown
2 Reserved (Do not use.) White
3 GND Ground Blue
4 Reserved (Do not use.) Black
5 Sensor 1 Digital switching input for external
reading cycle
Gray
14.5 Notes on PROFINET
14.5.1 Basic information on PROFINET
SICK recommends familiarizing yourself with the basic information described in the
planning guidelines and commissioning guidelines of the PI user organization
(PROFIBUS & PROFINET International, homepage: www.profinet.com).
These guidelines can be found in the "Downloads" area at:
•
www.profibus.com
14.5.2 General notes on PROFINET wiring
The signal lines must be wrapped in pairs (twisted pairs) and comply with at least CAT5
in line with ISO/IEC 11801 Edition 2.0. Class D. The signal lines must also be shielded
and grounded.
SICK recommends using components certified by PROFINET.
More detailed information can be found in the “PROFINET Cabling and Interconnection
Technology” Installation Guide.
You can find the document in the “Downloads” area at:
•
www.profibus.com
APPENDIX 14
8017842/ZOK7/2019-02-01 | SICK O P E R A T I N G I N S T R U C T I O N S | CLV61x DualPort (PROFINET)
65
Subject to change without notice
