3.2 Product characteristics
3.2.1 Device view
1
42
ã
â
á
ß
65.3 (2.57)
38 (1.50)
Ready
G Read
N Read
HW Err
UserDef1
SF
BF
P1 LNK/ACT
P2 LNK/ACT
P1 P2
50°
61 (2.40)
96 (3.78)
(15
(0.59))
1
2
3
4
41.7
(1.64)
6.2 (0.24)
19.5 (0.77)
43.7
(1.72)
5
3
85 (3.35)
9 (0.35)
22
(0.87)
35.3
(1.39)
(25.7
(1.01))
65.3
(2.57)
(30.6
(1.20))
10 (0.39)
5.7 (0.22)
13.7 (0.54)
19.5 (0.77)
1
4
2
3
5
6
7
8
9
à
(15
(0.59))
15
(0.59)
(15
(0.59))
10 (0.39)
5.7 (0.22)
22.5
(0.89)
22.5
(0.89)

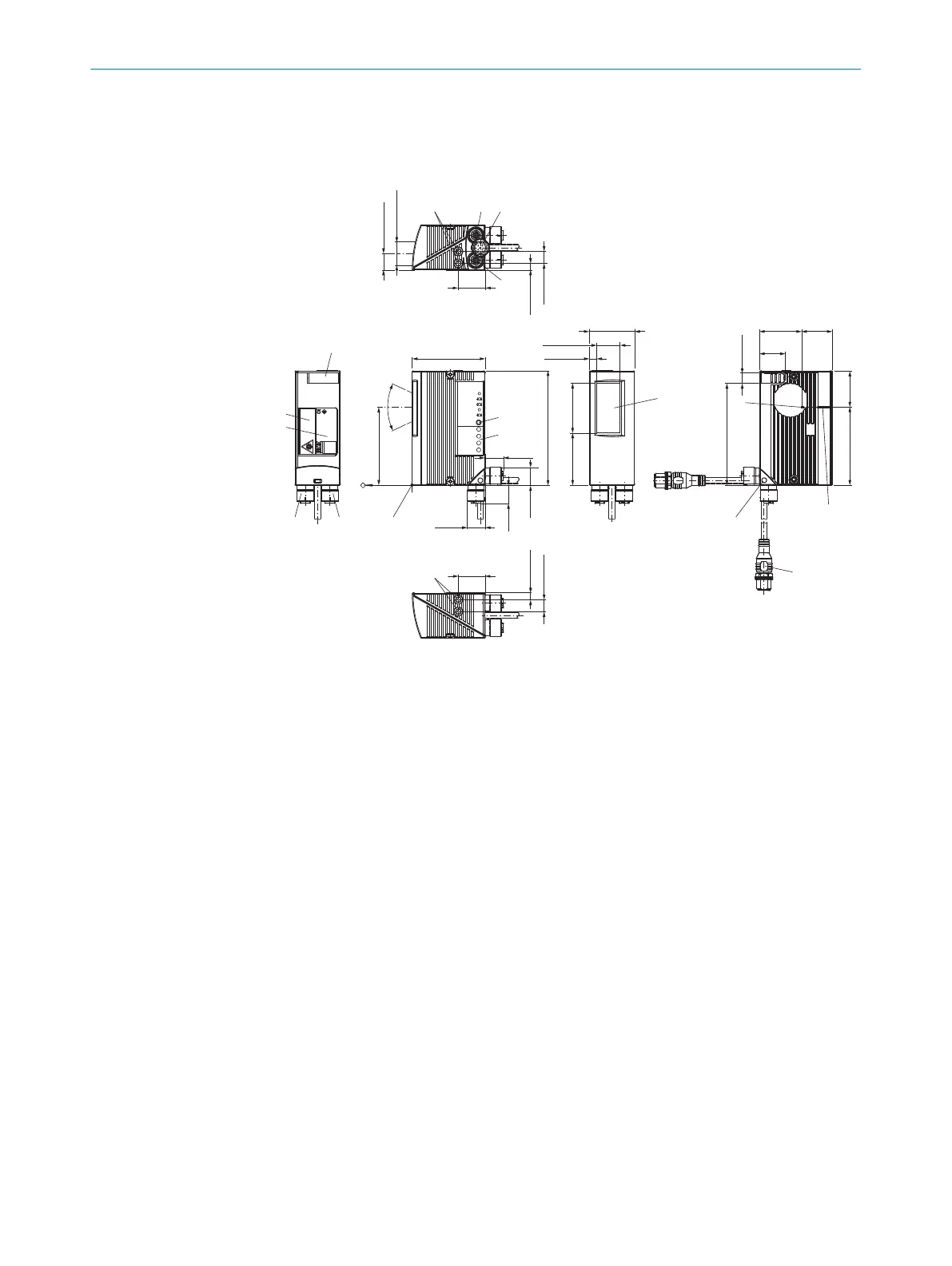

Figure 4: CLV61x Dual Port: design and device dimensions with front reading window (in mm or
inches)
1
M5 blind tapped holes, 5 mm deep (2 x), for mounting the device
2
P1 (PROFINET port 1) connection, female connector, M12, 4-pin, D-coded
3
Cable (0.9 m), type-dependent with POWER connection (male connector, M12, 4-pin, A-
coded) or with POWER + trigger input connection (male connector, M12, 5-pin, A-coded)
4
P2 (PROFINET port 2) connection, M12, female connector, 4-pin, D-coded
5
Internal impact point: Rotation point of the variable direction laser beam
6
Central position of the deflected laser beam in the V-shaped aperture angle
7
Swivel connector unit (max 180° rotation angle from end position to end position)
8
Reading window, orientation on front
9
RGB LED (1 x), status indicator with signal color allocation for events
ß
LED (4 x), status indicator for PROFINET
à
Reference point for reading distance from device (housing edge) to object
á
Type label
â
Laser warning label
ã
Cover for USB connection
1)
(female connector, 4-pin, Micro-B type) or for memory card
shaft (microSD), type-dependent
1)
Service interface, for temporary use only
