8 Operation
8.1 Operating and status indicators
8.1.1 Operator interface
The device can be configured according to application in the following manner:
■
Locally at the device with the SOPAS ET configuration software. Protection of the
parameter set as a configuration file on the PC in SOPAS ET. Access to the device
via Aux interface (USB or Ethernet).
■
As an alternative to the SOPAS ET configuration software, command strings are
available, upon which the operator interface of the configuration software is also
based. These are also for the triggering of device functions (e.g. reading).
■
Centrally by the PROFINET controller via PROFINET using the GSD configuration.
Protection of the parameter set as a configuration file in the PROFINET controller.
Each time the PROFINET is restarted, the device is reconfigured.
NOTE
The procedure for incorporating the device into the PROFINET controller (PLC) and for
central parameterization using the PROFINET controller is described in the supplemen‐
tary information document “Bar code scanner CLV61x Dual Port (PROFINET)” in English
(part no. 8017978) and German (part no. 8017977).
The supplementary information can be found under “Documentation” on the online
product page at:
•
www.sick.com/CLV61x_Dual_Port
The SOPAS ET configuration software is used for device diagnostics in case of a fault.
In normal operation, the device operates fully automatically.
8.1.2 Optical status indicators on the device
O
Ö
Ö
Ready
G Read
N Read
HW Err
UserDef1
O
Ö
SF
P1 LNK/ACT
P2 LNK/ACT
BF
1
2
3

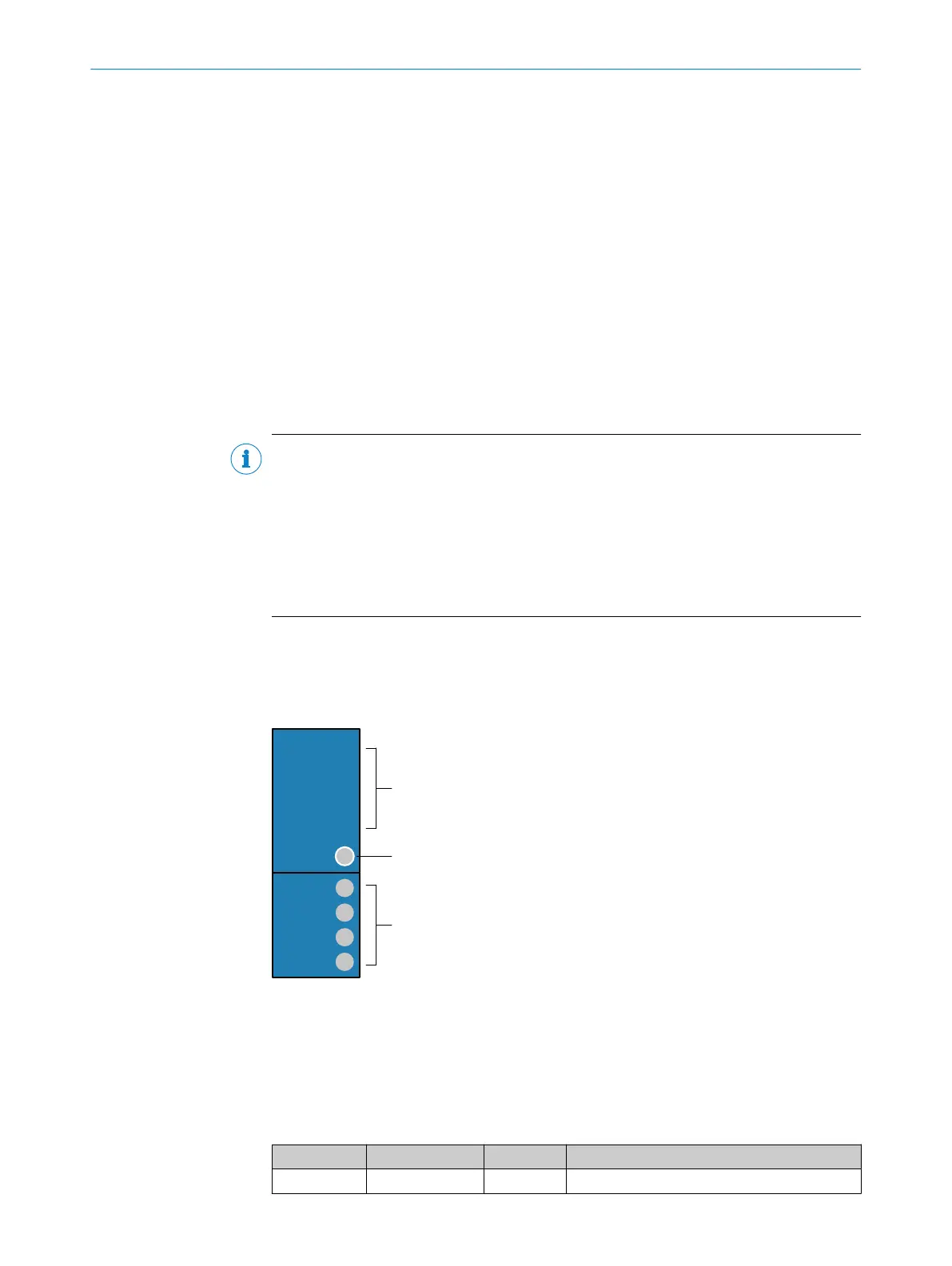

Figure 27: LEDs on the housing
1
Signal color allocation for status and events, displayed by sensor LED
2
Sensor LED (RGB), 1 x
3
Network LED for communication via PROFINET, 4 x
Sensor LED
Table 9: Display behavior of the sensor LED
Color Display LED Status
– – Off Device without supply voltage
OPERATION 8
