14 Appendix
14.1 EU declaration of conformity / Certificates
The EU declaration of conformity and other certificates can be downloaded from the
Internet at:
•
www.sick.com/CLV61x_Dual_Port
14.2 Certification in accordance with UL60950
The devices in the CLV61x, CLV61x Dual Port, CLV62x, CLV63x, CLV64x, CLV65x series
are certified to UL60950-1; the UL file number is E244281-A6. The devices must be
supplied by LPS or Class 2 power supply units in order to ensure UL-compliant opera‐
tion.
UL certification is only valid with corresponding device identification on the type label of
the respective device, see "Type label", page 13.
•
Laser power and laser warning notes, see "Operational safety and particular haz‐
ards", page 10.
•
IP65 enclosure rating of the devices not checked by UL.
14.3 Dimensional drawings (electronic)
Current dimensional drawings in various electronic formats can be downloaded online:
•
www.sick.com/CLV61x_Dual_Port
14.4 Signal assignment of cables with open cable end at one end
14.4.1 PROFINET connection
Adapter cable, straight male connector
Part no. 6048247 (2 m), part no. 6048248 (5 m), part no. 6048249 (10 m), shielded
For CLV61x Dual Port PROFINET
ð
1
4 3
2
1 2

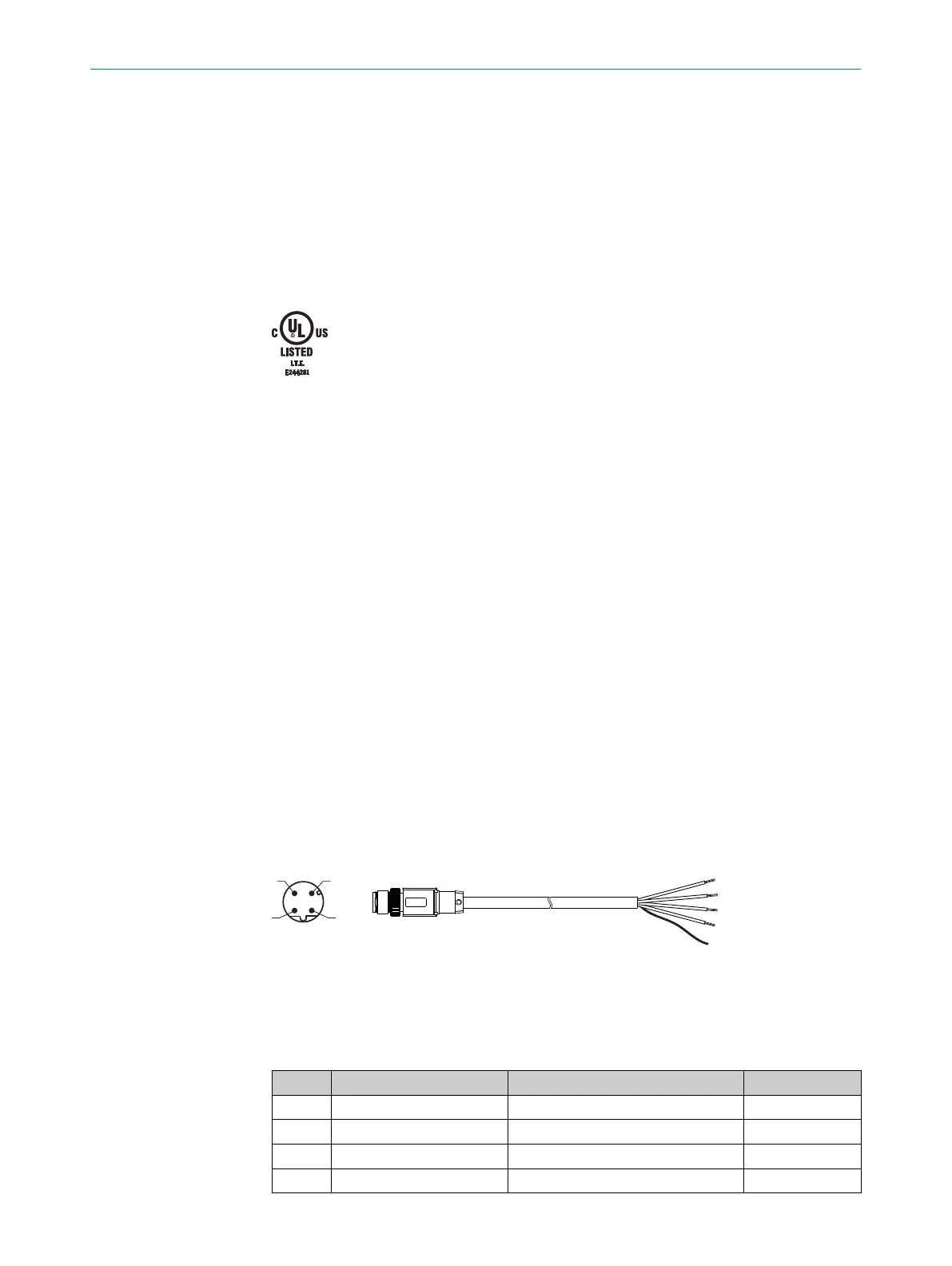

Figure 33: Adapter cable, e.g., part no. 6048247 (2 m)
1
Male connector, M12, 4-pin, straight, D-coded (front view)
2
Illustration may differ
Table 19: Signal assignment of adapter cable with open end
Pin Signal Function Wire color
1 TD+ (Ethernet) Sender+ Yellow
2 TD– (Ethernet) Sender– White
3 RD+ (Ethernet) Receiver+ Orange
4 RD– (Ethernet) Receiver– Blue
