14.4.2 PROFINET connection
Adapter cable, angled male connector
Part no. 6048256 (2 m), part no. 6048257 (5 m), part no. 6048258 (10 m), part no.
6048259 (25 m), shielded
For CLV61x Dual Port PROFINET

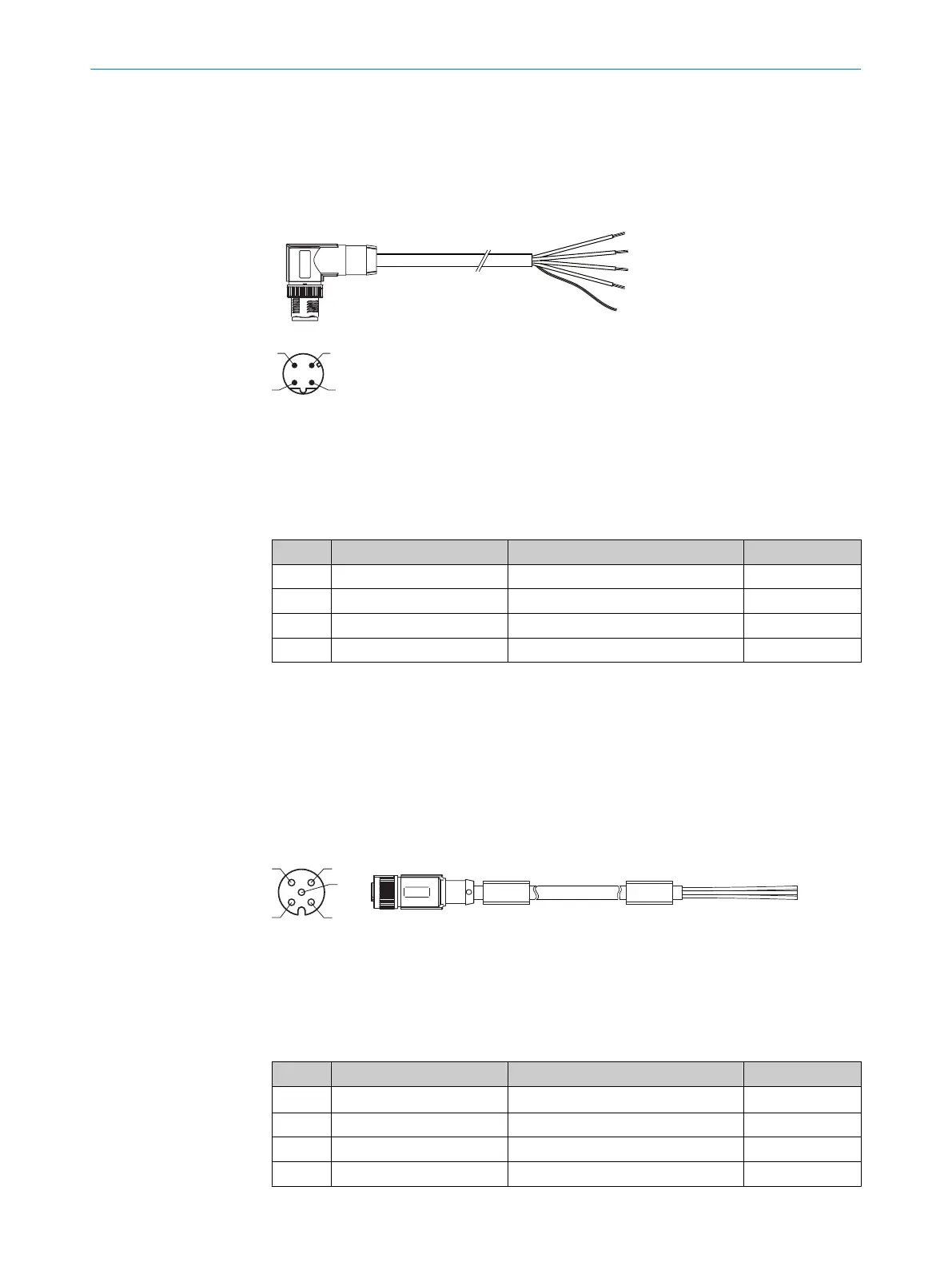

Figure 34: Adapter cable, e.g., part no. 6048256 (2 m)
1
Male connector, M12, 4-pin, angled at 90°, D-coded (front view)
2
Illustration may differ
Table 20: Signal assignment of adapter cable with open end
Pin Signal Function Wire color
1 TD+ (Ethernet) Sender+ Yellow
2 TD– (Ethernet) Sender– White
3 RD+ (Ethernet) Receiver+ Orange
4 RD– (Ethernet) Receiver– Blue
14.4.3 “Power” connection to customer-specific connection equipment or control cabinet
Adapter cable
Part no. 2095608 (5 m), unshielded, suitable for drag chain, deep-freeze compatible
For CLV61x Dual Port (CLV61x-Dx41x), M12, 4-pin
For mobile installation: –25 °C to +80 °C, for fixed installation: –40 °C to +80 °C
Figure 35: Adapter cable, part no. 2095608 (5 m)
1
Female connector, M12, 5-pin, A-coded (view from front)
2
Illustration may differ
Table 21: Signal assignment of adapter cable with open end
Pin Signal Function Wire color
1 V
S
Supply voltage Brown
2 Reserved (Do not use.) White
3 GND Ground Blue
4 Reserved (Do not use.) Black
14 APPENDIX
64
O P E R A T I N G I N S T R U C T I O N S | CLV61x DualPort (PROFINET) 8017842/ZOK7/2019-02-01 | SICK
Subject to change without notice
