CLV618: Long range
Reading distance in mm (inch) 2
Reading field height in mm (inch) 1
a
b
c
800
(31.5)
600
(23.62)
400
(15.75)
200
(7.87)
0
Resolution
3
a: 0.35 mm (13.8 mil)
c: 1.0 mm (39.4 mil)
b: 0.50 mm (19.7 mil)
–400
(–15.75)
–300
(–11.81)
–200
(–7.87)
–100
(–3.94)
100
(3.94)
200
(7.87)
300
(11.81)
400
(15.75)

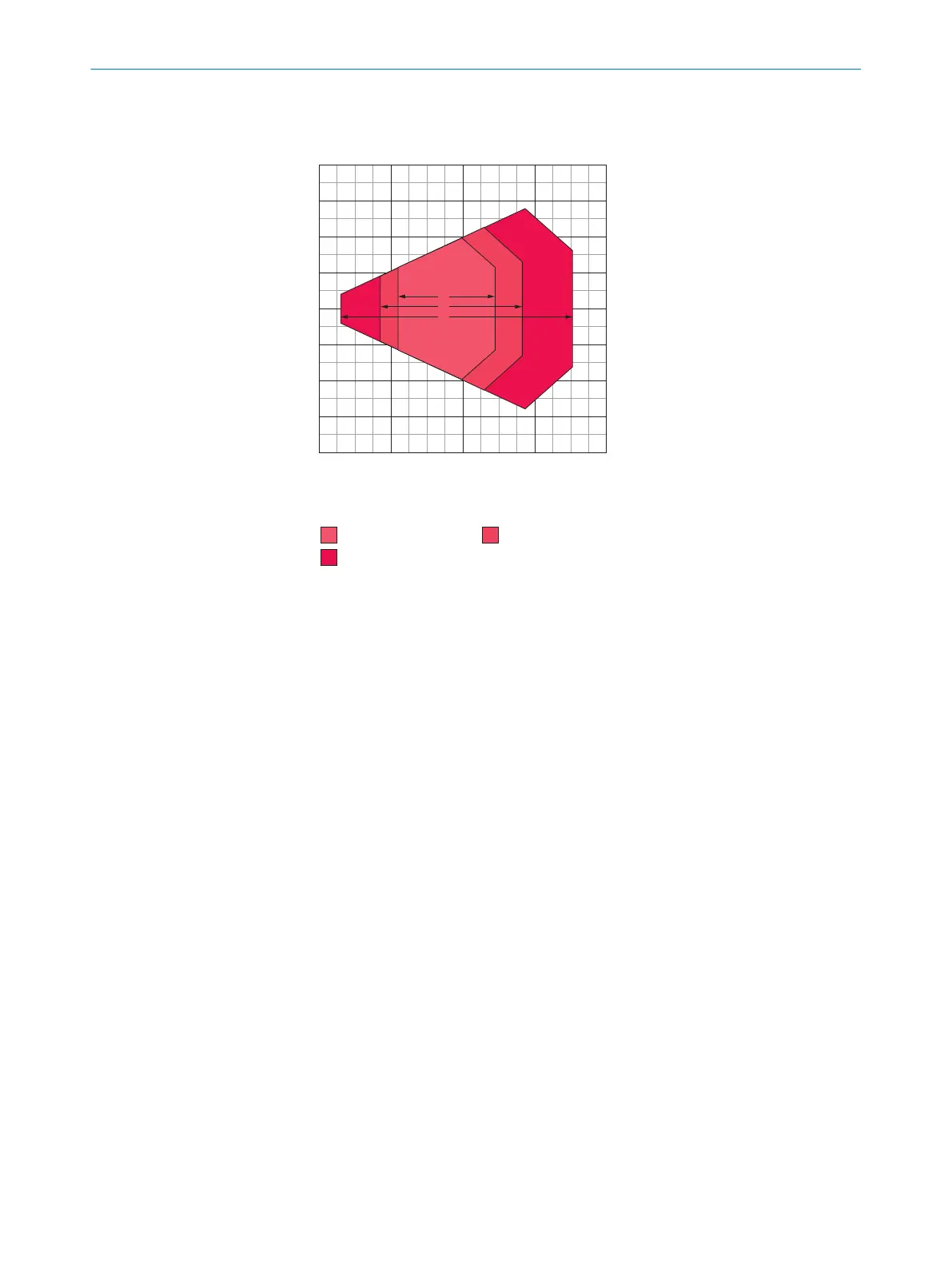

Figure 30: Reading field diagram: CLV618 with reading window on front
1
Reading field height in mm (inch)
2
Reading distance in mm (inch)
3
Resolution
