3.3 Type label
The type label gives information for identification of the device.
8
5
9
1
2
3
7
4
ß
6

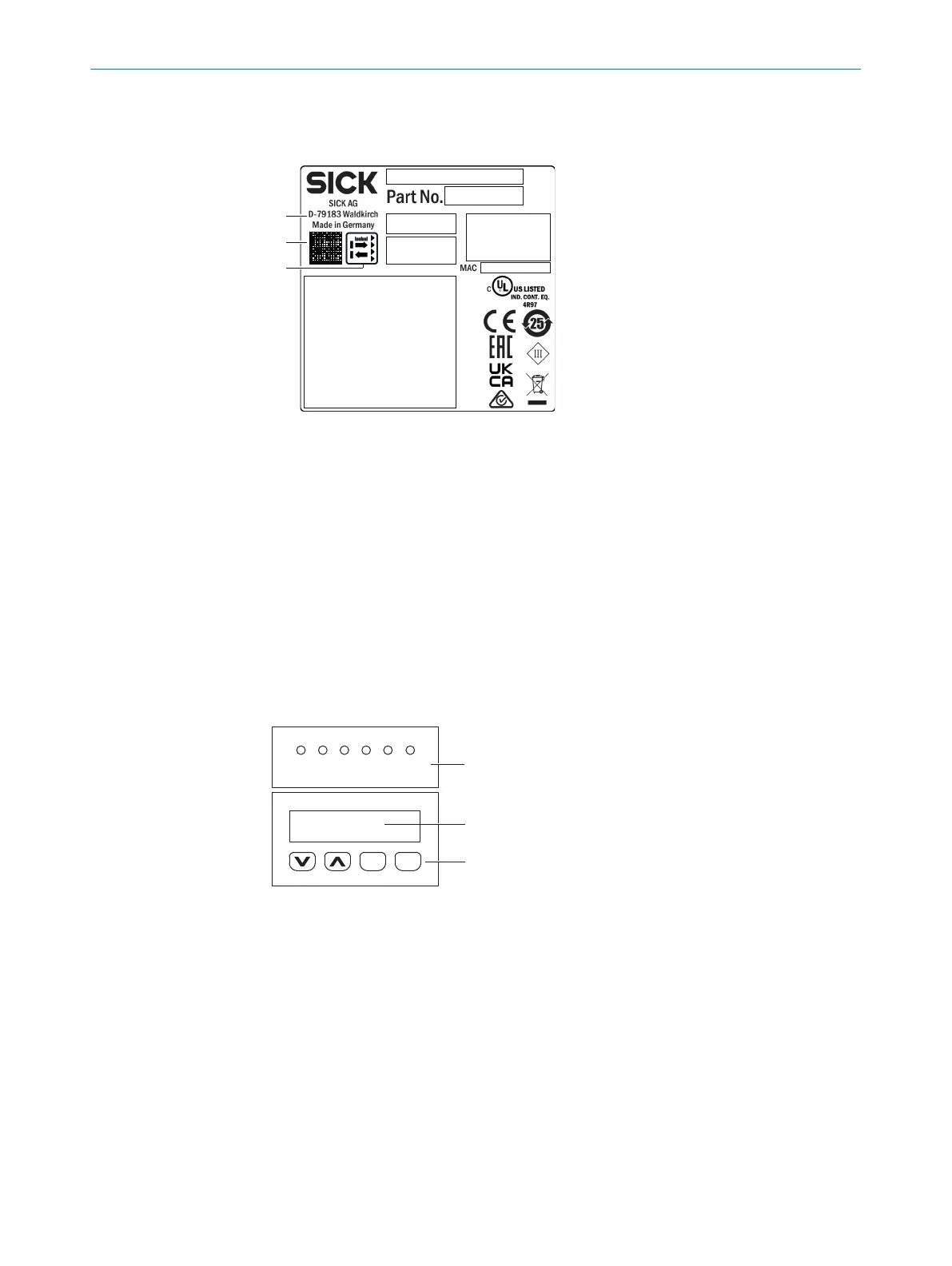

Figure 3: Type label
1
Type code
2
Part number
3
Electrical data and environmental data
4
MAC address
5
Pin assignment
6
Interface
7
Pictogram: Distance sensor reflector operation
8
2D code with part number and serial number
9
Manufacturer, place of manufacture
ß
Serial number, year and month of manufacture
3.4 Display and control elements
2
1
3
EscSet
PWR
MF1/2
LNK2 LNK1
BF
Profinet
SF
Figure 4: Display and control elements
1
LEDs
2
Display
3
Pushbuttons
3.4.1 LEDs
The status of the device and the status of all interfaces is displayed by LEDs in
accordance with the following table.
