S
et
E
s
c
<
<
ca. 1° … 3°
1
2
3
4

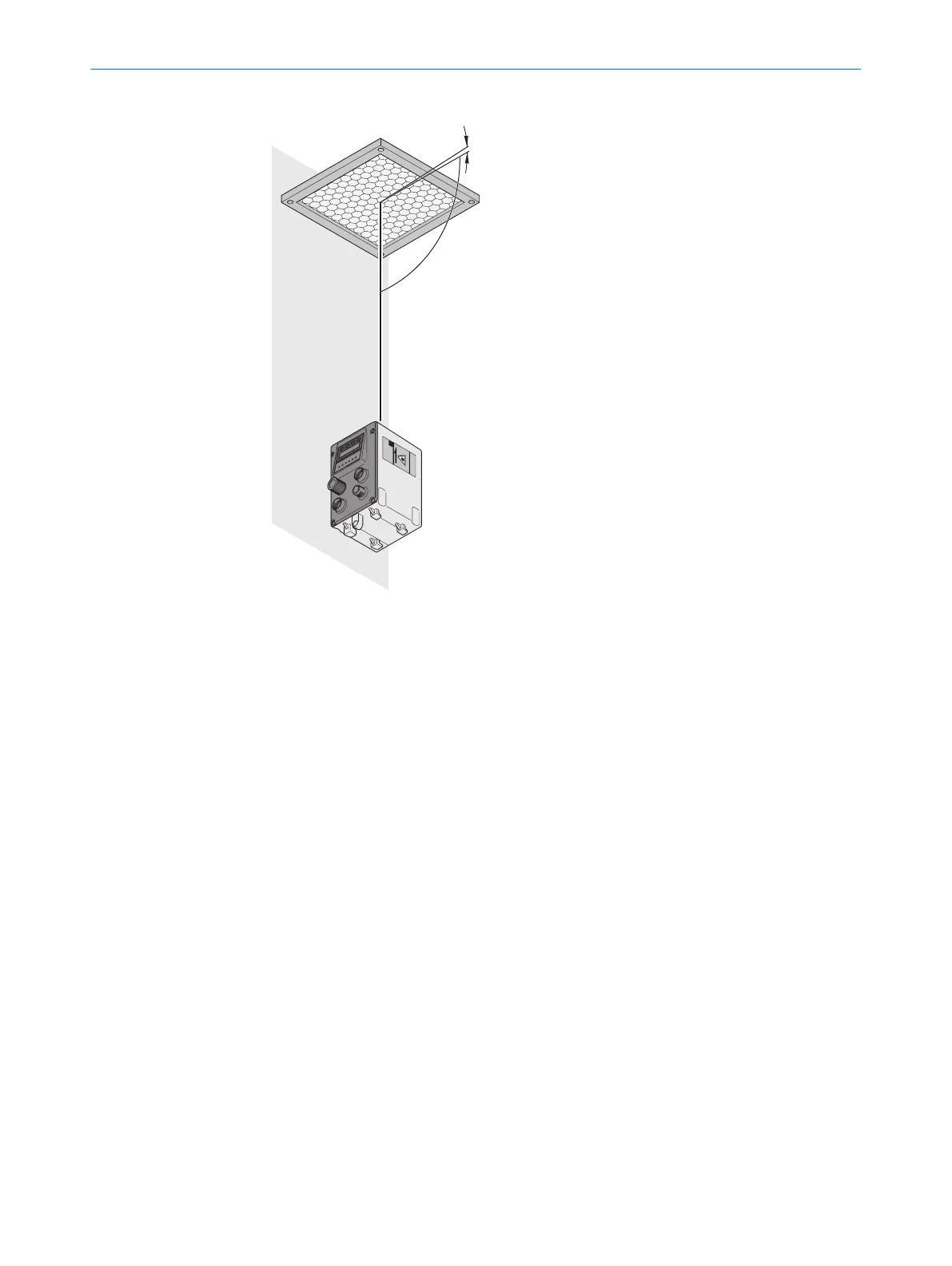

Figure 7: Reflector tilt for shiny surfaces and vertical stroke axis
1
Sensor
2
Shiny surface such as a masted automated storage and retrieval system
3
Reflector
4
Tilt of approx. 1° to 3°
5.4 Placement of multiple distance sensors
To mount several distance sensors side-by-side, you will need to maintain a minimum
distance when mounting. The minimum distance a of the optical axis depends on the
maximum travel distance s
max
. This applies to mounting with light beams in both the
same and opposite directions.
MOUNTING 5
