3 Function and use
3.1 Configuration
1 2 3 4
1 1
1 1
3
4
2
8
5
5
6
6
7

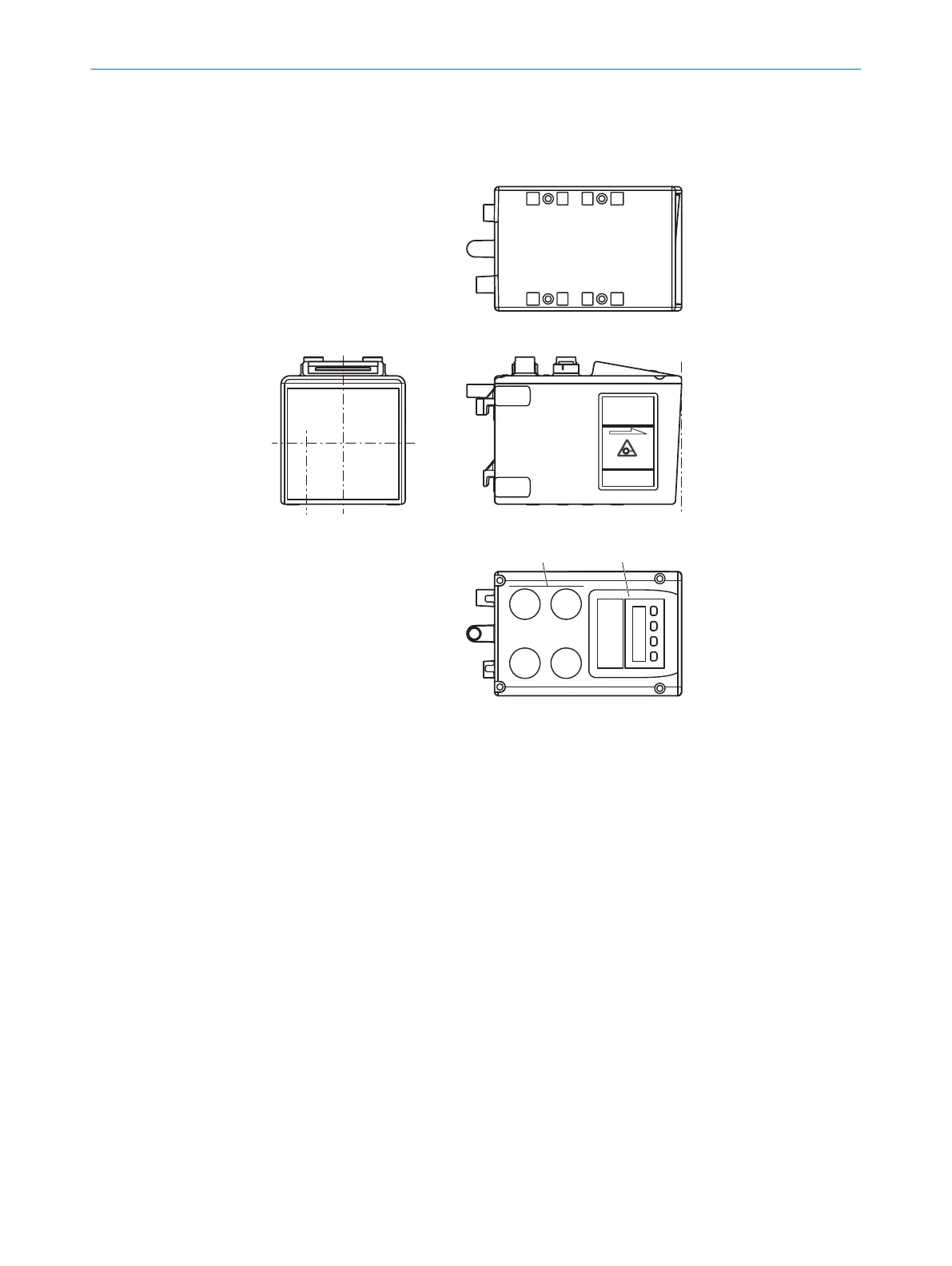

Figure 2: Distance sensor structure
1
M5 threaded mounting hole
2
Device zero point
3
Sender optical axis
4
Receiver optical axis
5
Hole for the star grip screw of the optional alignment bracket
6
Latch hook for alignment bracket
7
Electrical connection
8
Display and control elements
3.2 Function
The device consists of a laser, receiving optics and an integrated evaluation unit. The
laser emits a light beam which is reflected back to the receiving optics by the reflector.
The integrated evaluation unit determines the distance between the sensor and the
reflector using phase-correlated time-of-flight measurement.
For the measurement, either the reflector or the device can move in a linear fashion
along the laser beam.
The measured distance is transmitted via the data interface and can be used for
control purposes or in a position control loop, for example.
FUNCTION AND USE 3
