SICK PROFINET DL100 Pro - Ethernet Connection Diagram

Contact Identifier Wire color Description
1 L+ brown Supply voltage: +18 … +30 V DC
2 MF2 White Multifunctional output MF2, B-type
3 M Blue Supply voltage: 0 V
4 MF1 Black Multifunctional input and output MF1, B-type

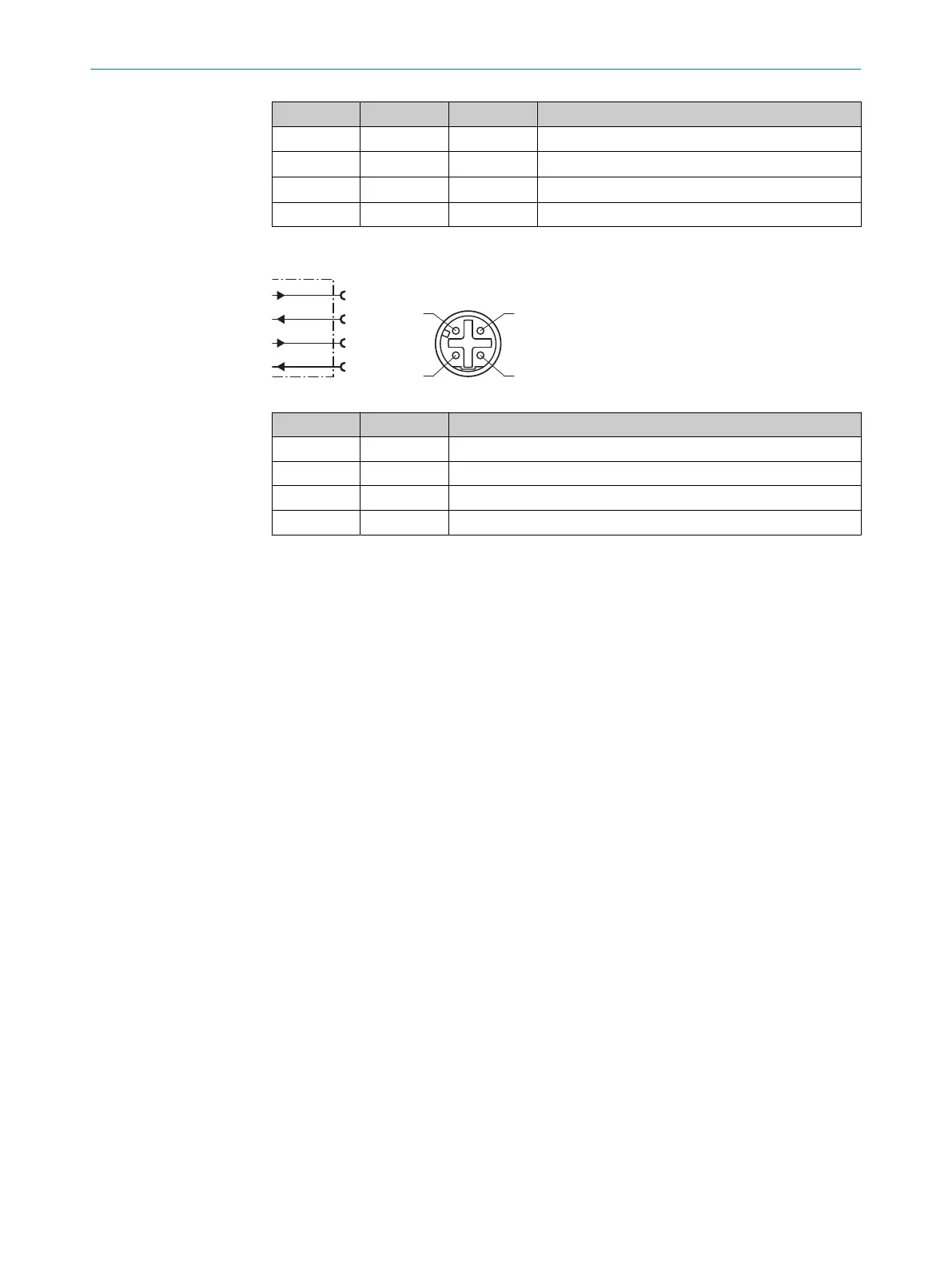

6.4.2 Ethernet connection diagram
Tx+
Rx+
Tx–
Rx–
1
2
4
3
3
2
4
1
Table 6: Ethernet connection diagram port 1 and port 2
Contact Marking Description
1 Tx+ Send data signal +
2 Rx+ Receive data signal +
3 Tx– Send data signal –
4 Rx– Receive data signal –
